A3PN030-Z2QNG48

The A3PN030-Z2QNG48 is a ProASIC3 nano Field Programmable Gate Array (FPGA) IC from Microchip Technology. It implements the ProASIC3 nano FPGA fabric and is offered as a low-power, flash-based device family according to the supplied user’s guide content.

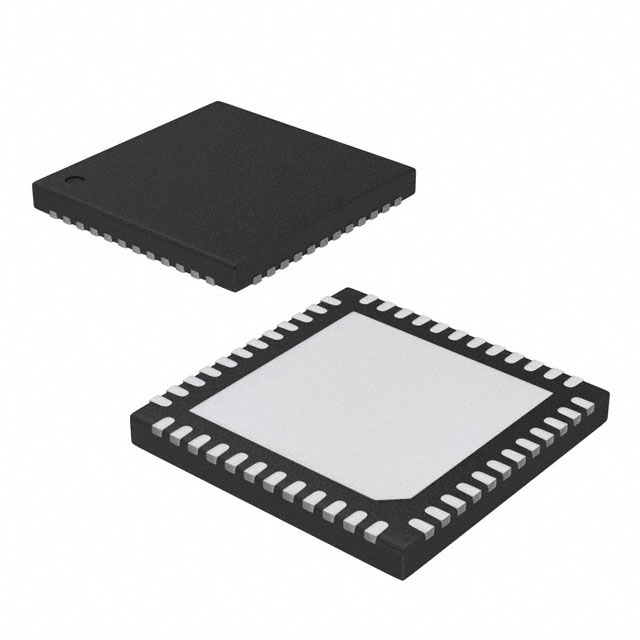

With 768 logic elements, 34 general-purpose I/O pins and a compact 48-VFQFN (6×6) exposed-pad package, this surface-mount FPGA targets designs that require small-footprint programmable logic with controlled supply and operating-temperature requirements.

Key Features

• Logic Capacity  768 logic elements (logic element cells) and approximately 30,000 gates provide a compact programmable logic resource for control, glue-logic, and custom interfaces.
• I/O  34 available I/O pins to support peripheral interfacing and board-level signal routing.
• Embedded Memory  Total RAM bits: 0 (no on-chip RAM).
• Power and Voltage  Specified core voltage range of 1.425 V to 1.575 V; device series documentation describes low-power flash device modes and power-management features.
• Package and Mounting  48-VFQFN exposed pad package, supplier device package 48-QFN (6×6), surface-mount mounting type—designed for compact PCB implementations and thermal conduction through the exposed pad.
• Operating Conditions  Commercial grade with an operating temperature range of −20 °C to 85 °C.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Embedded Control  Programmable logic for small embedded control tasks where compact logic capacity and low-power operation are required.
• I/O Bridging and Glue Logic  Implement custom interface translation and board-level glue logic using the device’s available I/O and logic elements.
• Portable and Space-Constrained Electronics  Compact 6×6 QFN package and exposed pad allow integration in designs with limited PCB area and thermal needs.

Unique Advantages

• Flash-based, low-power FPGA fabric  The ProASIC3 nano family documentation emphasizes low-power flash device modes, supporting lower static power states for energy-conscious designs.
• Compact package with thermal pad  48-VFQFN (6×6) exposed-pad footprint reduces board real estate and provides a thermal path for improved heat dissipation.
• Right-sized logic density  768 logic elements and ~30,000 gates deliver a balance of resources for control and interface tasks without excessive area or cost.
• Controlled supply requirements  A narrow core voltage range (1.425 V–1.575 V) simplifies power-supply design and helps ensure deterministic operating conditions.
• Commercial temperature rating  Rated for −20 °C to 85 °C operation to match a wide range of commercial embedded applications.
• RoHS compliant  Meets environmental compliance expectations for mainstream electronics manufacturing.

Why Choose A3PN030-Z2QNG48?

The A3PN030-Z2QNG48 combines the ProASIC3 nano FPGA fabric with a compact 48-VFQFN exposed-pad package and clearly specified electrical and thermal parameters. It is suitable for designs that need a modest amount of programmable logic, a moderate number of I/Os, and low-power operational options within a commercial temperature range.

This part is appropriate for engineers and procurement teams seeking a small-footprint, flash-based FPGA option from Microchip Technology that simplifies board integration through a standardized QFN package and offers straightforward power and thermal characteristics for embedded projects.

Request a quote or submit an inquiry to obtain pricing, availability, and technical support information for A3PN030-Z2QNG48.
