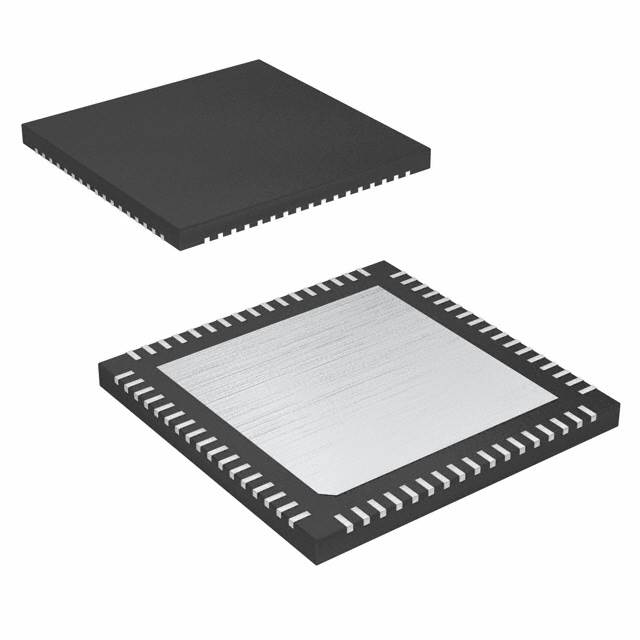

A3PN030-Z2QNG68
| Part Description |
ProASIC3 nano Field Programmable Gate Array (FPGA) IC 49 68-VFQFN Exposed Pad |
|---|---|
| Quantity | 386 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 68-QFN (8x8) | Grade | Commercial | Operating Temperature | -20°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 68-VFQFN Exposed Pad | Number of I/O | 49 | Voltage | 1.425 V - 1.575 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | Unknown | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 768 | Number of Logic Elements/Cells | 768 | ||
| Number of Gates | 30000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A |
Overview of A3PN030-Z2QNG68 – ProASIC3 nano Field Programmable Gate Array (FPGA) IC 49 I/Os, 68‑VFQFN Exposed Pad
The A3PN030-Z2QNG68 is a ProASIC3 nano FPGA from Microchip Technology, built on the ProASIC3 nano fabric and targeted at commercial embedded designs. It delivers a compact, flash-based programmable logic solution with 768 logic elements and a logic capacity of 30,000 gates, optimized for low-power operation and I/O-centric applications.
This device is well suited to commercial embedded systems and portable products that require flexible interfacing, low static power modes and a small form-factor package. Key value comes from its combination of logic density, multiple low-power modes documented in the ProASIC3 nano user guide, and a 68‑VFQFN exposed pad package for PCB integration.
Key Features
- Core — ProASIC3 nano fabric Flash-based FPGA fabric designed for configurable logic implementations; documented low-power architecture and fabric user guidance are provided in the ProASIC3 nano user’s guide.
- Logic Capacity 768 logic elements (LEs) providing a total of approximately 30,000 gates for glue logic, control functions and custom processing.
- I/O 49 general-purpose I/Os to support diverse peripheral, sensor and interface connections.
- On-chip Memory Total RAM bits: 0 (no embedded RAM reported for this device).
- Low-Power Support Multiple low-power modes are documented for the ProASIC3 nano family, including Static (Idle), User Low Static (Idle), Sleep and Shutdown modes to reduce power consumption in standby or inactive states.
- Supply Voltage Core supply range: 1.425 V to 1.575 V, enabling deterministic power budgeting for system design.
- Package & Mounting 68‑pin VFQFN with exposed pad (supplier device package: 68‑QFN, 8×8); surface-mount mounting supports compact PCB layouts and thermal management via the exposed pad.
- Operating Range & Grade Commercial grade device with an operating temperature range of −20 °C to 85 °C.
- Environmental Compliance RoHS compliant.
Typical Applications
- Commercial Embedded Systems Implement control logic, protocol adaptation and custom peripheral interfaces in space-constrained commercial products.
- Portable and Battery-Powered Devices Use documented low-power modes to reduce standby and idle energy consumption in handheld and portable equipment.
- I/O Expansion & Interface Bridging Leverage 49 I/Os to consolidate glue logic, translate between interfaces and aggregate signals in compact designs.
- Consumer Electronics Integrate custom logic and control sequencing for consumer-grade products requiring a small package and commercial temperature operation.
Unique Advantages
- Compact, manufacturable package: 68‑VFQFN with exposed pad and surface-mount format enables dense PCB layouts and improved thermal path for the core.
- Predictable power domain: Narrow core supply range (1.425–1.575 V) simplifies power-supply design and voltage-margin planning.
- Flash-based, documented low-power fabric: The ProASIC3 nano user’s guide details multiple power modes (Static, Sleep, Shutdown), helping optimize system-level power management.
- Right-sized logic for glue and control: 768 logic elements and 30,000 gates provide a balance of capacity for control, interfacing and modest custom logic without large-device overhead.
- Commercial temperature suitability: Rated for −20 °C to 85 °C operation to match a wide range of commercial product environments.
- Regulatory-friendly manufacturing: RoHS compliance supports lead‑free assembly processes.
Why Choose A3PN030-Z2QNG68?
The A3PN030-Z2QNG68 delivers a focused combination of logic density, flash-based configurable fabric and I/O count in a compact 68‑VFQFN package aimed at commercial embedded applications. Its documented low-power modes and narrow core voltage range make it straightforward to integrate into power-conscious product designs while keeping PCB footprint minimal.
This part is suited for engineers building commercial-grade products that need reliable, reprogrammable logic for interface consolidation, control tasks and modest custom processing. The device’s characteristics support scalable designs and simpler BOMs where on-chip embedded RAM is not required.
Request a quote or submit an inquiry to receive pricing and availability for the A3PN030-Z2QNG68 and to discuss how it fits your next embedded design.
