A42MX24-1TQG176I

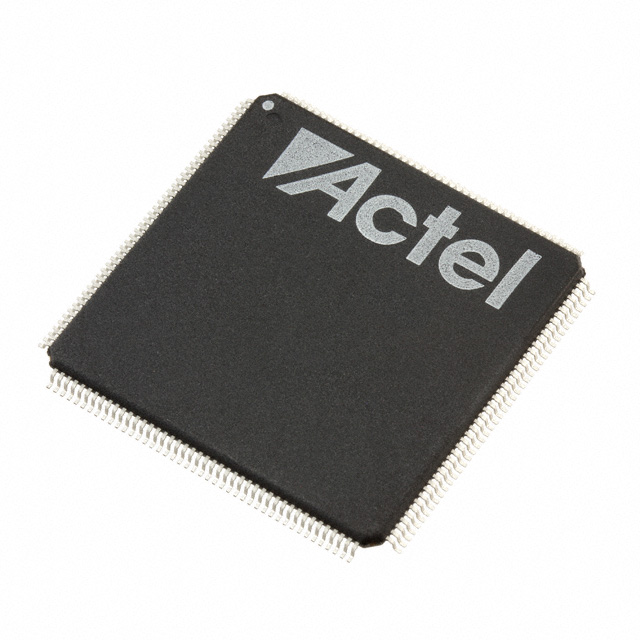

The A42MX24-1TQG176I is an MX Field Programmable Gate Array (FPGA) in a 176-LQFP package designed for industrial applications. It provides a balance of programmable logic capacity and extensive I/O to support configurable digital designs that require robust temperature and voltage operating ranges.

With 36,000 gates, 912 logic element cells and 150 user I/O pins, this surface-mount device targets designs that need moderate logic density and flexible board-level interfacing while operating from 3 V to 5.5 V and across an industrial temperature range.

Key Features

• Core Logic — 36,000 gates and 912 logic element cells deliver programmable logic capacity for moderately complex functions.
• I/O Capacity — 150 user I/O pins allow direct interfacing to multiple peripherals, sensors and external logic devices.
• Power — Supports a wide supply range of 3 V to 5.5 V for compatibility with common system voltage domains.
• Package & Mounting — Available in a 176-LQFP (supplier device package: 176-TQFP 24×24) surface-mount package for compact board integration.
• Industrial Temperature Range — Rated for operation from −40 °C to 85 °C to suit extended-environment deployments.
• RoHS Compliant — Conforms to RoHS requirements for reduced hazardous substances.

Typical Applications

• Industrial Control — Use the FPGA’s logic and extensive I/O to implement control algorithms, I/O aggregation and custom interfaces for industrial equipment.
• Factory Automation — Implement sequencing, timing and custom peripheral interfaces within the device’s industrial temperature and voltage ranges.
• Instrumentation & Test — Leverage the device’s gate count and I/O to build tailored measurement, conditioning and data-handling front ends.
• Custom I/O and Protocol Bridging — Deploy the 150 I/O pins to realize protocol translation, buffering and application-specific interface logic.

Unique Advantages

• Balanced Logic Density: 36,000 gates and 912 logic elements provide sufficient capacity for many mid-range programmable logic tasks without excessive board-level complexity.
• High I/O Count: 150 user I/O pins reduce the need for external I/O expanders and simplify system-level connectivity.
• Wide Supply Flexibility: Operation from 3 V to 5.5 V supports integration with common industrial voltage rails.
• Industrial Reliability: Specified for −40 °C to 85 °C operation to meet extended temperature requirements of industrial environments.
• Compact Surface-Mount Package: 176-LQFP (24×24) package enables space-efficient PCB layouts and reliable board assembly.
• Manufacturing Compliance: RoHS-compliant construction supports contemporary regulatory and manufacturing needs.

Why Choose A42MX24-1TQG176I?

The A42MX24-1TQG176I positions itself as an industrial-grade FPGA option for designs that require moderate programmable logic resources combined with substantial I/O capability. Its combination of 36,000 gates, 912 logic element cells and 150 I/O pins makes it suitable for control, interfacing and custom logic tasks while supporting common supply voltages and extended temperature operation.

This device is well suited for engineers and procurement teams seeking a compact, surface-mount FPGA that balances logic capacity, board-level connectivity and industrial robustness, with RoHS compliance for contemporary manufacturing requirements.

Request a quote or submit a pricing inquiry to evaluate the A42MX24-1TQG176I for your next industrial or embedded design project.
