A42MX24-2PL84

The A42MX24-2PL84 is a Microchip Technology MX family Field Programmable Gate Array (FPGA) provided in a surface-mount 84-LCC (J‑Lead) package. It delivers reprogrammable digital logic resources for commercial electronic designs.

With a logic capacity of 912 logic elements (36,000 gates) and 72 general-purpose I/O, this device targets commercial-grade embedded applications that require flexible logic implementation in a compact, RoHS-compliant package.

Key Features

• Core Logic 912 logic elements and approximately 36,000 gates provide the programmable fabric for custom digital functions.
• I/O 72 user I/O pins support a variety of external interfaces and signal routing needs.
• Memory No on-chip RAM bits are reported for this device (Total RAM Bits: 0).
• Voltage Supply Supports a wide supply range from 3 V to 5.25 V to accommodate common commercial power rails.

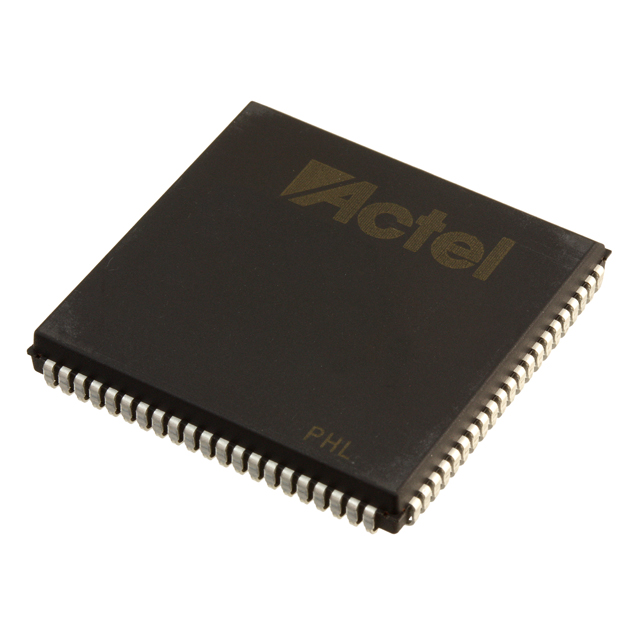

• Package & Mounting 84-LCC (J-Lead) surface-mount package; supplier device package listed as 84-PLCC with dimensions 29.31 × 29.31 mm for compact board-level integration.
• Operating Range & Grade Commercial temperature rating from 0 °C to 70 °C and designated as commercial grade for general-purpose applications.
• Environmental Compliance RoHS compliant.

Unique Advantages

• Programmable logic density: 912 logic elements and 36,000 gates enable complex combinational and sequential logic implementations without fixed-function ASIC development.
• Flexible I/O count: 72 I/O pins allow direct interfacing to multiple peripherals and subsystems, simplifying board-level design.
• Broad supply compatibility: 3 V to 5.25 V operation supports integration into a variety of commercial power domains.
• Compact surface-mount packaging: The 84-LCC / 84-PLCC footprint (29.31 × 29.31 mm) balances pin count and board space for space-constrained designs.
• Commercial-grade reliability: Rated for 0 °C to 70 °C operation to match typical commercial embedded deployment environments.
• Regulatory friendliness: RoHS compliance supports use in products requiring lead-free assembly.

Why Choose A42MX24-2PL84?

The A42MX24-2PL84 positions itself as a programmable, commercial-grade FPGA option for designers who need moderate logic density and a substantial I/O complement in a compact, surface-mount package. Its broad 3 V–5.25 V supply range and RoHS compliance make it suitable for many mainstream embedded projects.

This device is well suited to engineers and procurement teams seeking a Microchip MX-series FPGA with clear, verifiable specifications: defined logic element count, gate capacity, I/O count, package dimensions, and commercial operating range. Its combination of programmability and standard packaging supports iterative design and scalable deployment in volume commercial applications.

To request pricing, availability, or submit a quote request for the A42MX24-2PL84, please reach out to our sales team with your part quantity and delivery requirements.
