A42MX24-2TQG176I

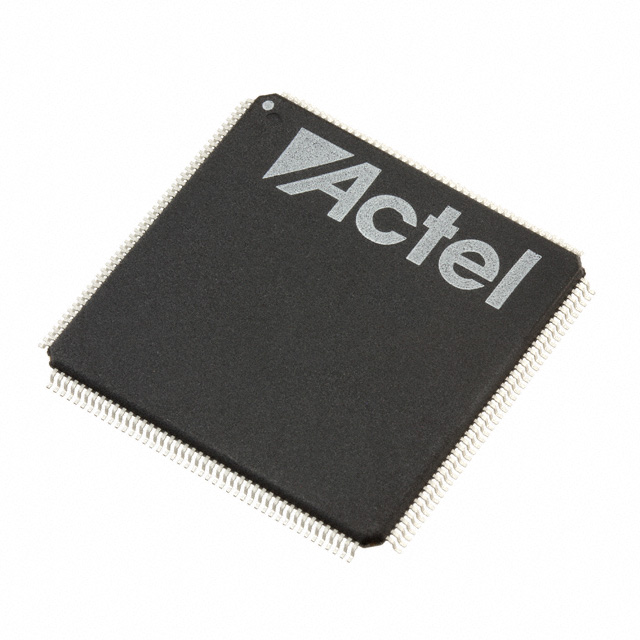

The A42MX24-2TQG176I is an MX series Field Programmable Gate Array (FPGA) from Microchip Technology, delivered in a 176-LQFP surface-mount package. It provides a mid-density programmable fabric with 912 logic elements and approximately 36,000 gates, alongside 150 general-purpose I/O pins.

Designed for industrial applications, the device supports a wide supply range (3 V to 5.5 V) and an operating temperature range of -40°C to 85°C, offering a programmable solution for control, interfacing and digital logic integration where industrial temperature and voltage flexibility are required.

Key Features

• Programmable Logic 912 logic elements and approximately 36,000 gates for implementing custom digital functions and control logic.
• I/O Capacity 150 I/O pins to support dense peripheral interfacing, signal routing and mixed-signal front-end connectivity on a single device.
• Supply Voltage Range Operates from 3 V to 5.5 V, enabling compatibility with a variety of system power rails and legacy I/O voltage levels.
• Package and Mounting 176-LQFP (supplier device package: 176-TQFP 24×24) in a surface-mount package for compact board-level integration.
• Industrial Temperature Grade Rated for -40°C to 85°C operation, suitable for industrial environments and temperature-sensitive deployments.
• Manufacturing Compliance RoHS compliant to meet standard environmental and lead-free manufacturing requirements.

Typical Applications

• Industrial Control — Implement custom control logic, I/O aggregation and interface bridging for factory automation and machine control systems.
• Instrumentation and Test Equipment — Provide programmable logic and extensive I/O for data acquisition, signal conditioning and measurement front ends.
• Communications Interfaces — Enable protocol conversion, glue-logic and peripheral management where flexible I/O and reconfigurable logic are required.

Unique Advantages

• Mid-density logic in a compact package: 912 logic elements and ~36,000 gates in a 176-LQFP make it suitable for designs that need meaningful logic capacity without large devices.
• Generous I/O count: 150 I/O pins simplify board-level design by consolidating signals and reducing external glue components.
• Wide voltage support: 3 V to 5.5 V operation increases system-level flexibility for integration with diverse power domains.
• Industrial temperature rating: -40°C to 85°C operation supports deployment in temperature-challenging environments.
• Surface-mount 176-LQFP packaging: Compact package option that eases PCB routing and assembly for production designs.
• RoHS compliant: Meets common environmental manufacturing requirements for lead-free assembly.

Why Choose A42MX24-2TQG176I?

The A42MX24-2TQG176I positions itself as a flexible, mid-density FPGA choice for engineers needing a balance of logic capacity, extensive I/O and industrial temperature capability in a compact surface-mount package. Its voltage range and RoHS compliance make it adaptable to varied system requirements and manufacturing processes.

This device is well suited for teams designing industrial controls, instrumentation, and communications interface logic who require a programmable, field-updatable solution from Microchip Technology that fits on space-constrained boards while offering robust environmental operating limits.

Request a quote or submit an inquiry to receive pricing and availability information for the A42MX24-2TQG176I. Sales and procurement teams can provide detailed purchasing options and lead-time estimates.
