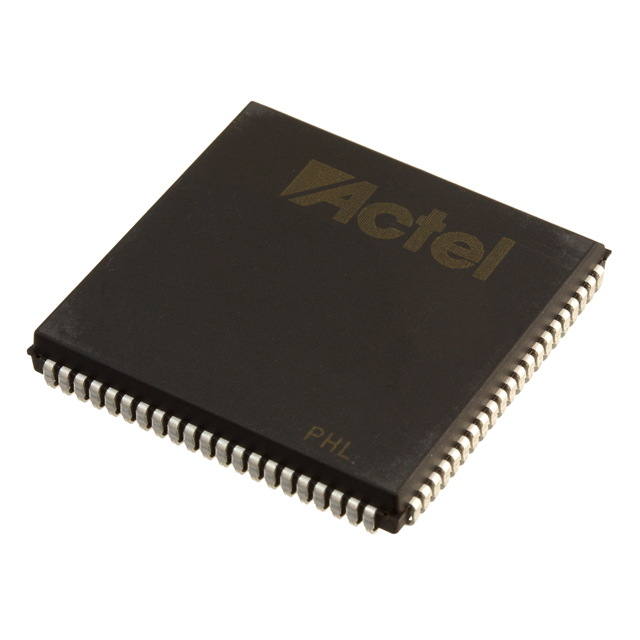

A42MX24-3PLG84I

The A42MX24-3PLG84I is a field programmable gate array (FPGA) from Microchip Technology, delivered in an 84‑lead LCC (J‑lead) surface‑mount package. It provides a compact, industrial‑grade programmable logic solution with a broad supply voltage range and an operating temperature range suitable for industrial applications.

Key on‑device resources include logic capacity and I/O density to support mid‑range programmable logic functions while maintaining a compact package footprint and RoHS compliance.

Key Features

• FPGA Core Field‑programmable gate array architecture for hardware logic customization and reconfiguration.
• Logic Capacity 912 logic element cells and approximately 36,000 equivalent gates to implement mid‑complexity logic designs.
• I/O 72 general‑purpose I/O pins for flexible external interfacing and signal routing.
• Memory Total on‑chip RAM bits: 0 — the device provides programmable logic without embedded RAM resources.
• Power Wide supply voltage support from 3 V to 5.5 V for compatibility with multiple system voltage domains.
• Package & Mounting 84‑lead LCC (J‑Lead) surface‑mount package; supplier device package listed as 84‑PLCC (29.31 × 29.31 mm) for compact system integration.
• Temperature & Grade Industrial grade device rated for operation from −40 °C to 85 °C.
• Environmental Compliance RoHS compliant.

Unique Advantages

• Industrial temperature capability: Rated for −40 °C to 85 °C, enabling use in temperature‑sensitive industrial environments.
• Flexible supply range: Operation from 3 V to 5.5 V allows integration into varied power architectures without additional regulators in some designs.
• Balanced logic and gate count: Approximately 912 logic elements and 36,000 gates provide a clear profile for mid‑complexity hardware implementations.
• Compact surface‑mount package: 84‑lead LCC (J‑Lead) form factor supports dense PCB layouts while maintaining robust mechanical mounting.
• Compliance and sourcing: RoHS compliance supports environmental and regulatory requirements for many industrial projects.

Why Choose A42MX24-3PLG84I?

The A42MX24-3PLG84I positions itself as a practical, industrial‑grade FPGA option for designs requiring deterministic logic resources, a moderate I/O count, and a compact surface‑mount package. Its combination of logic elements, gate count, and a wide supply voltage range makes it suitable for embedded systems and industrial control applications where a small footprint and reliable environmental performance are required.

Backed by Microchip Technology, this device offers designers a repeatable platform for mid‑range programmable logic needs, with clear electrical and mechanical characteristics to support long‑term design planning and supply chain decisions.

Request a quote or submit a request for pricing and availability to evaluate the A42MX24-3PLG84I for your next design project.
