A42MX24-PLG84I

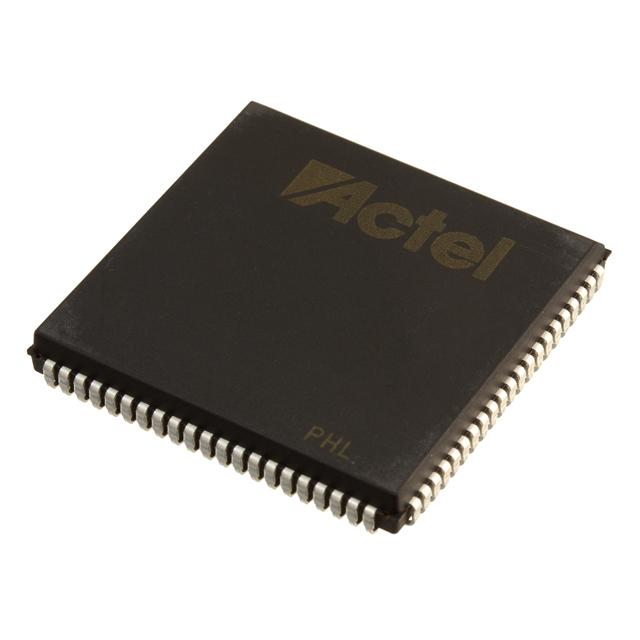

The A42MX24-PLG84I is an industrial-grade MX Field Programmable Gate Array (FPGA) supplied in an 84-lead LCC (J-Lead) surface-mount package. It provides a moderate logic capacity together with flexible I/O and a wide supply voltage range for designs that require configurable logic in an industrial temperature window.

Key characteristics include 912 logic elements, 36,000 gates, 72 general-purpose I/O lines, and operation from 3 V to 5.5 V with an operating temperature range of −40 °C to 85 °C. The device is RoHS compliant and is supplied in a compact 84-PLCC package (29.31 × 29.31 mm).

Key Features

• Logic Capacity  Provides 912 logic elements and approximately 36,000 gates to implement moderate-complexity functions and state machines.
• I/O  Up to 72 user I/O pins for interfacing with peripherals, sensors, and external logic.
• Memory  Total on-chip RAM bits: 0 (no embedded RAM present), allowing deterministic logic implementation without embedded memory resources.
• Package and Mounting  84-LCC (J-Lead) surface-mount package; supplier device package listed as 84-PLCC with dimensions 29.31 × 29.31 mm for compact PCB integration.
• Power  Wide supply voltage range from 3 V to 5.5 V to support common system rails and flexible deployment options.
• Temperature Range & Grade  Industrial-grade device rated for operation from −40 °C to 85 °C for temperature-sensitive deployments.
• Environmental Compliance  RoHS compliant, meeting common requirements for lead-free assembly and regulatory compliance.

Typical Applications

• Industrial Control Systems  Implement moderate-density logic and I/O tasks where industrial temperature operation and surface-mount packaging are required.
• I/O Expansion and Glue Logic  Use the 72 general-purpose I/O pins to consolidate interfacing, bus bridging, or custom peripheral control.
• Embedded Logic Acceleration  Deploy the 912 logic elements and 36,000 gates to offload deterministic logic functions from a host processor in space-constrained designs.

Unique Advantages

• Industrial Temperature Rating: Designed for −40 °C to 85 °C operation, enabling deployment in a wide range of environmental conditions.
• Flexible Power Options: Operates from 3 V to 5.5 V, allowing use with multiple system supply schemes without additional level translation for core power.
• Balanced Logic and I/O: Combines 912 logic elements with 72 I/O pins to address moderate-complexity designs that need significant external interfacing.
• Compact Surface-Mount Package: Available in an 84-PLCC (29.31 × 29.31 mm) form factor suitable for space-constrained PCBs while supporting surface-mount assembly.
• Regulatory Compliance: RoHS compliance supports lead-free manufacturing and regulatory needs for commercial and industrial products.

Why Choose A42MX24-PLG84I?

The A42MX24-PLG84I positions itself as an industrial-grade FPGA option for designs that require a balance of logic capacity, extensive I/O, and broad supply-voltage compatibility. Its 912 logic elements and 36,000 gates provide sufficient resources for moderate-complexity programmable logic tasks while 72 I/O pins enable flexible system interfacing.

With an industrial operating range, RoHS compliance, and a compact 84-PLCC surface-mount package, this device is suited for engineers and procurement teams seeking a configurable logic IC that fits constrained board layouts and industrial environments.

Request a quote or submit a request for pricing and availability to begin integrating the A42MX24-PLG84I into your design.
