A42MX24-PLG84M

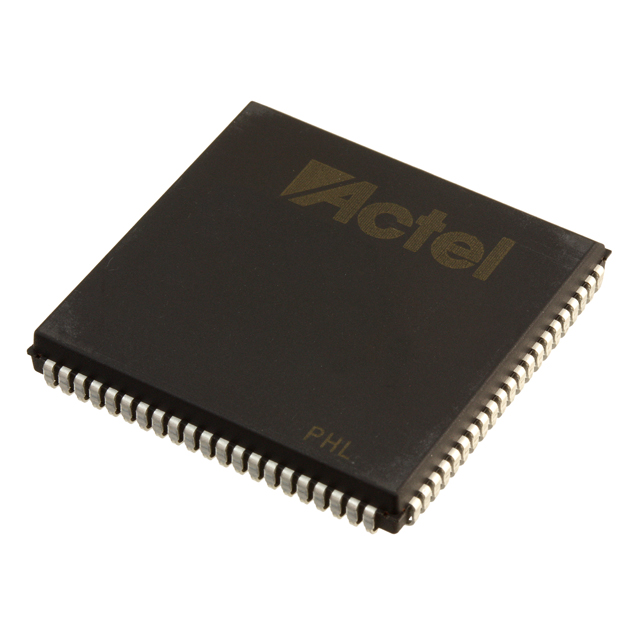

The A42MX24-PLG84M is a military-grade MX Field Programmable Gate Array (FPGA) offered in an 84-lead LCC (J-lead) package. It provides a compact, surface-mount programmable logic solution with a defined set of logic resources and general-purpose I/O for board-level digital design.

With 912 logic elements (approximately 36,000 gates), 72 I/O pins, and a wide supply and temperature range, this FPGA is tailored for designs that require predictable logic capacity and robust environmental tolerance.

Key Features

• Core / Logic 912 logic elements and approximately 36,000 gates for custom combinational and sequential logic implementations.
• I/O 72 general-purpose I/O pins to support multiple peripheral interfaces and board-level signal routing.
• Memory No on‑chip RAM (Total RAM Bits: 0), enabling deterministic logic-focused implementations.
• Power Wide supply voltage range from 3 V to 5.5 V for compatibility with a variety of board power domains.
• Package & Mounting 84‑lead LCC (J‑lead) surface-mount package; supplier device package listed as 84‑PLCC (29.31×29.31 mm) for compact board placement.
• Temperature & Grade Military grade device rated for operation from −55 °C to 125 °C to meet demanding environmental requirements.
• Environmental Compliance RoHS compliant.

Typical Applications

• Military and defense systems — Suited to board-level programmable logic tasks in systems that require military-grade components and an extended operating temperature range.
• Rugged embedded control — Used where predictable logic resources and wide supply voltage tolerance are needed for control and interfacing functions in harsh environments.
• Board-level I/O aggregation — Provides a compact solution for consolidating multiple I/O signals in space-constrained designs using the 84‑lead package and 72 I/O pins.

Unique Advantages

• Defined logic capacity: 912 logic elements and ~36,000 gates give designers clear, verifiable resources for implementing discrete logic functions.
• Robust environmental range: Military-grade rating with −55 °C to 125 °C operation supports deployment in extreme-temperature applications.
• Flexible supply operation: 3 V to 5.5 V support simplifies integration with a range of board power architectures.
• High I/O count in a compact package: 72 I/O pins in an 84‑lead LCC/PLCC footprint enable dense signal routing without a large package.
• RoHS compliant: Meets common environmental compliance expectations for electronic assemblies.

Why Choose A42MX24-PLG84M?

The A42MX24-PLG84M combines a clear, verifiable logic resource set with a high I/O count and military-grade environmental specifications, making it a pragmatic choice for designers who need deterministic programmable logic in harsh environments. Its wide supply voltage range and compact 84‑lead package ease integration into existing board architectures.

This FPGA is well suited to engineers and procurement teams targeting reliable, field-deployable logic solutions where temperature tolerance, I/O density, and package footprint are primary selection criteria.

Request a quote or submit an RFQ for A42MX24-PLG84M to receive pricing and availability information.
