A42MX36-2BG272I

The A42MX36-2BG272I is a field programmable gate array (FPGA) from Microchip Technology designed for industrial embedded applications. It provides a compact, surface-mount BBGA package with a balance of logic resources, I/O density and on-chip memory for control, interfacing and custom logic tasks.

With support for a 3 V to 5.5 V supply range and an operating temperature of −40 °C to 85 °C, this device targets applications that require robust operation across standard industrial temperature and voltage conditions.

Key Features

• Core Logic 1,184 logic elements and approximately 54,000 gates to implement custom combinational and sequential logic functions.
• On‑Chip Memory 2,560 bits of embedded RAM for small buffers, state storage and control tables.
• I/O Resources 202 general-purpose I/O pins to support multiple external interfaces, sensing and control connections.

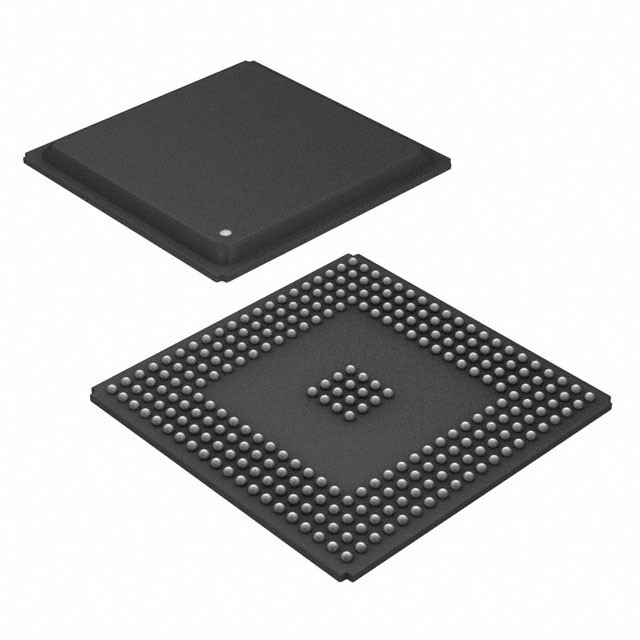

• Package & Mounting 272-BBGA (supplier device package: 272-PBGA 27×27) in a surface-mount form factor for compact PCB implementations.
• Power Wide voltage supply range from 3 V to 5.5 V to accommodate different system power rails.
• Industrial Temperature Rating Qualified for operation from −40 °C to 85 °C for use in industrial environments.
• Regulatory Compliance RoHS compliant.

Typical Applications

• Industrial Control Implement custom control logic, I/O aggregation and deterministic glue logic for PLCs, motor drives and factory automation.
• Interface Bridging Use the FPGA’s I/O density to bridge or adapt between legacy and modern interfaces within embedded systems.
• Embedded System Glue Logic Provide custom timing, protocol handling and peripheral control where small on-chip RAM and dedicated logic are required.

Unique Advantages

• Balanced Logic and I/O Combines over a thousand logic elements with 202 I/O pins to support mid‑complexity designs without excessive board-level components.
• Flexible Power Input Operates across a broad 3 V to 5.5 V range, simplifying integration into systems with different supply domains.
• Industrial Reliability Rated for −40 °C to 85 °C operation, making it suitable for industrial deployment where thermal robustness is required.
• Compact Surface-Mount Package 272-BBGA packaging enables high-density board layouts while maintaining a manageable footprint for embedded designs.
• RoHS Compliant Meets RoHS requirements for lead‑free assemblies and environmentally conscious manufacturing.

Why Choose A42MX36-2BG272I?

The A42MX36-2BG272I delivers a practical mix of logic capacity, I/O availability and on-chip memory in a compact BGA package from Microchip Technology. Its industrial temperature rating and wide supply voltage range make it a reliable option for embedded and control-oriented designs that need flexible I/O and custom programmable logic.

This FPGA suits engineers and procurement teams looking for a mid-range, industrial-grade programmable device that balances integration, board space and predictable operating conditions while adhering to RoHS requirements.

Request a quote or submit a quote for the A42MX36-2BG272I to get pricing and availability details for your next design.
