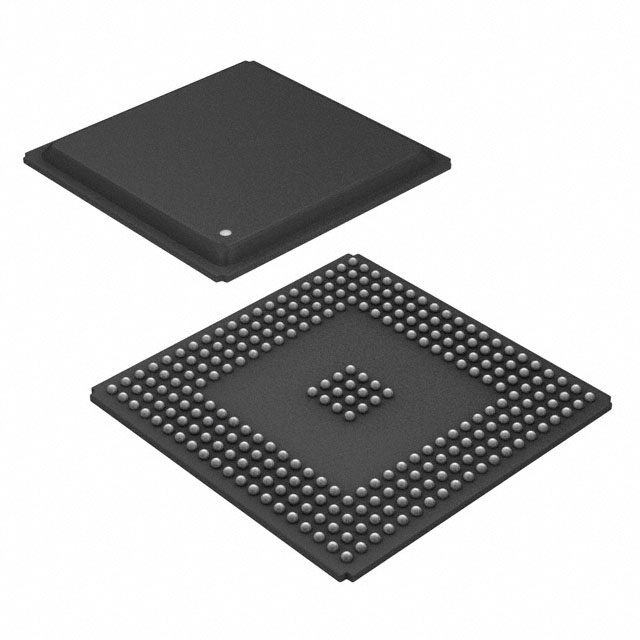

A42MX36-BGG272I

The A42MX36-BGG272I is an MX family Field Programmable Gate Array (FPGA) in a 272-ball BGA package designed for industrial applications. It provides a compact programmable fabric with defined logic capacity, I/O count and on-chip memory for control, interface and signal-processing tasks where predictable supply and temperature ranges are required.

This device targets designers who need a mid-density FPGA offering a balance of logic resources, I/O connectivity and robust operating conditions for embedded and industrial systems.

Key Features

• Logic Capacity — 1,184 logic elements and approximately 54,000 gates for implementing combinational and sequential logic functions.
• Embedded Memory — Total on-chip RAM of 2,560 bits (approximately 0.00256 Mbits) for small data buffering and state storage.
• I/O — 202 user I/O pins to support multiple external interfaces and peripheral connections.
• Supply Voltage — Operates from 3 V to 5.5 V, enabling compatibility with a range of system power rails.
• Package & Mounting — 272-BBGA package; supplier device package listed as 272-PBGA (27×27) with surface-mount construction for compact PCB integration.
• Industrial Temperature Range — Rated for operation from −40 °C to 85 °C to meet typical industrial environment requirements.
• Regulatory Status — RoHS compliant.

Typical Applications

• Industrial Control — Implement custom control logic, protocol bridges and interface glue where industrial temperature range and robust I/O counts are required.
• Embedded Systems — Use as a programmable co-processor or glue logic to adapt system interfaces and offload deterministic logic from microcontrollers.
• Communication Interfaces — Provide flexible pin-limited interface handling and protocol adaptation using available I/O and logic resources.

Unique Advantages

• Compact, mid-density logic — 1,184 logic elements and 54,000 gates deliver sufficient capacity for many control and interfacing tasks without excessive board real estate.
• Generous I/O count — 202 I/Os enable multiple external connections and flexible pin assignments to support diverse peripheral sets.
• Wide supply range — 3 V to 5.5 V operation simplifies integration with common system power rails.
• Industrial-grade temperature rating — −40 °C to 85 °C operation supports deployment in factory and field equipment.
• Small embedded RAM for state and buffering — 2,560 bits of on-chip RAM for lightweight data storage and control-state requirements.
• Surface-mount BGA packaging — 272-ball BGA (272-PBGA, 27×27) enables high-density PCB layouts while maintaining robust soldered connections.

Why Choose A42MX36-BGG272I?

The A42MX36-BGG272I is positioned for designs requiring a mid-density FPGA with a clear balance of logic, I/O and modest on-chip memory in an industrial temperature-rated package. Its combination of 1,184 logic elements, 202 I/Os and wide supply voltage range makes it suitable for embedded control, interface adaptation and communication tasks where predictable environmental performance is important.

For engineers and purchasers seeking a compact, surface-mount FPGA solution with RoHS compliance and industrial operating range, the A42MX36-BGG272I offers a focused feature set that supports scalable, reliable system designs.
