AGLN030V2-ZUCG81I

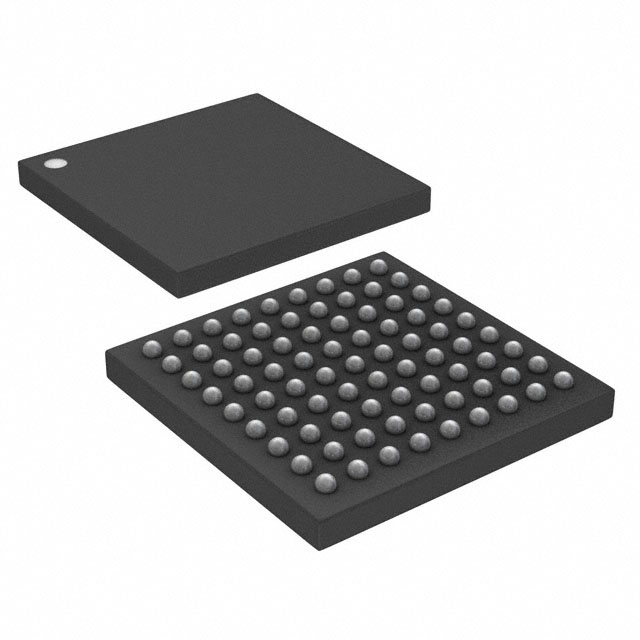

The AGLN030V2-ZUCG81I is an IGLOO nano low-power Flash Field Programmable Gate Array (FPGA) IC from Microchip Technology in an 81‑WFBGA/CSBGA surface-mount package. It provides 768 logic elements (approximately 30,000 equivalent gates) with 66 user I/Os and is specified for industrial operation from −40 °C to 100 °C.

Designed for compact, low-voltage systems, this device supports core supply voltages from 1.14 V to 1.575 V and leverages IGLOO nano flash-based architecture and low-power features for battery-sensitive and space-constrained embedded applications.

Key Features

• Logic Capacity: 768 logic elements (reported as 768 logic elements and 30,000 equivalent gates) suitable for small-to-moderate logic integration.
• I/O Count and Flexibility: 66 user I/Os provided in the 81‑WFBGA/CSBGA package for mixed-signal and multi-interface board designs.
• Low-Voltage Operation: Core supply range from 1.14 V to 1.575 V to support low-power system architectures.
• Flash-Based Configuration: IGLOO nano Flash architecture with nonvolatile configuration retention and low-power behavior described for the series.
• Power and Mounting: Surface-mount package with a small footprint 81‑WFBGA (CSBGA) offering compact board-level integration; RoHS‑compliant.
• Industrial Temperature Grade: Rated for operation from −40 °C to 100 °C, suitable for industrial deployments.
• Memory Profile: This specific device reports Total RAM Bits: 0; designers should account for external memory or other series devices where embedded RAM is required.

Typical Applications

• Industrial Control: Compact programmable logic for sensor aggregation, simple motor-control logic, and interface bridging in industrial systems operating across −40 °C to 100 °C.
• Embedded Systems: Low-voltage FPGA functions in compact embedded products where small package size and low-power operation are prioritized.
• Peripheral and Interface Logic: I/O expansion, glue logic, protocol conversion, and custom interface handling using the device’s 66 user I/Os.
• Battery-Powered or Low-Power Designs: Applications that benefit from IGLOO nano series low-power features and reduced core voltage operation.

Unique Advantages

• Compact, Surface-Mount Package: 81‑WFBGA/CSBGA package and small UCSP footprint options enable dense board layouts and portable product designs.
• Industrial Temperature Rating: −40 °C to 100 °C specification supports deployment in harsh or wide-temperature industrial environments.
• Low-Voltage Core Compatibility: 1.14 V to 1.575 V supply range allows integration into modern low-voltage systems.
• Clear Logic and I/O Tradeoffs: 768 logic elements and 66 I/Os provide a predictable integration point for designers balancing logic density and I/O needs.
• RoHS Compliant: Conforms to RoHS requirements for lead‑free manufacturing and environmental compatibility.

Why Choose AGLN030V2-ZUCG81I?

The AGLN030V2-ZUCG81I positions itself as a practical, industrial-grade FPGA choice for compact, low-voltage systems that need nonvolatile flash-based configuration and a moderate amount of programmable logic. With 768 logic elements, 66 user I/Os, and an 81‑WFBGA surface-mount package, it fits designs where board space, power efficiency, and robust temperature operation are key considerations.

It is well suited to engineers and procurement teams building industrial embedded systems, interface controllers, or low-power instrumentation who require a small-footprint FPGA with documented electrical and thermal ranges and RoHS compliance.

Request a quote or submit a procurement inquiry to begin sourcing AGLN030V2-ZUCG81I for your next design.
