AGLN030V2-ZCSG81I

The AGLN030V2-ZCSG81I is an IGLOO nano Field Programmable Gate Array (FPGA) offered in an 81‑WFBGA / CSBGA package. The device provides 768 logic elements and 66 general-purpose I/O pins in a compact surface-mount package, targeted at designs that require a small FPGA footprint with industrial-grade temperature capability.

Designed with a nominal low-voltage supply range and industrial operating temperatures, this part addresses embedded logic, I/O interfacing, and control functions where compact packaging and predictable operating conditions are required.

Key Features

• Core Logic — 768 logic elements (cells) supporting up to 30,000 gates for implementing custom glue logic, state machines, and small to medium FPGA functions.
• I/O — 66 user I/O pins to support a variety of peripheral interfaces and signal routing in space-constrained designs.
• Memory — On-chip RAM: 0 total RAM bits; suitable when external memory or register-based logic is used.
• Power — Voltage supply range of 1.14 V to 1.575 V to match low-voltage system rails and logic families operating in that domain.

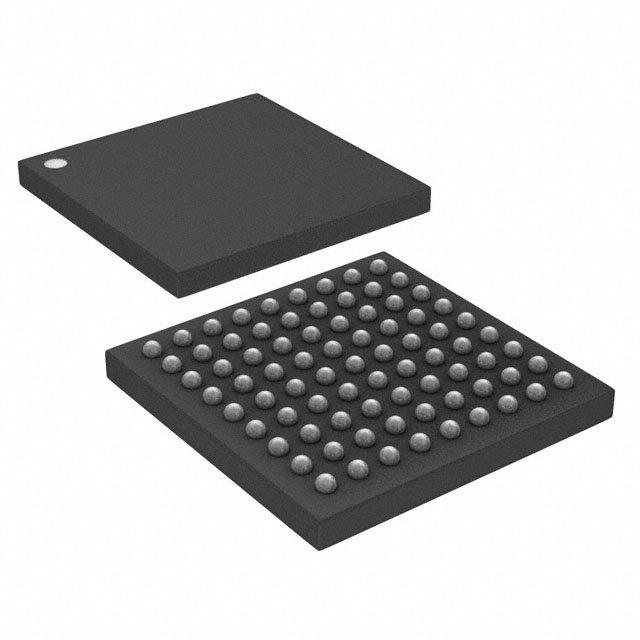

• Package & Mounting — 81‑WFBGA, CSBGA package (supplier device package 81‑CSP, 5×5); surface-mount mounting type for compact PCB assembly.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C for deployment in industrial environments.
• Regulatory — RoHS compliant.

Typical Applications

• Industrial Control Systems — Industrial-grade operating temperature and 66 I/O make the device suitable for control interfaces and small automation logic.
• Embedded I/O Expansion — 66 general-purpose I/Os and 768 logic elements provide room for implementing signal bridging, protocol conversion, and glue logic.
• Compact FPGA Integration — The 81‑WFBGA surface-mount package and 5×5 CSP footprint allow integration into space-limited embedded modules and boards.

Unique Advantages

• Compact, board-friendly package: 81‑WFBGA / 81‑CSP (5×5) footprint enables dense PCB layouts and small form-factor assemblies.
• Industrial temperature capability: −40 °C to 100 °C rating supports deployment in demanding ambient conditions.
• Ample I/O for peripheral interfacing: 66 I/O pins provide flexibility for connecting sensors, buses, and external logic without extensive board routing.
• Low-voltage operation support: 1.14 V to 1.575 V supply range aligns with modern low-voltage system rails.
• RoHS compliant: Meets lead-free assembly and environmental requirements for regulated markets.

Why Choose AGLN030V2-ZCSG81I?

The AGLN030V2-ZCSG81I positions itself as a compact, industrial-grade FPGA solution for designers needing modest logic capacity (768 logic elements) and a substantial number of I/Os (66) in a small surface-mount package. Its combination of low-voltage operation and an extended temperature range makes it suitable for embedded applications where board space and dependable thermal performance matter.

Choose this IGLOO nano device when your design requires straightforward programmable logic, flexible I/O count, and a compact CSP/WFBGA package—delivering predictable integration and compliance with RoHS requirements.

Request a quote or submit a procurement inquiry to obtain pricing, lead time, and availability for the AGLN030V2-ZCSG81I.
