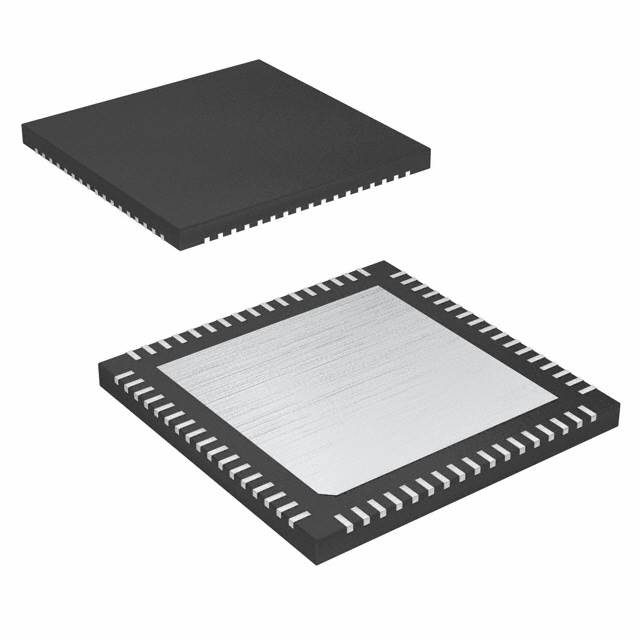

AGLN020V5-QNG68

The AGLN020V5-QNG68 is an IGLOO nano Field Programmable Gate Array (FPGA) IC from Microchip Technology designed for commercial embedded applications. It provides a compact, surface-mount FPGA implementation with 520 logic elements, 49 general-purpose I/O pins and approximately 20,000 gates for implementing glue logic, control functions and simple state machines.

Supplied in a 68-VFQFN exposed pad package and specified for a 1.425 V to 1.575 V supply, this device targets designers who need a small-footprint, low-pin-count programmable device for commercial systems operating between –20 °C and 85 °C.

Key Features

• Logic Capacity 520 logic elements (LEs) supporting approximately 20,000 gates for implementing combinational and sequential logic.
• I/O Count 49 user I/O pins suitable for interfacing with peripherals, sensors and control signals in compact designs.
• Memory No embedded on-chip RAM (0 total RAM bits), useful for applications that rely on external memory or require pure logic/IO handling.
• Supply Voltage Operates from 1.425 V to 1.575 V, enabling integration with systems using a narrow core supply domain.
• Package 68-VFQFN with exposed pad; supplier device package listed as 68-QFN (8×8) for a compact PCB footprint and thermal pad support.
• Mounting & Grade Surface-mount device rated for commercial grade use and RoHS compliant.
• Operating Temperature Specified for –20 °C to 85 °C to match typical commercial-environment deployments.

Typical Applications

• Embedded Control Use the FPGA to implement control and glue logic for compact embedded systems requiring flexible programmable logic.
• Interface Bridging Translate and buffer signals between peripherals and processors using the 49 I/O pins to simplify board-level integration.
• Sensor and User Interface Implement sensor aggregation, debounce, and simple UI handling in consumer and commercial devices.

Unique Advantages

• Compact, low-pin solution: 68-VFQFN packaging with exposed pad delivers a small PCB footprint while supporting thermal management.
• Right-sized logic capacity: 520 logic elements and ~20,000 gates provide sufficient resources for glue logic and control without excess cost or complexity.
• Clear power domain: Narrow supply range (1.425 V–1.575 V) aligns the device to systems using dedicated core voltage rails.
• Commercial-grade qualification: Specified operating range of –20 °C to 85 °C and RoHS compliance for mainstream commercial product development.
• Surface-mount convenience: Standard QFN footprint enables automated assembly and reliable board-level mounting.

Why Choose AGLN020V5-QNG68?

The AGLN020V5-QNG68 positions itself as a compact, commercially graded FPGA option for designers seeking a programmable logic device with moderate logic capacity and a high count of usable I/O in a small package. Its 520 logic elements and 49 I/Os make it well suited for embedded control, interface bridging and sensor/UI tasks where on-chip RAM is not required.

Designed and supplied by Microchip Technology, this IGLOO nano device offers a straightforward, space-efficient implementation for commercial systems that require programmable flexibility with a predictable electrical and thermal footprint.

Request a quote or submit a purchase inquiry to receive pricing and availability for the AGLN020V5-QNG68.
