AGLN020V5-CSG81I

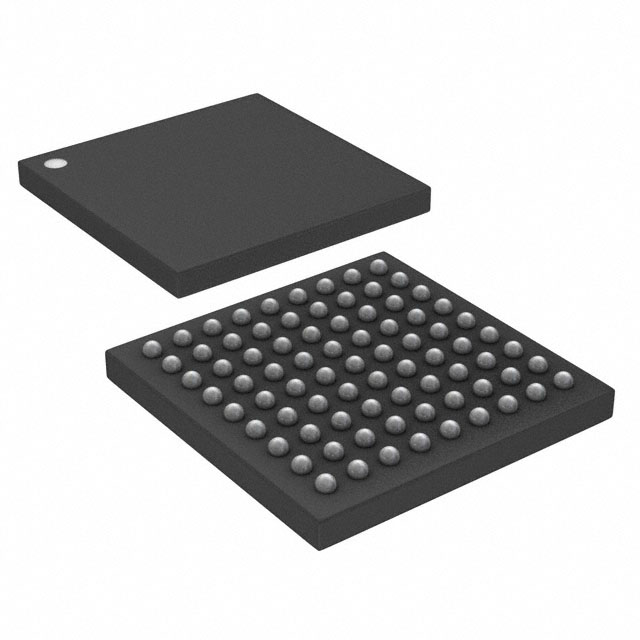

The AGLN020V5-CSG81I is an IGLOO nano Field Programmable Gate Array (FPGA) IC from Microchip Technology. It delivers a compact, industrial-grade programmable logic option with 520 logic elements and 52 I/O in an 81-WFBGA (CSBGA) package.

Designed for industrial and embedded applications that require a small, surface-mount FPGA with defined supply and temperature ranges, this device balances moderate logic capacity, a compact footprint, and industrial operating specifications for reliable deployment.

Key Features

• FPGA Core  IGLOO nano Field Programmable Gate Array architecture in an 81-WFBGA, CSBGA package.
• Logic Capacity  520 logic elements providing roughly 20,000 gates for control, glue logic, and small to moderate logic functions.
• I/O  52 general-purpose I/O pins to interface with peripherals, sensors, and external logic.
• Power  Single-supply operation with a specified voltage range of 1.425 V to 1.575 V.
• Package & Mounting  81-WFBGA (CSBGA) package; supplier device package listed as 81-CSP (5×5); intended for surface-mount assembly.
• Environmental & Grade  Industrial grade device with an operating temperature range of -40 °C to 100 °C and RoHS compliance.

Typical Applications

• Industrial Control  Implement control state machines, I/O conditioning, and protocol handling in industrial equipment operating across an extended temperature range.
• Embedded Glue Logic  Replace discrete logic and simplify board routing for compact embedded systems requiring a small programmable logic resource.
• I/O Expansion & Interface Bridging  Provide additional digital I/O and custom interface translation for microcontrollers and system-on-module designs.
• Compact Custom Logic  Integrate small-scale, application-specific logic functions where a low-pin-count, surface-mount FPGA is required.

Unique Advantages

• Compact industrial-grade package: 81-WFBGA (CSBGA) and 81-CSP (5×5) supplier package options enable high-density boards with surface-mount assembly.
• Appropriate logic density for glue logic: 520 logic elements and approximately 20,000 gates provide adequate capacity for control, interfacing, and custom finite-state implementations.
• Generous I/O count: 52 I/O pins allow direct interfacing with multiple peripherals and external logic without large external components.
• Defined supply window: Operates from 1.425 V to 1.575 V for predictable power design and voltage rail planning.
• Industrial temperature rating: Rated for -40 °C to 100 °C suitability in industrial operating environments.
• RoHS compliant: Meets RoHS environmental requirements for material compliance.

Why Choose AGLN020V5-CSG81I?

The AGLN020V5-CSG81I positions itself as a compact, industrial-grade FPGA option for designs that need moderate logic capacity, a solid I/O complement, and a small surface-mount package. Its defined supply range and wide operating temperature span make it well suited to embedded and industrial applications where board space and predictable electrical/thermal behavior matter.

Manufactured by Microchip Technology, this IGLOO nano device is a suitable choice for engineers and procurement teams specifying a compact programmable logic device for long-term deployments that require industrial-grade operating conditions and RoHS compliance.

Request a quote or submit a purchase inquiry to get pricing and availability for AGLN020V5-CSG81I.
