AGLN030V5-ZUCG81I

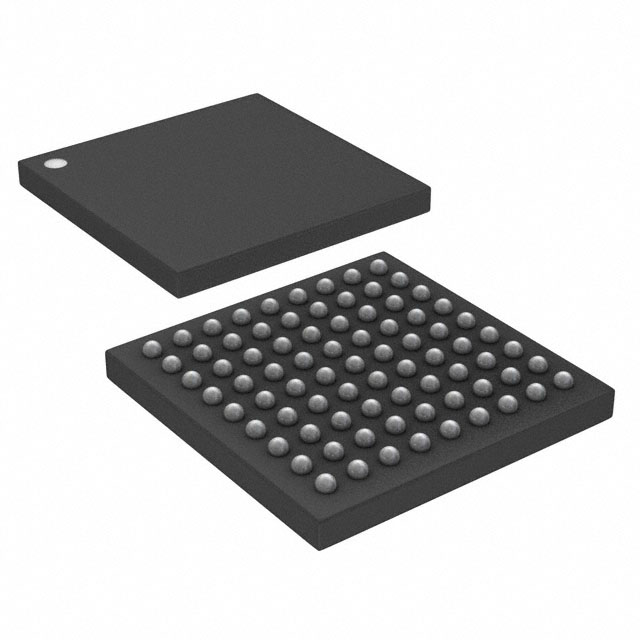

The AGLN030V5-ZUCG81I is an IGLOO nano Field Programmable Gate Array (FPGA) in an 81-WFBGA (CSBGA) surface-mount package. It provides 768 logic elements (approximately 30,000 equivalent system gates) and 66 user I/Os, targeted for industrial applications that require low-power, compact programmable logic.

As part of the IGLOO nano family, this device aligns with a low-power, flash-based FPGA architecture and is designed for integration into space-constrained, industrial-temperature designs. Key electrical and environmental parameters include a core supply range of 1.425 V to 1.575 V, RoHS compliance, and an operating temperature range of −40 °C to 100 °C.

Key Features

• Logic Capacity — 768 logic elements (equivalent to about 30,000 system gates) suitable for small to mid-density control and glue-logic tasks.
• I/O Density — 66 user I/Os provided in the packaged device to support diverse peripheral interfacing and mixed-voltage system topologies.
• Power and Supply — Core voltage support specified between 1.425 V and 1.575 V; designed for low-power operation in battery-assisted or energy-conscious systems.
• Package and Mounting — 81-WFBGA (CSBGA) package in an 81-UCSP (4×4) supplier device package; surface mount mounting type for modern PCB assembly workflows.
• Environmental Grade — Industrial-grade device with an operating temperature range from −40 °C to 100 °C, suitable for industrial ambient conditions.
• Embedded Memory — This specific device reports 0 total RAM bits; evaluate system memory requirements accordingly and consider external memory if needed.
• Compliance — RoHS compliant, supporting regulatory requirements for lead-free manufacturing.
• Family-Level Capabilities (IGLOO nano) — The IGLOO nano series provides low-power flash-based FPGA architecture featuring technologies such as Flash*Freeze low-power mode, flash-based configuration retention, and mixed-voltage I/O support; refer to family documentation for details on those features.

Typical Applications

• Industrial Control — Implement control logic, protocol bridging, and deterministic glue logic in industrial systems that require an industrial temperature rating and reliable surface-mount packaging.
• Embedded System Glue Logic — Replace multiple discrete components with programmable logic for signal conditioning, simple bus interfacing, and custom state machines.
• Sensor and I/O Aggregation — Aggregate and preprocess signals from sensors or peripherals using the device’s 66 I/Os to simplify downstream processing.
• Prototyping and Small FPGA Designs — Use the compact 81-WFBGA package and modest logic capacity to prototype or deploy cost-sensitive programmable-logic functions in constrained form factors.

Unique Advantages

• Compact, Surface-Mount Package: The 81-WFBGA (CSBGA) package and 81-UCSP (4×4) footprint enable high-density board layouts and small product enclosures.
• Industrial Temperature Rating: −40 °C to 100 °C operating range supports deployment in harsh or temperature-variable industrial environments.
• Low-Power Focus: Core supply defined in a narrow low-voltage window (1.425 V–1.575 V) for designs that prioritize energy efficiency.
• Clear Resource Footprint: 768 logic elements and 66 I/Os give designers predictable capacity for control, glue logic, and moderate combinational/sequential functions.
• Regulatory Compliance: RoHS compliance supports lead-free manufacturing and global environmental requirements.
• Backed by IGLOO nano Family Technology: Access to flash-based configuration and family-level features such as low-power modes and in-system programmability (see IGLOO nano documentation for specifics).

Why Choose AGLN030V5-ZUCG81I?

AGLN030V5-ZUCG81I is positioned for designers needing a compact, industrial-grade FPGA with a modest logic count and significant I/O capability in a surface-mount WFBGA package. Its defined core-voltage window and industrial temperature rating make it appropriate for embedded control, sensor aggregation, and board-level glue logic where small footprint and low-power operation are priorities.

Choosing this IGLOO nano device provides predictable logic resources, RoHS compliance, and alignment with a flash-based FPGA family that offers low-power operation and flash configuration retention—factors that contribute to long-term product stability and reproducible production builds.

Request a quote or submit an inquiry to obtain pricing, availability, and lead-time information for the AGLN030V5-ZUCG81I. Our team can provide support for volume purchasing and integration planning.
