AGLN060V2-ZCSG81

The AGLN060V2-ZCSG81 is an IGLOO nano low-power, flash-based Field Programmable Gate Array (FPGA) offering 1,536 logic elements and 60 user I/Os in a compact 81-ball WFBGA/CSBGA package. It combines flash configuration, low-voltage operation, and on-chip embedded memory to address designs that require retained configuration, mixed-voltage I/O flexibility, and low-power standby modes.

Key Features

• Core and Logic 1,536 logic elements (VersaTiles) and a device equivalence of approximately 60,000 system gates, suitable for modest-density programmable logic tasks.
• Embedded Memory Approximately 18 kbits of on-chip SRAM (18,432 total RAM bits) plus flash-based user nonvolatile memory for configuration retention.
• I/O and Voltage Support 60 user I/Os with support for mixed-voltage operation across common I/O standards; device-level supply range specified at 1.14 V to 1.575 V.
• Low-Power Operation Flash*Freeze technology and low-voltage core support enable ultra-low power consumption and retained FPGA content while powered down.
• Security and In-System Programming In-system programming (ISP) support using on-chip 128-bit AES decryption via JTAG and FlashLock® for secured configuration storage.

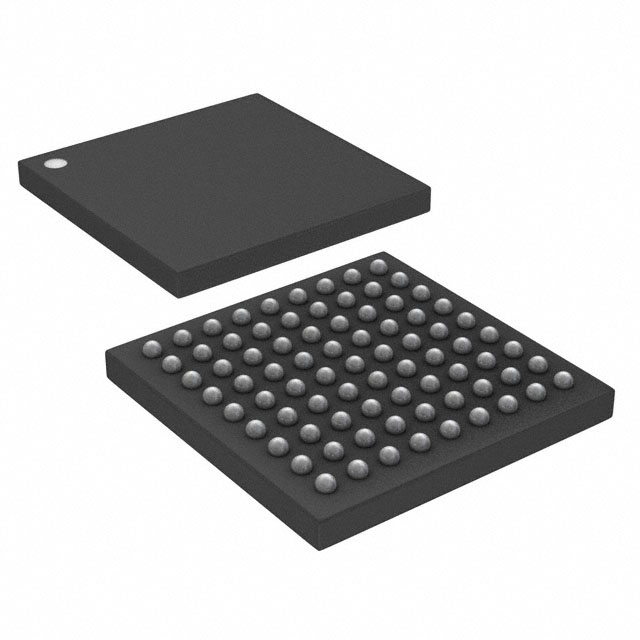

• Package and Mounting Available in an 81-WFBGA/CSBGA package (supplier 81-CSP, 5×5), surface-mountable for space-constrained board layouts.
• Operating Conditions Commercial grade operation with an ambient/ junction range of −20°C to +85°C; RoHS compliant.

Typical Applications

• Low-Power Systems Embedded designs that require retained configuration and ultra-low standby consumption benefit from Flash*Freeze and flash-based configuration.
• Mixed-Voltage Interfaces Systems that must bridge or interface components operating at different I/O voltages can utilize the device’s mixed-voltage I/O support.
• Control and Glue Logic Compact FPGA-based control, protocol translation, and interface glue logic where moderate gate density and multiple I/Os are required.
• Secure In-System Programmable Designs Applications needing protected configuration updates and in-field reprogramming can use on-chip AES ISP and FlashLock features.

Unique Advantages

• Flash-Based Nonvolatile Configuration: Retains programmed design when powered off, eliminating external configuration memory and simplifying system startup.
• Low-Voltage, Low-Power Operation: Core supply range and Flash*Freeze capability reduce system power for battery-operated or energy-sensitive applications.
• Secure Field Updates: On-chip 128-bit AES decryption for JTAG ISP and FlashLock provide a path for secure, in-system firmware updates.
• Compact, Surface-Mount Package: 81-ball WFBGA/CSBGA (81-CSP 5×5) package supports high-density board layouts while keeping a small PCB footprint.
• Balanced I/O and Memory Resources: Sixty I/Os and approximately 18 kbits of embedded RAM enable practical integration of interface logic and small buffering needs.

Why Choose AGLN060V2-ZCSG81?

The AGLN060V2-ZCSG81 positions itself as a compact, low-power flash FPGA option for designs that need retained configuration, secure in-system programming, and flexible I/O in a commercial temperature range. With 1,536 logic elements, approximately 18 kbits of embedded RAM, and 60 user I/Os in a small 81-ball package, it is well suited to developers balancing logic capacity, power budget, and board-area constraints.

Choose this device when your design requires flash-based nonvolatile configuration, moderate programmable logic density, and mixed-voltage interface capability backed by in-system programming and security features.

Request a quote or submit an inquiry to obtain pricing, lead times, and availability for the AGLN060V2-ZCSG81.
