AGLP030V2-CS289

The AGLP030V2-CS289 is an IGLOO PLUS Field Programmable Gate Array (FPGA) IC from Microchip Technology. It provides reprogrammable digital logic with 792 logic elements and up to 120 general-purpose I/O in a compact BGA package.

This device is suited to commercial designs that require moderate logic capacity, a high I/O count and low-voltage operation within a standard commercial temperature range.

Key Features

• Core Logic  792 logic elements and approximately 30,000 gates provide mid-density configurable logic suitable for glue logic, protocol handling and custom control functions.
• I/O Capability  Up to 120 I/O pins support interfacing to external peripherals, sensors and other digital subsystems.
• Memory  Total on-chip RAM bits: 0 — device architecture focuses on configurable logic and I/O rather than embedded RAM resources.
• Power  Operates from a low-voltage supply range of 1.14 V to 1.575 V, enabling integration into modern low-voltage system rails.

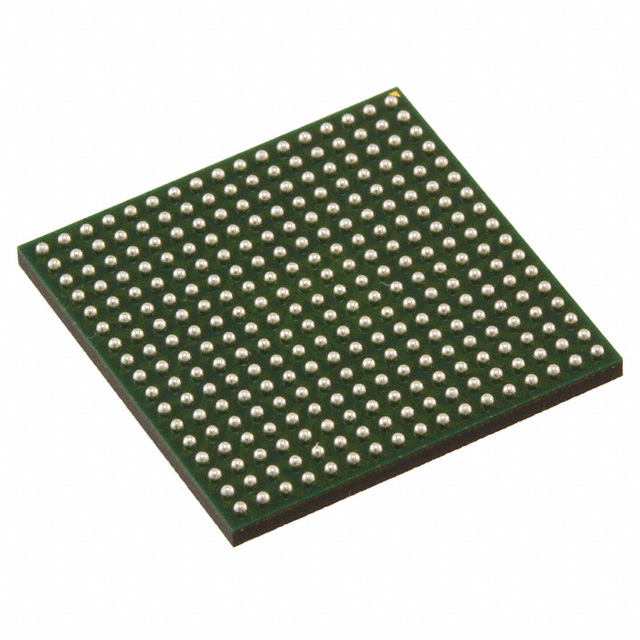

• Package & Mounting  Available in a 289-TFBGA / CSBGA package and noted as 289-CSP (14×14) supplier device package; designed for surface-mount assembly.
• Temperature & Grade  Commercial grade operation with an operating temperature range of 0°C to 85°C.
• Compliance  RoHS compliant for regulatory and environmental conformity.

Typical Applications

• Prototyping and Development  Use the AGLP030V2-CS289 for development of mid-density programmable logic functions where 792 logic elements and 120 I/O provide flexibility for iterative designs.
• Interface and Glue Logic  Implement bus bridging, signal conditioning and protocol translation leveraging the device's high I/O count and configurable logic resources.
• Compact Embedded Systems  The 289-TFBGA/CSBGA package and surface-mount form factor suit compact PCBs and space-constrained modules requiring moderate programmable logic.
• Commercial Electronics  Designed for applications that operate within commercial temperature ranges and require RoHS-compliant components.

Unique Advantages

• Moderate Logic Density: 792 logic elements and ~30,000 gates provide a balanced platform for mid-complexity digital functions without overspecifying resources.
• High I/O Count: 120 I/O pins enable broad external connectivity for sensors, interfaces and peripheral devices, reducing the need for external multiplexers.
• Low-Voltage Operation: 1.14 V to 1.575 V supply compatibility supports integration with modern low-voltage system architectures.
• Compact Surface-Mount Package: 289-TFBGA / 289-CSP (14×14) packaging delivers a small footprint for space-constrained designs while supporting standard SMT assembly.
• Commercial Temperature Rating: Rated 0°C to 85°C for reliable operation in mainstream commercial environments.
• RoHS Compliant: Meets RoHS requirements for environmentally conscious product designs.

Why Choose AGLP030V2-CS289?

The AGLP030V2-CS289 positions itself as a practical IGLOO PLUS FPGA option for engineers seeking a compact, mid-density programmable logic device with a strong I/O count and low-voltage operation. Its combination of 792 logic elements, 120 I/O and a small BGA package makes it well suited to commercial embedded systems, interface aggregation and prototype platforms.

Backed by Microchip Technology's IGLOO PLUS lineage, this part offers a clear balance of integration and footprint for projects where moderate logic capacity, power-rail compatibility and RoHS compliance are key selection factors.

Request a quote or submit an inquiry to check availability and pricing for AGLP030V2-CS289.
