AGLP030V2-CS289I

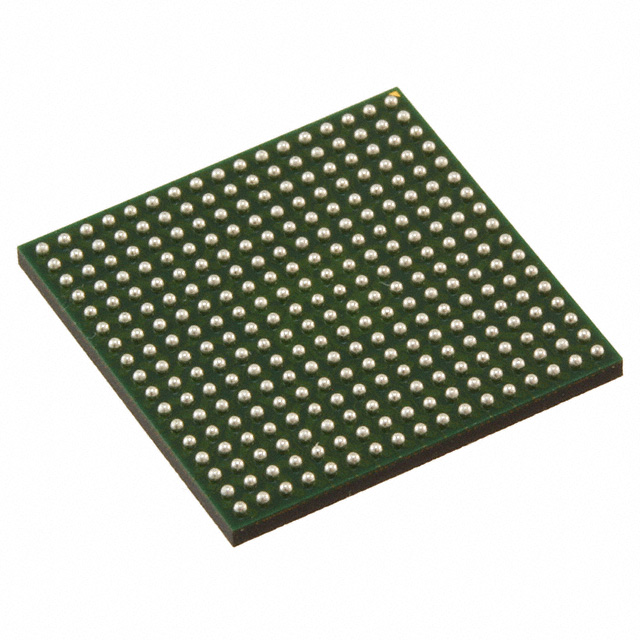

The AGLP030V2-CS289I is an IGLOO PLUS field programmable gate array in a 289-TFBGA (CSBGA) package, offering 792 logic elements and 120 user I/Os in a surface-mount form factor. Rated for industrial use with an operating temperature range from -40°C to 100°C and a low-voltage supply range of 1.14 V to 1.575 V, it is intended for embedded designs that require a compact, low-voltage FPGA solution.

Key Features

• Logic Resources  792 logic elements providing the programmable logic capacity for custom digital functions; approximately 30,000 equivalent gates reported.
• I/O  120 user I/Os suitable for driving and interfacing multiple peripherals and buses from a single device.
• Power  Operates from a 1.14 V to 1.575 V supply range, supporting modern low-voltage power architectures.
• Package & Mounting  289-TFBGA (CSBGA) supplier device package 289-CSP (14×14) in a surface-mount form factor for compact PCB integration.
• Industrial Temperature Range  Qualified for operation from -40°C to 100°C, suitable for industrial environments requiring extended temperature tolerance.
• RoHS Compliance  RoHS compliant, meeting common environmental and lead-free manufacturing requirements.

Typical Applications

• Industrial Control  Use the FPGA’s logic capacity and 120 I/Os to implement custom control logic and I/O interfacing in industrial automation equipment.
• Embedded Systems  Integrate the device in compact embedded designs that require a surface-mount FPGA with a small BGA footprint and low-voltage operation.
• I/O Expansion and Glue Logic  Deploy as a programmable bridge or I/O expander where flexible signal routing and customization are needed on dense PCBs.

Unique Advantages

• Compact BGA Package: The 289-TFBGA (14×14) package minimizes PCB area while providing substantial I/O count and logic capacity.
• Industrial Temperature Capability: Rated from -40°C to 100°C for reliable operation across a wide range of environmental conditions.
• Low-Voltage Operation: 1.14 V to 1.575 V supply compatibility supports integration with modern low-voltage power rails.
• Substantial I/O Density: 120 user I/Os enable versatile interfacing options for sensors, peripherals, and external logic.
• RoHS Compliant: Facilitates adherence to lead-free manufacturing and environmental regulations.

Why Choose AGLP030V2-CS289I?

The AGLP030V2-CS289I positions itself as a compact, industrial-grade IGLOO PLUS FPGA that balances programmable logic capacity, high I/O density, and low-voltage operation in a small surface-mount BGA package. It is suited to engineers and designers building industrial and embedded systems that require reliable operation across an extended temperature range and tight PCB real estate.

With 792 logic elements, roughly 30,000 equivalent gates, and 120 I/Os, the device provides a practical, integrated option for custom logic, I/O expansion, and control tasks while aligning with RoHS requirements and common surface-mount assembly practices.

Request a quote or submit your requirements to receive pricing and availability information for the AGLP030V2-CS289I.
