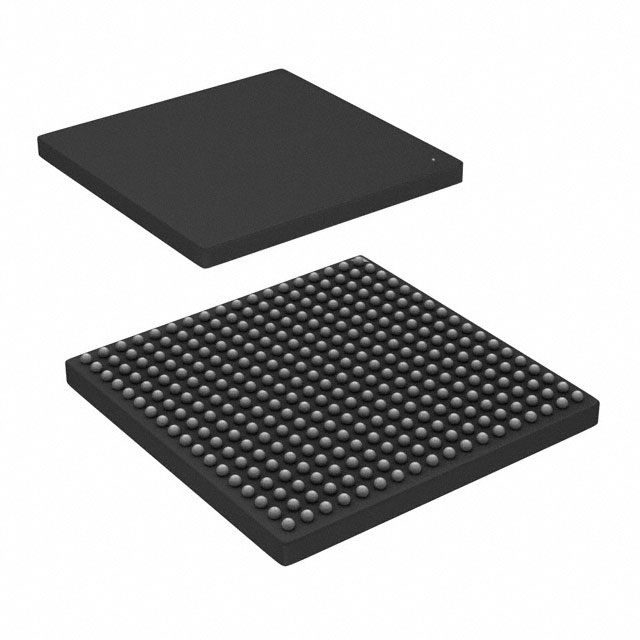

M2GL050TS-FCSG325
| Part Description |
IGLOO2 Field Programmable Gate Array (FPGA) IC 200 1869824 56340 325-TFBGA, FCBGA |
|---|---|
| Quantity | 7 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 325-FCBGA (11x11) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 325-TFBGA, FCBGA | Number of I/O | 200 | Voltage | 1.14 V - 2.625 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 56340 | Number of Logic Elements/Cells | 56340 | ||
| Number of Gates | N/A | ECCN | 3A991B2 | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 1869824 |
Overview of M2GL050TS-FCSG325 – IGLOO2 FPGA, 200 I/Os, 325-TFBGA
The M2GL050TS-FCSG325 is a Field Programmable Gate Array (FPGA) IC from the IGLOO2 family. It provides a balance of logic capacity, embedded memory, and I/O count in a compact 325-ball FCBGA package for commercial-grade programmable logic designs.
Resources on-chip include 56,340 logic elements and approximately 1.87 Mbits of embedded memory, with flexible supply-voltage support and a surface-mount 325-FCBGA (11×11) package.
Key Features
- Core Logic 56,340 logic elements suitable for mid-range programmable logic implementations.
- Embedded Memory Approximately 1.87 Mbits of on-chip RAM for data buffering, state storage, and lookup tables.
- I/O Count 200 user I/Os to support multiple external interfaces and peripheral connections.
- Power and Voltage Wide supply-voltage range from 1.14 V to 2.625 V to accommodate different I/O standards and power domains.
- Package and Mounting 325-TFBGA / 325-FCBGA footprint (supplier package: 325-FCBGA, 11×11) optimized for surface-mount PCB assembly.
- Operating Range Commercial operating temperature range of 0 °C to 85 °C for standard application environments.
- Compliance RoHS compliant to support environmentally conscious designs and manufacturing requirements.
Unique Advantages
- High logic capacity: 56,340 logic elements enable substantial on-chip logic integration, reducing the need for external glue logic.
- Significant on-chip RAM: Approximately 1.87 Mbits of embedded memory supports complex buffering and stateful functions inside the FPGA fabric.
- Generous I/O resources: 200 I/Os provide flexibility for multi-interface designs and parallel peripheral connections.
- Flexible supply-voltage range: 1.14 V to 2.625 V allows integration into a variety of power architectures and I/O standards.
- Compact surface-mount package: 325-FCBGA (11×11) offers a space-efficient footprint for dense PCB layouts.
- Commercial-grade suitability: Specified 0 °C to 85 °C operating range matches typical consumer and industrial-adjacent applications.
Why Choose M2GL050TS-FCSG325?
The M2GL050TS-FCSG325 positions itself as a solid mid-range FPGA option, combining 56,340 logic elements, approximately 1.87 Mbits of embedded RAM, and 200 I/Os in a compact 325-FCBGA package. Its wide supply-voltage range and RoHS compliance make it adaptable for a variety of commercial designs where on-chip logic density and I/O flexibility matter.
This device is well suited to engineers and procurement teams designing systems that require a balance of logic resources, embedded memory, and a high I/O count in a surface-mount package. Its specification set supports scalable designs that demand reliable, verifiable FPGA resources within a commercial temperature envelope.
Request a quote or submit an inquiry for pricing and availability of the M2GL050TS-FCSG325.
