M2GL050TS-FG896

The M2GL050TS-FG896 is an IGLOO2 Field Programmable Gate Array (FPGA) from Microchip Technology offered in a commercial-grade, surface-mount 896-BGA package. It delivers 56,340 logic elements alongside approximately 1.87 Mbits of embedded RAM and 377 user I/Os, providing a balanced mix of logic density, on-chip memory and I/O capability for commercial embedded designs.

Designed for systems operating within a 1.14 V to 2.625 V supply range and 0 °C to 85 °C ambient, this device is suited to commercial applications where integration, I/O count and configurable logic resources are primary design drivers.

Key Features

• Core Logic 56,340 logic elements provide substantial programmable logic resources for implementing control, signal processing and glue-logic functions.
• Embedded Memory Approximately 1.87 Mbits of on-chip RAM to support buffering, FIFOs and intermediate data storage without external memory.
• I/O Capacity 377 user I/Os enable broad peripheral connectivity and interface integration directly at the FPGA package.
• Power Supply Range Supports operation across a 1.14 V to 2.625 V supply window to accommodate common FPGA core and I/O voltage schemes.

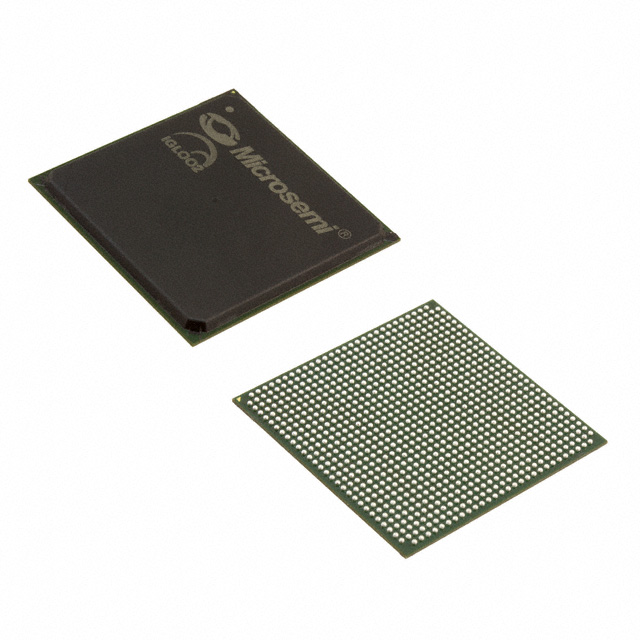

• Package & Mounting Available in an 896-BGA package (supplier device package: 896-FBGA (31x31)) with surface-mount mounting type for compact board layouts.
• Operating Conditions Commercial-grade operating temperature range from 0 °C to 85 °C.
• Environmental Compliance RoHS-compliant construction to meet standard lead-free manufacturing requirements.

Typical Applications

• Commercial Embedded Systems — Use the device to implement control logic, protocol bridging and custom peripherals in commercial products where programmable logic and moderate on-chip memory are required.
• Interface and Connectivity Modules — Leverage 377 I/Os to integrate multiple interfaces and I/O standards on a single FPGA for board-level consolidation.
• Signal Conditioning and Data Buffering — Deploy the on-chip RAM and logic elements for intermediate data processing, buffering and format conversion tasks.

Unique Advantages

• High Logic Density: 56,340 logic elements enable complex designs or multiple functions within a single device, reducing the need for additional discrete logic.
• Substantial On-Chip Memory: Approximately 1.87 Mbits of embedded RAM reduce reliance on external memory for many buffering and FIFO use cases.
• Extensive I/O Count: 377 user I/Os allow flexible connectivity and simplify board-level routing by consolidating interfaces into one package.
• Compact BGA Package: 896-BGA (896-FBGA (31x31)) supports dense PCB integration while providing the pin count needed for complex designs.
• Commercial-Grade Availability: Rated for 0 °C to 85 °C operation and RoHS compliant to align with standard commercial manufacturing and deployment requirements.

Why Choose M2GL050TS-FG896?

The M2GL050TS-FG896 positions itself as a practical choice for commercial designers seeking a balance of logic capacity, embedded memory and a high I/O count in a single FPGA package. Its combination of 56,340 logic elements, approximately 1.87 Mbits of RAM and 377 I/Os makes it well suited to consolidating functions and reducing bill-of-materials in medium-complexity designs.

For teams focused on commercial embedded applications that require a surface-mount 896-BGA FPGA with a defined operating voltage range and temperature window, this IGLOO2 device provides a clear, verifiable specification set and RoHS compliance to support production deployment.

Request a quote or submit an inquiry to receive pricing and availability information for the M2GL050TS-FG896.
