M2GL060T-1VFG784

The M2GL060T-1VFG784 is an IGLOO2 FPGA from Microchip Technology that combines a LUT-based FPGA fabric with embedded memory and high-performance I/O resources. This device provides 56,520 logic elements, approximately 1.87 Mbits of embedded RAM, and 395 user I/Os in a 784-ball FBGA (23 × 23) surface-mount package.

Designed for applications that require programmable logic, integrated memory subsystems and advanced I/O, the M2GL060T operates from a nominal core supply of 1.14 V to 1.26 V and is specified for commercial temperature operation (0 °C to 85 °C). The device is RoHS compliant.

Key Features

• FPGA Fabric and Math Blocks — Industry-standard 4-input LUT-based fabric with integrated math blocks for implementing custom logic and arithmetic functions; total of 56,520 logic elements.
• Embedded Memory — Approximately 1.87 Mbits of on-chip RAM complemented by IGLOO2 memory subsystem features; datasheet references on-chip flash and a 32 KB embedded SRAM in the family architecture.
• I/O and High-Speed Interfaces — 395 user I/Os provided in the 784-FBGA package; IGLOO2 family documentation includes support for high-performance SerDes lanes and memory interface standards.
• Power and Voltage — Core operating voltage range specified at 1.14 V to 1.26 V, leveraging low-power flash-based FPGA technology described in the IGLOO2 family materials.

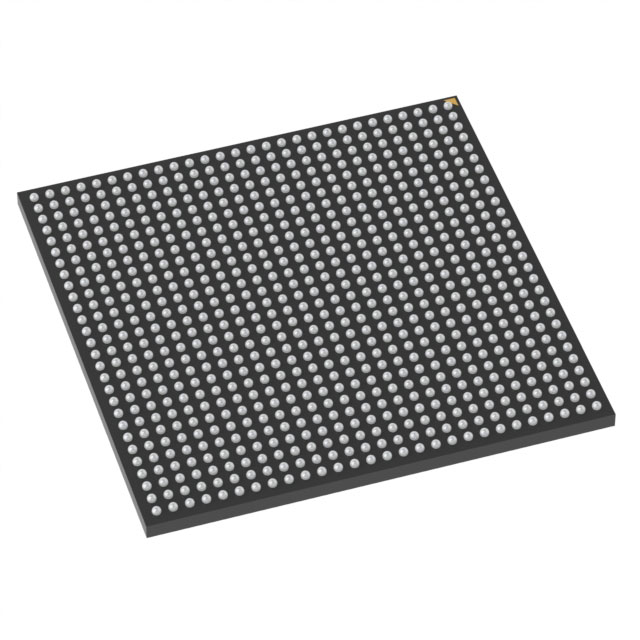

• Package and Mounting — 784-FBGA (supplier package: 784-VFBGA, 23 × 23) surface-mount package for compact board-level integration.
• Temperature and Grade — Commercial temperature grade (0 °C to 85 °C) suitable for consumer and commercial electronics applications.
• Security and Reliability Primitives — IGLOO2 family documentation lists embedded NVM characteristics and security primitives such as NRBG and cryptographic block characteristics.
• Standards and Compliance — RoHS compliant.

Typical Applications

• High-speed communications — Use the device’s large logic capacity and documented SerDes-capable interfaces for protocol bridging, packet processing or line interface functions.
• Memory interface and buffering — Leverage the IGLOO2 family’s hard DDR3 memory controller capability and on-chip RAM for memory buffering and interface logic.
• Embedded acceleration — Implement custom arithmetic and signal-processing blocks using the integrated math resources and abundant logic elements.
• Secure edge devices — Employ on-chip non-volatile memory and documented security primitives for secure boot, key storage or entropy sources.

Unique Advantages

• Substantial logic capacity: 56,520 logic elements provide a balance of integration density for mid-range FPGA designs.
• Integrated memory resources: Approximately 1.87 Mbits of embedded RAM plus the IGLOO2 family’s on-chip flash and SRAM architectural elements reduce external memory requirements.
• High I/O count in a compact package: 395 I/Os in a 784-FBGA (23 × 23) surface-mount footprint supports dense board designs with broad connectivity.
• Low-voltage core operation: 1.14 V to 1.26 V supply range aligns with low-power FPGA deployment and system power-rail planning.
• Security-oriented features: Family-level documentation details embedded NVM, NRBG and cryptographic blocks to support secure design requirements.
• Commercial-grade operating range: Specified for 0 °C to 85 °C to match consumer and commercial product environments.

Why Choose M2GL060T-1VFG784?

The M2GL060T-1VFG784 delivers a practical combination of logic density, embedded memory and high I/O count in a compact 784-FBGA package. As part of the IGLOO2 family, it is architected to support designs that require programmable logic alongside integrated memory subsystems and documented high-performance interface capabilities.

This device is suited for engineers developing commercial electronics, communications equipment and embedded acceleration solutions who need a surface-mount FPGA with substantial on-chip resources, low-voltage core operation, and family-level security and memory features documented in the datasheet.

If you would like pricing or availability, request a quote or submit an inquiry to begin procurement or technical evaluation for the M2GL060T-1VFG784.
