M2GL060T-1VFG784I

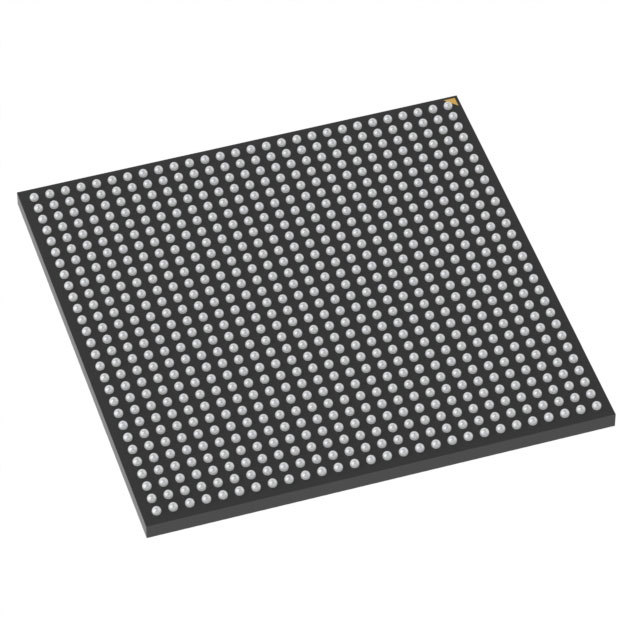

The M2GL060T-1VFG784I is an IGLOO2 FPGA from Microchip Technology offered in a 784-FBGA surface-mount package. It combines a LUT-based FPGA fabric with family-level capabilities such as integrated math blocks, multiple embedded memory blocks and high-performance SerDes communication interfaces.

Designed for industrial applications, this device provides a balance of logic capacity, embedded memory and extensive I/O in a compact 23 × 23 mm package, with low-voltage operation and wide operating temperature support.

Key Features

• Logic Capacity 56,520 logic elements (LEs) to implement medium-to-large FPGA designs.
• Embedded Memory Approximately 1.87 Mbits of on-chip RAM for data buffering and local storage.
• I/O and Package 395 user I/Os in a 784-VFBGA (23 × 23 mm) surface-mount package for dense external connectivity.
• Low-Voltage Operation Supply voltage range: 1.14 V to 1.26 V to support low-power system designs.
• Thermal and Grade Industrial grade with an operating temperature range of −40 °C to 100 °C for deployment in demanding environments.
• Family-Level Fabric Features IGLOO2 family integrates a 4-input LUT-based fabric with integrated math blocks, multiple embedded memory blocks and high-performance SerDes interfaces (family-level capability cited in the datasheet).
• Compliance RoHS compliant.

Typical Applications

• Industrial Control Systems Industrial-temperature rating and 395 I/Os support complex sensor and actuator interfacing for factory automation and motion control.
• Communications and Networking Family-level SerDes and abundant I/O enable protocol bridging, packet processing and high-speed link implementations.
• Embedded Memory and Data Handling On-chip RAM (~1.87 Mbits) and the IGLOO2 memory subsystem make the device suitable for buffering, data aggregation and in-line processing tasks.

Unique Advantages

• High Logic Density: 56,520 logic elements provide substantial programmable resources for complex logic and state machines.
• Extensive I/O in a Compact Package: 395 I/Os in a 23 × 23 mm 784-VFBGA enable dense connectivity while minimizing PCB footprint.
• Industrial Temperature Range: −40 °C to 100 °C operation supports deployment in harsh and temperature-variable environments.
• Low-Voltage System Compatibility: Narrow supply range (1.14 V–1.26 V) facilitates integration in low-power system architectures.
• Family-Level Integration: IGLOO2 family architecture includes integrated math blocks, embedded memory blocks and high-performance SerDes interfaces, helping reduce external component count for applicable designs.
• Regulatory Compliance: RoHS compliance supports environmental and manufacturing requirements.

Why Choose M2GL060T-1VFG784I?

The M2GL060T-1VFG784I delivers a robust combination of logic capacity, embedded memory and extensive I/O in an industrial-grade FBGA package. Its low-voltage operation and family-level fabric features make it suitable for embedded systems, communications modules and industrial control applications that require reliable performance across a wide temperature range.

For teams designing systems that need substantial programmable logic, on-chip memory and high-density external connectivity in a compact form factor, this IGLOO2 device provides a practical balance of integration, performance and environmental durability with the backing of Microchip’s IGLOO2 family specifications.

Request a quote or submit an inquiry to receive pricing and availability for M2GL060T-1VFG784I.
