M2GL150TS-FC1152
| Part Description |

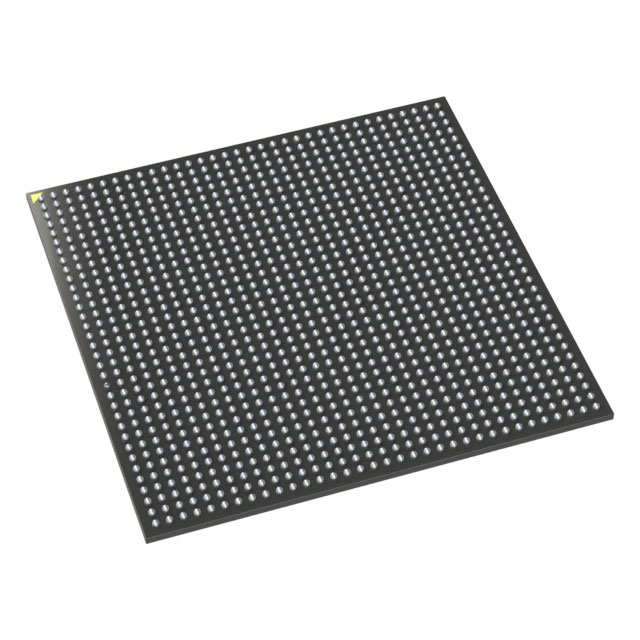

IGLOO2 Field Programmable Gate Array (FPGA) IC 574 5120000 146124 1152-BBGA, FCBGA |
|---|---|
| Quantity | 436 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 1152-FCBGA (35x35) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 1152-BBGA, FCBGA | Number of I/O | 574 | Voltage | 1.14 V - 2.625 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS non-compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 146124 | Number of Logic Elements/Cells | 146124 | ||
| Number of Gates | N/A | ECCN | 3A001A7A | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 5120000 |
Overview of M2GL150TS-FC1152 – IGLOO2 Field Programmable Gate Array (FPGA), 1152‑FCBGA
The M2GL150TS-FC1152 is an IGLOO2 Field Programmable Gate Array (FPGA) offered in a 1,152-ball FCBGA package. Designed for commercial-grade embedded designs, it provides a large logic fabric and extensive I/O to support complex digital integration and system interfacing.
With 146,124 logic elements, approximately 5.12 Mbits of embedded memory and 574 I/O, this device targets designs that require high logic density, substantial on-chip memory, and broad external connectivity while operating within a 1.14 V to 2.625 V supply range.
Key Features
- Core Logic IGLOO2 FPGA architecture offering 146,124 logic elements for implementing complex digital functions and custom logic.
- Embedded Memory Approximately 5.12 Mbits of on-chip RAM to support buffering, state storage, and data processing without external memory in many use cases.
- I/O Capacity 574 general-purpose I/O pins to connect with a wide range of peripherals, interfaces and external devices.
- Power Supply Wide supply range from 1.14 V to 2.625 V, allowing flexibility in system power architectures and interfacing levels.
- Package & Mounting 1152‑FCBGA (35×35) supplier device package in a surface-mount form factor for compact board-level integration.
- Operating Range & Grade Commercial grade with an operating temperature range of 0 °C to 85 °C suitable for standard commercial applications.
- Environmental Compliance RoHS compliant, meeting common environmental and materials requirements for commercial products.
Typical Applications
- High-density digital integration Implement large, customized digital functions where ~146k logic elements enable consolidation of multiple subsystems into a single FPGA.
- I/O-rich interface bridging Use the 574 I/O pins for protocol conversion, multi-interface aggregation, or board-level signal routing in mixed-signal systems.
- Embedded memory-dependent logic Leverage approximately 5.12 Mbits of embedded RAM for buffering, packet handling, and stateful logic without immediate need for large external memories.
- Compact board-level designs The 1152‑FCBGA (35×35) surface-mount package supports dense, space-constrained layouts while maintaining robust connectivity.
Unique Advantages
- Substantial logic capacity: 146,124 logic elements enable complex, high-function-count designs and reduce the need for multiple discrete devices.
- Generous on-chip memory: Approximately 5.12 Mbits of embedded RAM supports data buffering and local storage to simplify system memory architectures.
- Extensive I/O availability: 574 I/O pins provide flexible connectivity for sensors, transceivers, and peripheral interfaces.
- Flexible supply range: 1.14 V to 2.625 V operation accommodates a variety of logic-level domains and power-rail configurations.
- Board-level integration: 1152‑FCBGA (35×35) surface-mount package balances pin count and compact footprint for dense PCB designs.
- Commercial readiness and compliance: Commercial grade operation (0 °C to 85 °C) and RoHS compliance simplify qualification for mainstream products.
Why Choose M2GL150TS-FC1152?
The M2GL150TS-FC1152 positions itself as a high-capacity, I/O-rich FPGA option for commercial embedded systems that require substantial configurable logic and on-chip memory. Its combination of 146,124 logic elements, approximately 5.12 Mbits of RAM and 574 I/O pins enables consolidation of complex functions and flexible interfacing within a single device.
Engineers and product teams developing space-conscious, connectivity-heavy designs will find the 1152‑FCBGA package and wide supply range useful for integrating this FPGA into diverse board-level architectures. RoHS compliance and a commercial operating range further align the device with standard product development and manufacturing flows.
Request a quote or submit a pricing inquiry today to evaluate the M2GL150TS-FC1152 for your next commercial FPGA design project.
