M2GL150TS-1FCV484M

The M2GL150TS-1FCV484M is an IGLOO2 family Field Programmable Gate Array (FPGA) from Microchip Technology. It provides a high-density, military-grade programmable logic solution with a large logic element count, significant on-chip memory, and broad I/O capability suitable for harsh-environment electronic systems.

Designed for applications that require MIL-STD-883 qualification and extended temperature operation, this FPGA combines 146,124 logic elements, approximately 5.12 Mbits of embedded memory, and 248 I/O in a compact 484-BFBGA surface-mount package.

Key Features

• Programmable Logic Capacity — 146,124 logic elements provide substantial on-chip logic for complex functions and custom hardware implementations.
• Embedded Memory — Approximately 5.12 Mbits of on-chip RAM to support data buffering, state storage, and memory-intensive logic tasks.
• High I/O Count — 248 user I/O pins to interface with multiple peripherals, sensors, and external devices.
• Power and Voltage Flexibility — Operates across a supply range of 1.14 V to 2.625 V to accommodate a variety of core and I/O voltage domains.
• Military Qualification and Extended Temperature — Military grade with MIL-STD-883 qualification and an operating temperature range of −55 °C to 125 °C for reliable operation in demanding environments.

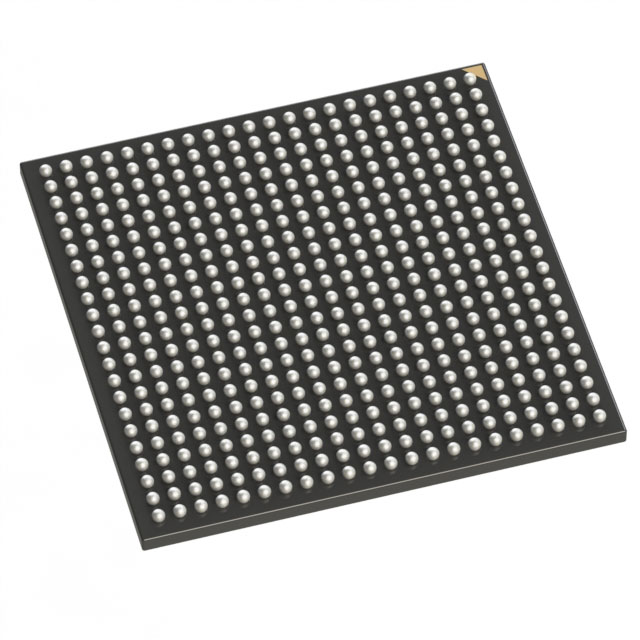

• Package and Mounting — 484-BFBGA package (484-FBGA, 19×19) in a surface-mount configuration for compact board-level integration.
• Regulatory Compliance — RoHS compliant, meeting common environmental requirements for lead-free assemblies.

Typical Applications

• Military and Defense Systems — Suitable for mission-critical electronics that require MIL-STD-883 qualification and extended −55 °C to 125 °C operation.
• Aerospace and Avionics — Applicable where qualified components and wide temperature margins are required for reliable airborne electronics.
• Rugged Embedded Platforms — Fits embedded systems operating in harsh environments that benefit from high logic density and robust qualification.
• High-density I/O Designs — Ideal for applications needing extensive external interfacing with up to 248 I/O pins.

Unique Advantages

• High Logic Integration: 146,124 logic elements enable consolidation of complex functions onto a single device, reducing overall system complexity.
• Significant On-chip Memory: Approximately 5.12 Mbits of embedded RAM supports local buffering and state retention without external memory dependency.
• Qualification for Harsh Environments: MIL-STD-883 qualification and a wide operating temperature range support deployment in demanding military and aerospace applications.
• Broad I/O Capability: 248 I/O pins provide flexible connectivity for multi-channel interfaces and peripheral integration.
• Compact, Surface-mount Package: The 484-BFBGA (19×19) package offers a space-efficient footprint for board-level designs.
• RoHS Compliance: Meets environmental lead-free requirements for modern manufacturing processes.

Why Choose M2GL150TS-1FCV484M?

The M2GL150TS-1FCV484M positions itself as a high-density, military-qualified FPGA option for designers who need substantial logic resources, embedded memory, and extensive I/O in a rugged package. Its MIL-STD-883 qualification and −55 °C to 125 °C operating range make it appropriate for systems where reliability under extreme conditions is a priority.

Backed by Microchip Technology, this device is suited for engineering teams developing defense, aerospace, and other rugged embedded solutions that require a combination of performance, integration, and qualification. The part’s voltage flexibility, package density, and RoHS compliance contribute to long-term manufacturability and system-level design stability.

Request a quote or submit an inquiry for the M2GL150TS-1FCV484M to receive pricing and availability details for your project.
