M2GL150TS-1FCV484

The M2GL150TS-1FCV484 is an IGLOO2 field programmable gate array (FPGA) from Microchip Technology. It provides 146,124 logic elements and approximately 5.12 Mbits of embedded memory in a 484-BFBGA package.

With 248 general-purpose I/O pins, a wide supply voltage window (1.14 V to 2.625 V) and a commercial operating temperature range of 0 °C to 85 °C, this device suits designs requiring substantial on-chip logic capacity and embedded RAM while remaining RoHS compliant.

Key Features

• Core Logic — 146,124 logic elements for implementing complex digital logic and custom architectures.
• Embedded Memory — Approximately 5.12 Mbits of on-chip RAM to support buffering, state machines, and data storage without external memory.
• I/O Capacity — 248 I/O pins to interface with peripherals, sensors, and other system components.
• Power Supply Range — Operates from 1.14 V to 2.625 V, enabling flexibility in system power architectures.

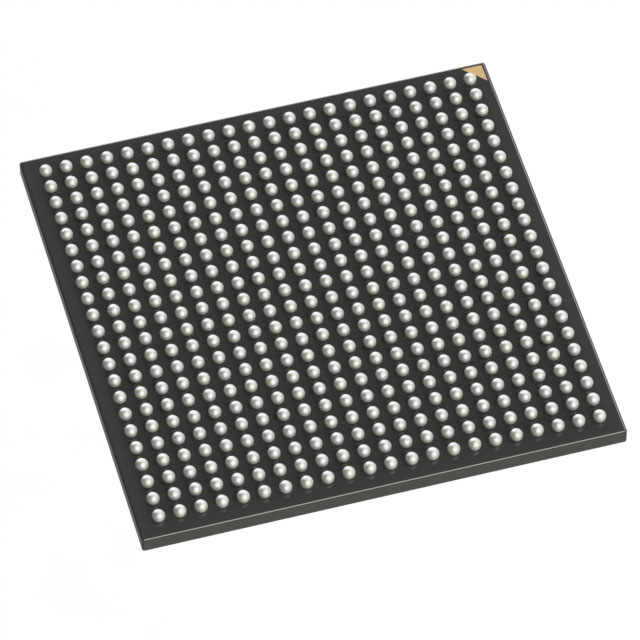

• Package — 484-BFBGA (484-FBGA, 19×19) surface-mount package for high-density board designs.
• Operating Temperature — Commercial grade operation from 0 °C to 85 °C for standard environmental conditions.
• Regulatory Compliance — RoHS compliant, supporting regulatory requirements for lead-free assemblies.

Unique Advantages

• Substantial Logic Density: 146,124 logic elements enable implementation of large or multiple concurrent functions on a single device, reducing board-level complexity.
• Integrated On-Chip RAM: Approximately 5.12 Mbits of embedded memory minimizes dependence on external memory, lowering BOM and improving latency.
• High I/O Count: 248 I/O pins provide ample connectivity for complex systems and extensive peripheral interfacing.
• Flexible Power Options: Wide supply voltage range supports diverse system power schemes and integration with various power rails.
• Compact, High-Density Package: 484-BFBGA (19×19) surface-mount package conserves PCB area while supporting dense routing and signal distribution.
• Commercial Temperature Rating: Rated 0 °C to 85 °C for designs targeting standard commercial environments.

Why Choose M2GL150TS-1FCV484?

The M2GL150TS-1FCV484 combines a high logic element count, significant on-chip memory, and a large I/O complement in a compact 484-BFBGA package, delivering a balanced platform for designs that require substantial programmable logic and embedded RAM. Its wide supply voltage window and RoHS compliance further support flexible system integration and regulatory needs.

This FPGA is suited to teams and projects seeking a commercially graded device with ample resources for implementing complex digital functions, on-chip data storage, and extensive external interfacing while maintaining compact board footprint and standard operating temperature ranges.

Request a quote or submit a purchase inquiry to receive pricing and availability for the M2GL150TS-1FCV484.
