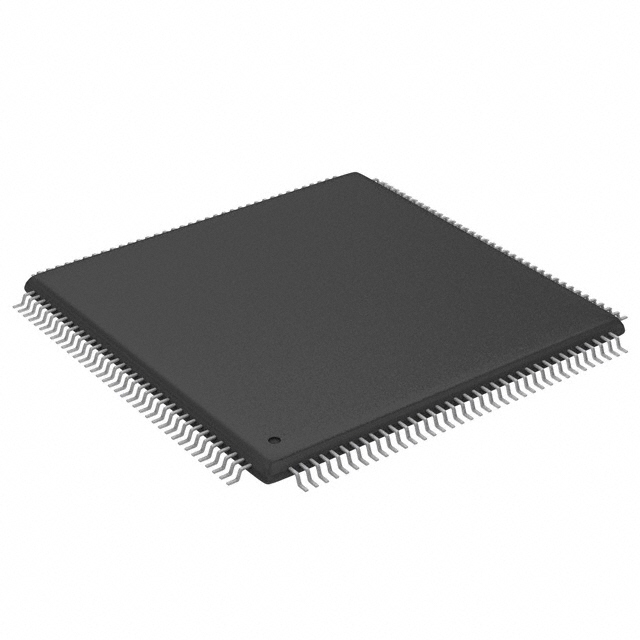

XC4005XL-1TQ144C

The XC4005XL-1TQ144C is a field programmable gate array (FPGA) IC from AMD in the XC4000E/X family, packaged in a 144-LQFP surface-mount package. It provides a compact, commercial-grade programmable logic solution with 466 logic elements, 6,272 bits of on-chip RAM and 112 general-purpose I/O suitable for embedded digital designs.

With a 3.0 V to 3.6 V supply range and an operating temperature of 0 °C to 85 °C, this device targets commercial applications that require moderate logic capacity, on-chip memory, and a high I/O count in a 144-pin TQFP footprint.

Key Features

• Core Logic 466 logic elements and an approximate gate-equivalent count of 5,000 provide the programmable fabric for implementing glue logic, control state machines, and custom digital functions.
• On-Chip Memory 6,272 bits of embedded RAM for small FIFO buffers, lookup tables, and temporary data storage directly within the FPGA fabric.
• I/O Capability 112 user I/O pins support flexible interfacing with peripherals, sensors, and external logic in compact designs.
• Power Operates from a 3.0 V to 3.6 V supply, enabling integration into systems using standard 3.3 V power rails.
• Package & Mounting 144-LQFP (supplier package listed as 144-TQFP 20×20) in a surface-mount format for reliable PCB assembly and moderate pin count routing.
• Commercial Temperature Range Rated for 0 °C to 85 °C operation, suitable for a broad set of commercial embedded environments.
• Regulatory RoHS compliant to support lead-free assembly processes.

Typical Applications

• Embedded Control — Implement custom control logic and finite-state machines where moderate logic density and on-chip RAM simplify system design.
• Interface Bridging — Provide parallel and serial interface glue logic using 112 I/O pins to connect sensors, actuators, and peripheral devices.
• Prototyping & Development — Use the XC4005XL as a compact FPGA for proof-of-concept hardware, educational projects, and early-stage product development.
• Low- to Mid-Complexity Signal Processing — Embed small lookup tables and buffers using the device’s on-chip RAM to handle buffering, pattern matching, and simple data manipulation tasks.

Unique Advantages

• Balanced Logic and I/O Count: 466 logic elements paired with 112 I/O pins let designers implement both control logic and broad interfacing without adding external glue devices.
• On-Chip Memory: 6,272 bits of embedded RAM reduce dependence on external memory for small buffers and lookup tables, lowering BOM and board complexity.
• Standard 3.3 V Power: Compatibility with a 3.0–3.6 V supply simplifies power-system design for common commercial electronics platforms.
• RoHS Compliant Surface-Mount Package: 144-LQFP surface-mount package supports modern PCB assembly processes and lead-free manufacturing.
• Commercial Temperature Rating: Specified for 0 °C to 85 °C operation to meet typical commercial application environments.

Why Choose XC4005XL-1TQ144C?

The XC4005XL-1TQ144C delivers a compact, commercially graded FPGA solution for designs that require a modest number of logic elements, on-chip RAM, and a high I/O count in a 144-pin surface-mount package. Its combination of 466 logic elements, 6,272 bits of embedded memory, and 112 I/Os makes it well suited for embedded control, interface bridging, and development projects where board space and BOM simplicity are important.

This device is positioned for commercial embedded designers and product teams looking for a programmable logic option that balances integration and ease of assembly while maintaining RoHS compliance and compatibility with standard 3.3 V systems.

Request a quote or submit an inquiry to receive pricing and availability for the XC4005XL-1TQ144C and to discuss how it can fit into your next commercial FPGA design.
