XC7S15-1CSGA225Q

The XC7S15-1CSGA225Q is a Spartan®-7 field programmable gate array (FPGA) providing a combination of on-chip logic, embedded memory, and a moderate I/O count in a compact BGA package. It is intended for designs that require an automotive-qualified programmable logic device with defined operating voltage and temperature ranges.

With 12,800 logic elements, approximately 0.369 Mbits of embedded memory and 100 I/Os, this device targets applications that need configurable digital logic, local memory, and reliable operation across -40 °C to 125 °C.

Key Features

• Core Logic  12,800 logic elements provide programmable logic resources for control, glue logic, and custom digital functions.
• Embedded Memory  Approximately 0.369 Mbits of on-chip RAM for local data storage and buffering.

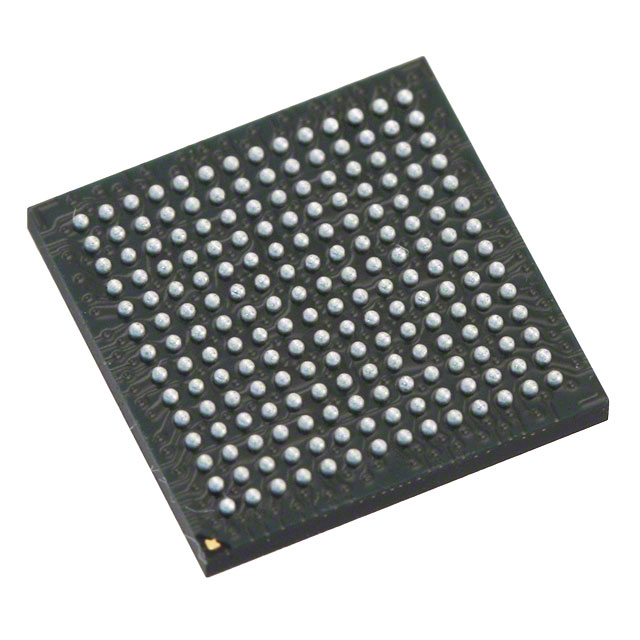

• I/O and Package  100 programmable I/Os in a 225-LFBGA (225-CSPBGA, 13×13) package; surface-mount mounting type enables compact board designs.
• Power  Core voltage supply specified from 0.95 V to 1.05 V for predictable low-voltage operation.
• Automotive Qualification & Temperature Range  Automotive grade with AEC-Q100 qualification and an operating temperature range of -40 °C to 125 °C for demanding environments.
• Compliance  RoHS-compliant.

Typical Applications

• Automotive control and sensor interfaces  AEC-Q100 qualification and wide temperature operation suit control units, sensor aggregation, and interface logic in automotive systems.
• Embedded control and machine logic  On-chip logic and embedded RAM support real-time control tasks, protocol handling, and state machines in embedded products.
• Industrial automation  Suitable for factory and process-control functions requiring reliable operation across extended temperature ranges and a compact package footprint.

Unique Advantages

• Automotive-qualified silicon: AEC-Q100 qualification and a -40 °C to 125 °C operating range support deployment in automotive environments.
• Balanced on-chip resources: 12,800 logic elements together with approximately 0.369 Mbits of RAM provide a mid-range resource set for a variety of digital designs.
• Generous I/O complement: 100 I/Os enable multiple peripheral interfaces, sensor connections, and control signals without external multiplexing.
• Compact BGA footprint: 225-LFBGA (225-CSPBGA, 13×13) helps reduce PCB area while maintaining robust interconnects for surface-mount assembly.
• Defined low-voltage core: A 0.95–1.05 V supply range supports predictable power budgeting in system designs.
• Regulatory compliance: RoHS compliance simplifies environmental and regulatory considerations for product development.

Why Choose XC7S15-1CSGA225Q?

The XC7S15-1CSGA225Q is positioned for designers who need an automotive-qualified FPGA with a clear balance of logic, embedded memory, and I/O in a compact package. Its specified voltage range and wide operating temperature make it suitable for applications requiring reliable operation in challenging thermal environments.

This device is a practical choice for teams implementing configurable control logic, protocol bridging, and sensor interfacing where automotive qualification, predictable power requirements, and a moderate resource set are key selection criteria.

Request a quote or submit an inquiry to receive pricing and availability information for the XC7S15-1CSGA225Q.
