MTFC64GAPALBH-AIT ES TR

The MTFC64GAPALBH-AIT ES TR is an integrated e.MMC device combining a MultiMediaCard (MMC) controller with NAND flash memory in a 153-ball TFBGA package. It provides 512 Gbit of non-volatile NAND flash organized as 64G × 8 and communicates over an MMC interface compliant with JEDEC/MMC standard version 5.1.

Designed for embedded storage applications that require an on-board MMC controller, the device offers high-speed interface modes, secure storage features and field firmware update capability. The device is offered in an automotive-grade option with an operating temperature range of −40°C to +85°C.

Key Features

• Integrated e.MMC architecture — Combines a MultiMediaCard controller with NAND flash to provide a single-chip embedded storage solution compliant with JEDEC/MMC 5.1.
• Memory capacity and organization — 512 Gbit total capacity organized as 64G × 8 using NAND flash memory.
• MMC interface and performance modes — Advanced 12-signal interface with selectable ×1, ×4, and ×8 I/Os; supports e.MMC I/F boot frequency up to 52 MHz and clock frequency up to 200 MHz, including HS200 and HS400 modes.
• Power rails — Specifies VCC supply range 2.7–3.6V and VCCQ dual-voltage support at 1.70–1.95V and 2.7–3.6V.
• Security and partitioning — Features replay-protected memory block (RPMB), multiple partitions with enhanced attributes, permanent and power-on write protection, and temporary write protection.
• Data integrity and management — ECC and block management implemented, command queue support, BKOPS control, reliable write, and device health reporting.
• System and boot features — High-speed boot operation, boot operation support, hardware reset signal, data strobe pin, high-priority interrupt (HPI), and sleep mode.
• Serviceability and security — Field firmware update (FFU), discard and sanitize commands, power-off notification, and background operation support.

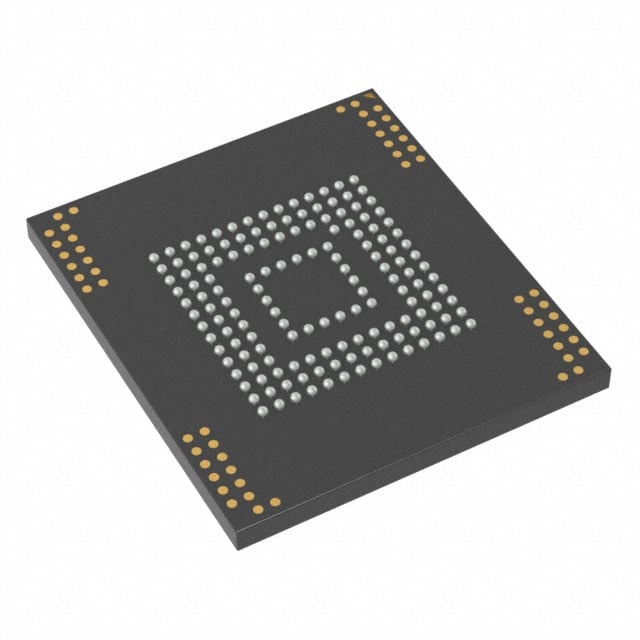

• Package and temperature — 153-ball TFBGA package (11.5 mm × 13 mm × 1.1 mm) and operating temperature range −40°C to +85°C (AIT option).
• Retention and qualification notes — Retention per AEC-Q100-005: 10 years @ 55°C at 10% of PE and 5 years @ 55°C at maximum PE; automotive-grade designation shown in product documentation.

Typical Applications

• Automotive embedded storage — e.MMC device option and AEC-related retention statements support use in automotive embedded storage subsystems requiring integrated controller and NAND flash.
• Embedded systems with JEDEC e.MMC interface — Provides a JEDEC/MMC 5.1-compliant MMC controller and NAND flash in a single package for compact embedded designs.
• Secure storage and boot — RPMB, boot operation and write-protection features enable secure boot, authenticated storage, and protected data partitions.
• Field-upgradeable products — Field firmware update (FFU) and background operation support make the device suitable for systems that require in-field firmware updates.

Unique Advantages

• Integrated controller-plus-flash — Reduces system integration complexity by combining MMC controller functionality with NAND flash in a single e.MMC device.
• Flexible interface options — Selectable ×1/×4/×8 I/O widths and support for HS200/HS400 and high boot clock frequencies enable adaptable performance for different host designs.
• Security and partition management — RPMB, multiple partitions and permanent/power-on write protection provide hardware-level mechanisms for secure data storage and partition control.
• Serviceability features — Field firmware update, device health reporting and reliable write support improve maintainability and lifecycle management.
• Automotive-grade package and temperature option — Availability in a 153-ball TFBGA (11.5×13 mm) and a −40°C to +85°C AIT operating option supports deployment in temperature-challenging environments.
• Data management and reliability — On-device ECC, block management, command queue and BKOPS control support sustained data integrity and background maintenance.

Why Choose IC FLASH 512GBIT MMC 153TFBGA?

The MTFC64GAPALBH-AIT ES TR provides a compact, JEDEC/MMC 5.1-compliant e.MMC solution that integrates an MMC controller with 512 Gbit of NAND flash, simplifying board-level storage design. Its feature set—including RPMB, FFU, ECC, and multiple I/O widths—addresses secure boot, in-field updates and robust data management requirements.

This device is suited for designs that require a fully integrated embedded storage component in a 153-ball TFBGA package with support for automotive-temperature operation. Retention specifications and automotive-designation information in the product documentation support long-term data retention planning for deployed systems.

Request a quote or submit an inquiry for pricing and availability for the MTFC64GAPALBH-AIT ES TR to evaluate it for your embedded storage requirements.
