W74M64FVSSIQ TR

The W74M64FVSSIQ TR is a 64 Mbit non-volatile NAND flash memory from Winbond Electronics' SpiFlash® series. It provides an 8M × 8 memory organization with a SPI – Quad I/O interface for serial flash storage.

Designed for embedded designs requiring compact, serial non-volatile storage, the device operates over a 2.7 V to 3.6 V supply and supports an 80 MHz clock frequency, making it suitable for applications that need moderate-density external flash in a small package.

Key Features

• Memory Type & Capacity 64 Mbit NAND flash memory organized as 8M × 8 for non-volatile data and code storage.
• Interface SPI – Quad I/O interface provides serial access to the flash array for typical SPI or quad I/O transactions.
• Performance 80 MHz clock frequency for serial bus operations as specified.
• Voltage Wide supply range from 2.7 V to 3.6 V to support common 3 V system rails.
• Operating Temperature Specified for −40°C to 85°C (TA), accommodating a wide range of ambient conditions.

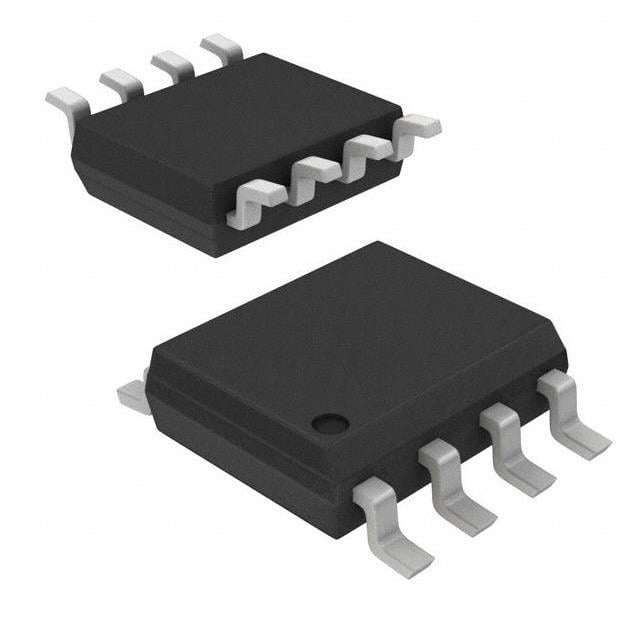

• Package Standard 8-SOIC (0.209", 5.30 mm width) surface-mount package for space-efficient board designs.

Typical Applications

• Firmware and Boot Storage Non-volatile NAND flash for storing firmware images and boot code in embedded products.
• Embedded Systems External program or data storage for microcontroller- or CPU-based systems using SPI or Quad I/O.
• Consumer Electronics Serial flash memory for firmware, settings, or content storage in compact consumer devices.
• Industrial Devices On-board non-volatile storage for devices operating within the −40°C to 85°C temperature range.

Unique Advantages

• Moderate Density (64 Mbit): Provides a balance of capacity and board footprint for applications that need more than small serial EEPROM sizes.
• Quad I/O Support: SPI – Quad I/O interface enables higher parallelism on the serial bus compared to single-bit SPI transfers.
• 80 MHz Clock Capability: Supports serial bus operation at up to the specified 80 MHz clock frequency for efficient data transfers.
• Flexible Supply Range: Operates across 2.7 V to 3.6 V, matching common system power rails without additional level shifting.
• Compact 8-SOIC Package: Standard 8-SOIC footprint simplifies PCB layout and assembly for space-conscious designs.
• Wide Ambient Temperature Range: Rated from −40°C to 85°C, suitable for a variety of environmental conditions.

Why Choose W74M64FVSSIQ TR?

The W74M64FVSSIQ TR delivers a straightforward 64 Mbit NAND flash option with SPI – Quad I/O connectivity, a defined 80 MHz clock speed, and a compact 8-SOIC package. Its voltage and temperature ratings make it a practical choice for embedded designs that require reliable, non-volatile serial storage without changing system power architecture.

Backed by Winbond Electronics' SpiFlash® series pedigree, the device is appropriate for engineers and procurement teams specifying external flash for firmware, data logging, or other serial storage needs where capacity, package size, and standard SPI interfaces are primary selection criteria.

Request a quote or submit a pricing inquiry to evaluate the W74M64FVSSIQ TR for your project and get detailed information on availability and lead times.
