W74M64JVSSIQ

The W74M64JVSSIQ from Winbond Electronics is a 64 Mbit non-volatile NAND FLASH memory device in an 8-SOIC package. It implements an SPI Quad I/O interface and is organized as 8M × 8 to provide byte-oriented FLASH storage for embedded designs.

Designed for systems requiring serial FLASH storage, the device operates over a 2.7 V to 3.6 V supply range, supports clock rates up to 104 MHz, and is specified for an ambient temperature range of −40°C to 85°C.

Key Features

• Memory Capacity and Organization  64 Mbit density organized as 8M × 8 for byte-oriented FLASH storage.
• Technology  NAND FLASH non-volatile memory format suitable for persistent code and data storage.
• Interface and Performance  SPI – Quad I/O memory interface with a maximum clock frequency of 104 MHz to support high-throughput serial transfers.
• Voltage Supply  Operates from 2.7 V to 3.6 V, enabling use with common 3 V system rails.
• Operating Temperature  Specified for −40°C to 85°C (TA) to accommodate a wide range of ambient conditions.

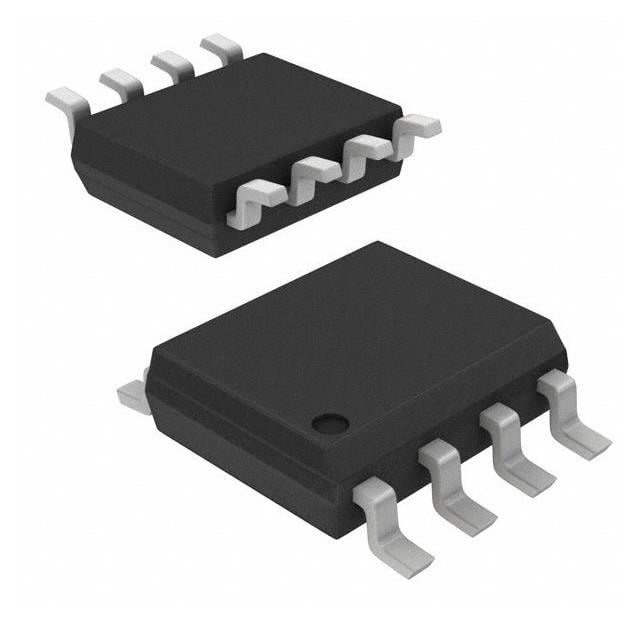

• Package  8-SOIC package (0.209", 5.30 mm width) in a standard supplier device package for through-hole or wave-solder compatible PCB layouts.

Typical Applications

• Embedded code storage  Non-volatile FLASH for storing firmware and application code where a serial SPI/Quad I/O interface and 64 Mbit density are required.
• Boot and configuration data  Persistent storage of bootloaders, configuration tables, or calibration data compatible with 2.7 V–3.6 V systems.
• General-purpose serial data storage  Byte-oriented FLASH storage for logging, parameter storage, or other serial memory needs in systems operating between −40°C and 85°C.

Unique Advantages

• Compact industry-standard package: 8-SOIC footprint (5.30 mm width) simplifies board-level integration and accommodates space-constrained designs.
• Quad I/O SPI interface: Enables higher serial throughput using the device’s Quad I/O capability at clock rates up to 104 MHz.
• Wide supply range: 2.7 V to 3.6 V operation supports common 3 V system rails without additional power conversion.
• Extended ambient temperature: −40°C to 85°C rating supports deployment in a wide range of environmental conditions.
• Byte-oriented organization: 8M × 8 memory organization provides straightforward byte access for firmware and data storage.

Why Choose W74M64JVSSIQ?

The W74M64JVSSIQ delivers a straightforward, specification-driven FLASH memory option for designs that require 64 Mbit of non-volatile storage with a serial SPI – Quad I/O interface. Its combination of 104 MHz clock support, standard 8-SOIC packaging, and 2.7 V–3.6 V supply compatibility makes it suitable for embedded systems and other applications needing compact, byte-oriented FLASH.

This device is appropriate for engineers specifying reliable serial FLASH storage where ambient temperature range and supply voltage compatibility are important selection criteria. Its clear feature set supports scalable design decisions and predictable integration into existing SPI-based memory architectures.

Request a quote or contact sales to discuss pricing, lead times, and availability for the W74M64JVSSIQ.
