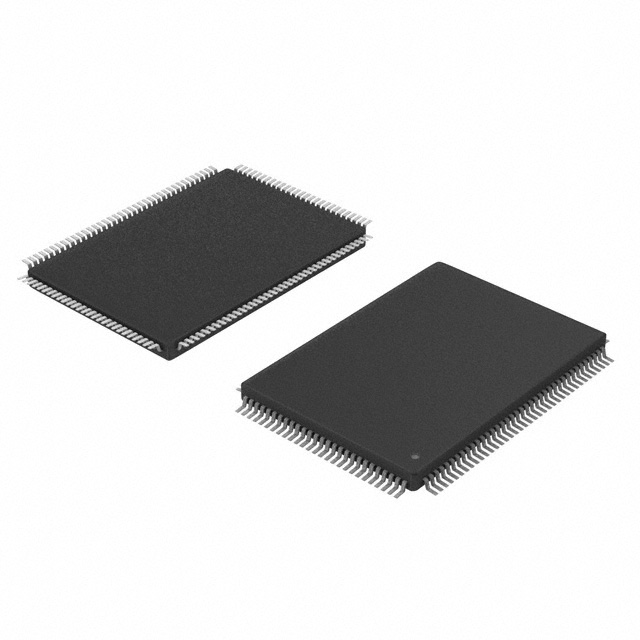

DSP56F827FG80E
IC MCU 16BIT 128KB FLASH 128LQFP
| Part Description |
56800 56F8xx Microcontroller IC 16-Bit 80MHz 128KB (64K x 16) FLASH 128-LQFP (14x20) |
|---|---|
| Quantity | 814 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Not For New Designs |
| Manufacturer Standard Lead Time | 13 Weeks |
| Datasheet |
Specifications
| Part Package | 128-LQFP |
|---|---|
| Device Package | 128-LQFP (14×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 56800 |
| Core Size: | 16-Bit |
| Speed: | 80MHz |
| Connectivity: | EBI/EMI, SCI, SPI, SSI |
| Peripherals: | POR, PWM, WDT |
| Number of I/O: | 64 |
| Program Memory Size: | 128KB (64K x 16) |
| Program Memory Type: | FLASH |
| RAM Size: | 4K x 16 |
| Voltage – Supply (Vcc/Vdd): | 2.25V ~ 2.75V |
| Data Converters: | A/D 10x12b |
| Oscillator Type: | External |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
