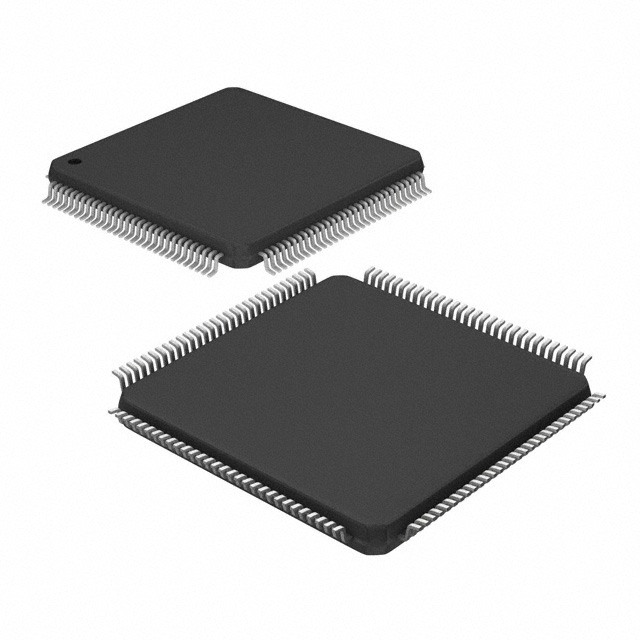

S6E2H16G0AGV2000M
IC MCU 32BIT 544KB FLASH 120LQFP
| Part Description |
ARM® Cortex®-M4F FM4 S6E2H4 Microcontroller IC 32-Bit 160MHz 544KB (544K x 8) FLASH 120-LQFP (16x16) |
|---|---|
| Quantity | 1,523 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Infineon Technologies |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 13 Weeks |
| Datasheet |
Specifications
| Part Package | 120-LQFP |
|---|---|
| Device Package | 120-LQFP (16×16) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor: | ARM® Cortex®-M4F |
| Core Size: | 32-Bit |
| Speed: | 160MHz |
| Connectivity: | CSIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals: | DMA, LVD, POR, PWM, WDT |
| Number of I/O: | 100 |
| Program Memory Size: | 544KB (544K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 64K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 24x12b; D/A 2x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | N/A |
| HTS Code | N/A |
