AM3505AZCNAC

The AM3505AZCNAC is a Sitara AM35xx series microprocessor featuring a single ARM® Cortex®-A8 32-bit core running at 600 MHz. Designed for embedded and industrial applications, it combines CPU performance with integrated peripheral controllers and security features to support connected, display-capable systems.

With memory controller support, multiple USB interfaces, 10/100 Ethernet, CAN, LCD display controller and cryptography features, this device targets industrial embedded designs that require moderate processing, broad I/O connectivity, and extended temperature operation.

Key Features

• Core  ARM® Cortex®-A8 single core, 32-bit processor at 600 MHz for general-purpose embedded processing.
• Multimedia and DSP Acceleration  Includes multimedia co-processor capabilities and NEON™ SIMD support for accelerated signal and media processing.
• Memory Interfaces  Integrated controllers for LPDDR and DDR2 memory types to support application and framebuffer memory needs.
• Display  Built-in LCD display interface controller for driving graphical user interfaces.
• Connectivity  10/100 Mbps Ethernet (1), multiple USB 2.0 ports (USB 2.0 (3) and USB 2.0 + PHY (1)), and CAN for a range of wired communication options.
• Security  Cryptography features to support secure communications and data protection functions.

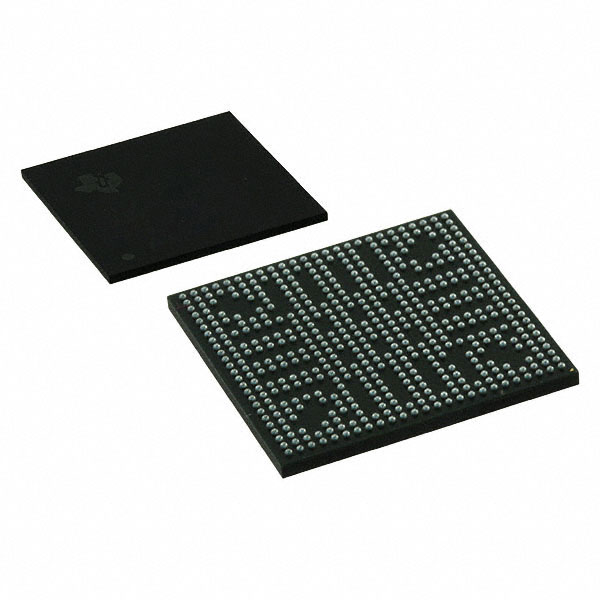

• Package and Mounting  Supplied in a 491-NFBGA package (491-LFBGA casing referenced) with surface-mount mounting; supplier package noted as 491-NFBGA (17x17).
• Industrial Grade Operation  Rated for industrial temperature operation from -40 °C to 105 °C.
• Compliance  RoHS compliant.

Typical Applications

• Industrial Control Systems  Use the AM3505AZCNAC where a 600 MHz Cortex‑A8 core, CAN and Ethernet connectivity, and industrial temperature range are required for machine control and monitoring.
• Human-Machine Interfaces (HMI)  Leverage the integrated LCD controller and memory interfaces to drive operator displays and touch-panel GUIs.
• Networked Embedded Devices  Employ the integrated 10/100 Ethernet and multiple USB ports for network gateways, data loggers, and connected instrumentation.
• USB-enabled Peripherals  Ideal for designs that require multiple USB 2.0 connections including host and device configurations.

Unique Advantages

• Balanced Processing and Efficiency  A single 600 MHz ARM® Cortex®-A8 core provides a measured balance of compute performance and power for embedded applications.
• Integrated Peripheral Set  On-chip Ethernet, USB, CAN and LCD controller reduce external component count and simplify board-level design.
• Memory Flexibility  Support for LPDDR and DDR2 memory controllers enables designers to choose memory architectures that match bandwidth and cost targets.
• Industrial Temperature Range  Operation from -40 °C to 105 °C supports deployment in harsh or temperature-variable environments.
• Security Capabilities  Built-in cryptography features help address device and data security requirements in connected systems.
• RoHS Compliant  Meets RoHS requirements for environmental compliance.

Why Choose AM3505AZCNAC?

The AM3505AZCNAC positions itself as an industrial-grade Sitara AM35xx microprocessor option that combines a 600 MHz ARM® Cortex®-A8 core with a broad set of integrated interfaces and security features. Its memory controller support, display capabilities, and wired connectivity options make it suited to embedded designs that require reliable operation across a wide temperature range.

As part of the Sitara AM35xx family, this device provides a consistent platform for embedded developers seeking a compact, surface-mount package with integrated peripherals and industry-focused specifications.

Request a quote or submit a quote for AM3505AZCNAC to get pricing and availability information for your next embedded design.
