AM3505AZERA

The AM3505AZERA is a Sitara™ microprocessor IC from Texas Instruments featuring a single ARM® Cortex®-A8 32-bit core running at 600 MHz. It targets embedded and industrial applications that require a compact, networked processing element with on-chip peripherals and industrial temperature operation.

With integrated interfaces including 10/100Mbps Ethernet, multiple USB 2.0 ports, CAN, LCD display controller support, and cryptography features, the device provides a balanced combination of compute, connectivity, and system integration for embedded designs.

Key Features

• Core  Single ARM® Cortex®-A8 32-bit core operating at 600 MHz for application processing.
• DSP / SIMD  Multimedia co-processor with NEON™ SIMD support for accelerated media and signal-processing tasks.
• Memory Controllers  On-chip controllers for LPDDR and DDR2 memory types to support system memory requirements.
• Display  Integrated LCD display interface controller for direct connection to display panels.
• Connectivity  Built-in 10/100Mbps Ethernet (1), three USB 2.0 ports, one USB 2.0 with PHY, and CAN support for a wide range of I/O and networking options.
• Security  Cryptography features included on-chip to support secure communications and data protection functions.

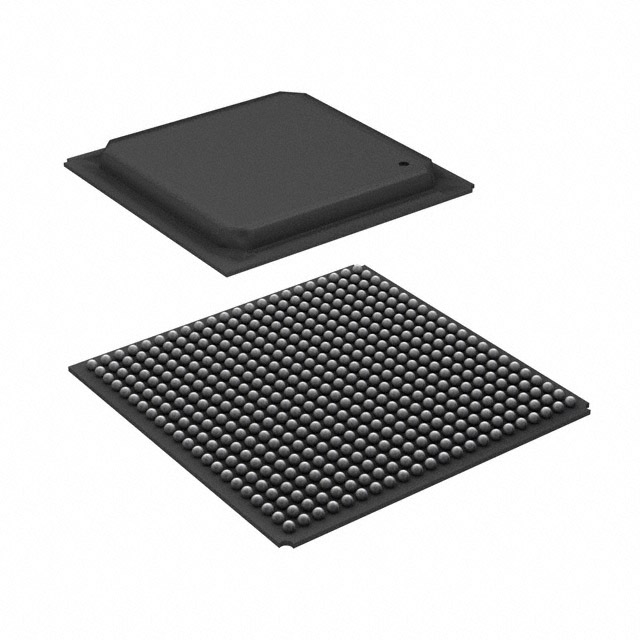

• Package & Mounting  484-BBGA exposed pad package (484-BGA, 23×23) designed for surface-mount assembly.
• Industrial Grade & Temperature  Industrial-grade device rated for operation from −40°C to 105°C.
• Standards & Compliance  RoHS compliant.
• Graphics  No dedicated graphics acceleration.

Typical Applications

• Industrial Control  Embedded controllers and automation equipment that require industrial temperature ratings and integrated networking.
• Networked Embedded Devices  Gateways and appliances leveraging the on-chip 10/100Mbps Ethernet, USB ports, and CAN interface for connectivity and peripheral integration.
• Human-Machine Interfaces (HMIs)  Systems with LCD-based displays driven directly by the integrated display controller.
• Multimedia and Signal Processing  Applications that benefit from the multimedia co-processor and NEON™ SIMD for media or DSP workloads.

Unique Advantages

• Single-chip integration: Combines CPU, memory controllers, display interface, Ethernet, USB and CAN to consolidate system-level functionality.
• Industrial temperature range: Rated from −40°C to 105°C to support deployments in industrial environments.
• On-chip security: Integrated cryptography features simplify implementation of secure communications and data protection.
• Flexible memory support: LPDDR and DDR2 controller support enables choice of memory technologies to match system cost and performance targets.
• Standard package for SMT assembly: 484-BGA (23×23) with exposed pad supports surface-mount production processes.

Why Choose AM3505AZERA?

The AM3505AZERA delivers a compact, industrial-grade Sitara™ MPU solution built around a 600 MHz ARM® Cortex®-A8 core with multimedia/NEON SIMD acceleration and a broad set of on-chip interfaces. Its integration of Ethernet, multiple USB ports, CAN, LCD controller, memory controllers, and cryptography features makes it suitable for embedded designs that require a combination of connectivity, display support, and secure processing.

Designed and supplied by Texas Instruments as part of the Sitara AM35xx series, the AM3505AZERA is positioned for developers and procurement teams seeking a reliable, RoHS-compliant microprocessor with industrial temperature capability and a package suited for surface-mount assembly.

Request a quote or submit an inquiry to receive pricing, availability, and lead-time information for the AM3505AZERA.
