AM3505AZER

The AM3505AZER is a Sitara AM35xx series microprocessor IC from Texas Instruments based on an ARM® Cortex®-A8 core running at 600 MHz. It is a single-core, 32-bit MPU designed for embedded applications that require integrated I/O, memory controller support, and hardware cryptography.

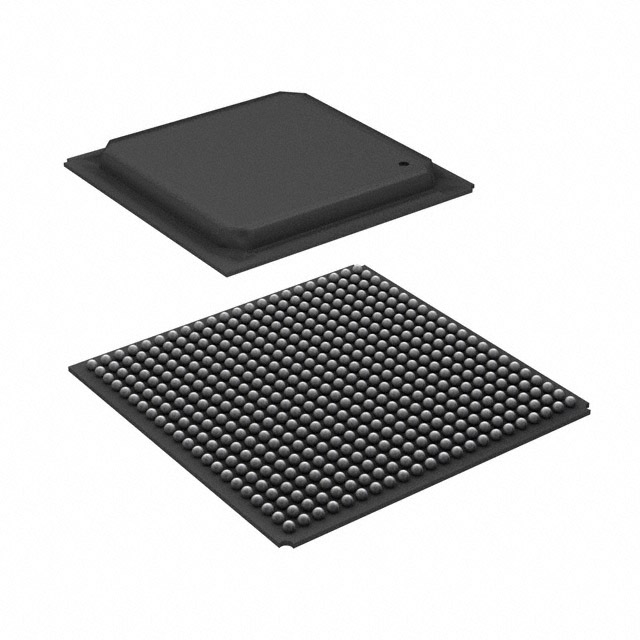

Featuring a 484-ball BGA package with an exposed pad and commercial-grade operating range, the AM3505AZER targets embedded designs that demand compact packaging, standard memory interface support, and multiple connectivity options.

Key Features

• Core ARM® Cortex®-A8 single core, 32-bit processor running at 600 MHz for control and application processing.
• Multimedia and SIMD Includes Multimedia and NEON™ SIMD co-processor capabilities for data-parallel and media-oriented workloads.
• Memory Controllers Integrated controllers for LPDDR and DDR2 memory types to support common embedded memory configurations.
• Display Interface LCD display interface controller for driving display panels in embedded HMI and UI applications.
• Connectivity On-chip 10/100 Mbps Ethernet (1), three USB 2.0 ports plus one USB 2.0 port with PHY, and CAN interface for networked and peripheral connections.
• Security Built-in cryptography features for secure processing and data protection.
• Package and Mounting 484-BBGA exposed pad package (484-BGA, 23×23) in a surface-mount form factor for compact board designs.
• Operating Conditions Commercial-grade operating temperature range from 0 °C to 90 °C.
• Compliance RoHS compliant for environmental and regulatory consideration in commercial products.

Typical Applications

• Embedded control systems — Single-core processing and integrated memory controllers enable control-focused embedded designs.
• Connected devices — On-chip Ethernet, multiple USB 2.0 ports, and CAN support networked device connectivity and peripheral integration.
• Display-based interfaces — LCD controller support makes the device suitable for human-machine interfaces and display-driven control panels.
• Secure processing — Integrated cryptography features support applications that require basic data protection and secure communications.

Unique Advantages

• Balanced processing performance — A 600 MHz ARM® Cortex®-A8 core delivers a balance of compute capability for control and application tasks without adding core count complexity.
• Multimedia acceleration — NEON™ SIMD and multimedia co-processor capabilities provide data-parallel acceleration for media and signal-processing workloads.
• Comprehensive I/O integration — Multiple USB ports, Ethernet, CAN, and an LCD controller reduce external component count and simplify system design.
• Flexible memory support — LPDDR and DDR2 controller support allows designers to choose common memory technologies to match cost and performance targets.
• Compact, manufacturable package — 484-BGA (23×23) with exposed pad and surface-mount mounting supports dense PCB layouts and thermal conduction.
• Commercial temperature and RoHS compliance — 0 °C to 90 °C operating range and RoHS compliance align with commercial embedded product requirements.

Why Choose AM3505AZER?

The AM3505AZER combines a 600 MHz ARM® Cortex®-A8 core with multimedia SIMD capabilities and a rich set of on-chip interfaces, making it a practical choice for embedded systems requiring integrated connectivity, display support, and basic cryptography. Its support for LPDDR and DDR2 memory types and a compact 484-BGA package suit space-constrained designs.

As part of the Texas Instruments Sitara AM35xx series, this device is positioned for designers seeking an integrated microprocessor solution for commercial embedded applications where balanced performance, interface integration, and manufacturable packaging matter.

Request a quote or submit an inquiry to purchase AM3505AZER for your next embedded design project.
