AM3505AZERAC

The AM3505AZERAC is an ARM® Cortex®-A8 single-core, 32-bit microprocessor operating at 600 MHz in a 484-BGA (23×23) package. Designed for embedded applications, this Sitara™ AM35xx series device combines application-class processing with integrated memory interfaces, multiple connectivity options and industrial-grade operating range to support robust system designs.

Key Features

• Core and Acceleration ARM® Cortex®-A8 single-core 32-bit processor at 600 MHz with multimedia DSP and NEON™ SIMD co-processor support for signal and media processing workloads.
• Memory and Display Integrated controllers for LPDDR and DDR2 memory along with an LCD display controller to support embedded user interfaces and frame-buffered graphics.
• Connectivity On-chip 10/100Mbps Ethernet (1), three USB 2.0 ports plus one USB 2.0 port with PHY, and CAN interface provide a wide range of wired connectivity options for networking and peripheral integration.
• Security Built-in cryptography features enable secure data handling and protection within the application.
• Industrial Grade Operation Rated for an operating temperature range of −40 °C to 105 °C, suitable for demanding embedded and industrial environments.

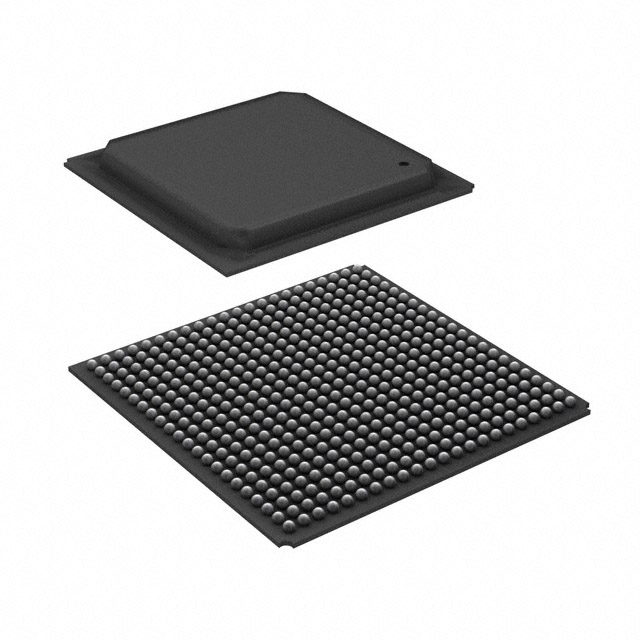

• Package and Mounting 484-BBGA exposed pad package (23×23) for surface-mount designs offering a compact footprint with thermal conduction pathways for system-level thermal management.

Typical Applications

• Industrial Control and Automation — Connectivity (Ethernet, CAN, USB) and industrial temperature range make it suited for control nodes, gateways and monitoring devices.
• Human‑Machine Interfaces (HMIs) — LCD controller and sufficient processing performance support embedded displays and operator interfaces.
• Embedded Networking and Gateways — Integrated Ethernet, multiple USB ports and CAN enable protocol bridging and local network services.
• Multimedia and Signal Processing — Multimedia DSP and NEON™ SIMD acceleration support audio, codec and other media-related processing tasks.

Unique Advantages

• Balanced, Single‑Core Performance: 600 MHz ARM® Cortex®-A8 core provides deterministic application processing while minimizing system complexity.
• Integrated Connectivity Suite: Ethernet, multiple USB ports and CAN on a single device reduce external component count and simplify board design.
• Memory Flexibility: Support for LPDDR and DDR2 memory types enables designers to choose cost and performance trade-offs appropriate to the application.
• Industrial Temperature Rating: −40 °C to 105 °C operation supports deployment in harsh or outdoor environments.
• On‑Chip Security: Cryptography features help protect data and communications without requiring separate security ICs.
• Compact Thermal Package: 484-BBGA with exposed pad assists thermal dissipation in space-constrained designs.

Why Choose AM3505AZERAC?

The AM3505AZERAC positions itself as a compact, industrial-grade embedded processor that balances application-level performance with integrated connectivity and security. Its Cortex‑A8 core with multimedia acceleration, combined with memory and display interfaces, makes it suitable for embedded systems requiring networked I/O, secure data handling and display support.

As part of the Texas Instruments Sitara AM35xx series, this device supports designers seeking a single-chip solution to reduce BOM complexity while maintaining manufacturability and thermal performance for long-term deployments.

If you need pricing or availability, request a quote or submit a procurement inquiry to receive a formal quotation and lead-time information for the AM3505AZERAC.
