AM3505AZERC

The AM3505AZERC is a Sitara™ ARM® Cortex®-A8 microprocessor IC from Texas Instruments, delivering a single 32-bit core running at 600 MHz. Designed for embedded applications, it integrates a range of peripherals and memory interfaces to support connectivity, multimedia processing, and display control in commercial-grade designs.

Key Features

• Core and Performance  ARM® Cortex®-A8 single 32-bit core running at 600 MHz, suitable for real-time embedded workloads and control tasks.
• Multimedia Acceleration  Includes DSP-style multimedia support and NEON™ SIMD to accelerate signal processing and media algorithms.
• Memory Interfaces  On-chip controllers for LPDDR and DDR2 memories to support system memory requirements and varied memory configurations.
• Display Support  Integrated LCD display controller for user interfaces and HMI implementations.
• Connectivity  Integrated 10/100 Mbps Ethernet controller (1), multiple USB 2.0 ports (3 × USB 2.0, 1 × USB 2.0 with PHY) and CAN interface for diverse I/O and networked applications.
• Security  Built-in cryptography features to support secure data handling and authenticated communications.

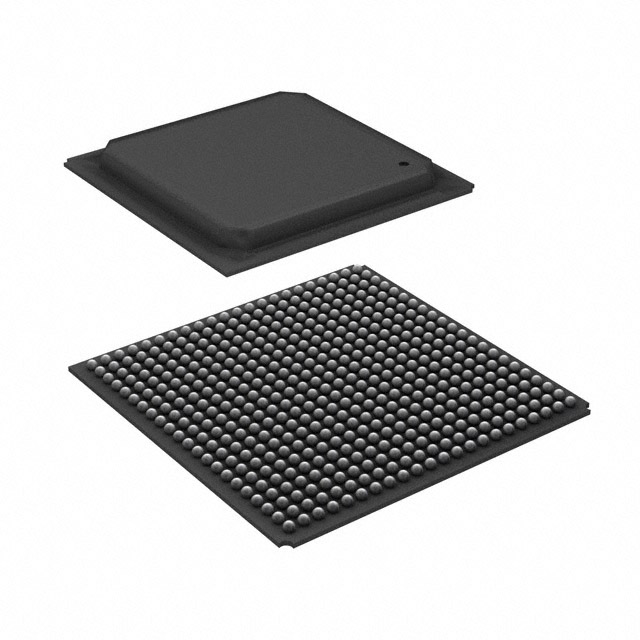

• Package and Mounting  484-BBGA exposed pad package (484-BGA, 23 × 23) with surface-mount mounting for compact board-level integration.
• Commercial Grade and Temperature Range  Commercial-grade device with an operating temperature range of 0 °C to 90 °C and RoHS compliance.

Typical Applications

• Embedded Control Systems  Single-core ARM® Cortex®-A8 processing with CAN and Ethernet interfaces for machine control and supervised automation tasks in commercial environments.
• Human–Machine Interfaces (HMI)  LCD controller and multimedia processing capabilities enable responsive user interfaces and graphical displays for control panels and kiosks.
• Connectivity Appliances  Multiple USB 2.0 ports and 10/100 Mbps Ethernet support networked peripheral connectivity and USB device/host roles.

Unique Advantages

• Integrated Peripheral Set:  Ethernet, USB, CAN and LCD controller reduce external component count and simplify system design.
• Multimedia and SIMD Support:  NEON™ SIMD and multimedia co-processor capabilities accelerate signal and media processing without adding external accelerators.
• Flexible Memory Support:  On-chip controllers for LPDDR and DDR2 enable designers to choose memory technologies that match performance and cost targets.
• Compact BGA Package:  484-BBGA with exposed pad and surface-mount footprint supports dense board layouts and improved thermal conduction.
• Commercial Temperature Suitability:  Rated for 0 °C to 90 °C operation to meet a wide range of indoor and controlled-environment applications.
• RoHS Compliant:  Meets RoHS requirements for environmentally conscious designs.

Why Choose AM3505AZERC?

The AM3505AZERC combines a 600 MHz ARM® Cortex®-A8 core with integrated multimedia acceleration, versatile memory controllers, and a broad set of connectivity options to deliver a compact, commercially graded processor solution for embedded designs. As a member of the Sitara AM35xx series from Texas Instruments, it provides a balance of processing capability and peripheral integration suited to HMIs, connectivity appliances, and embedded control systems.

Choose AM3505AZERC when you need a single-chip solution that consolidates display control, networking, USB connectivity and secure processing into a 484-BGA package—helping reduce board complexity and accelerate time to market for commercial embedded products.

Request a quote or submit an inquiry to get pricing and availability for AM3505AZERC and accelerate procurement for your next embedded design.
