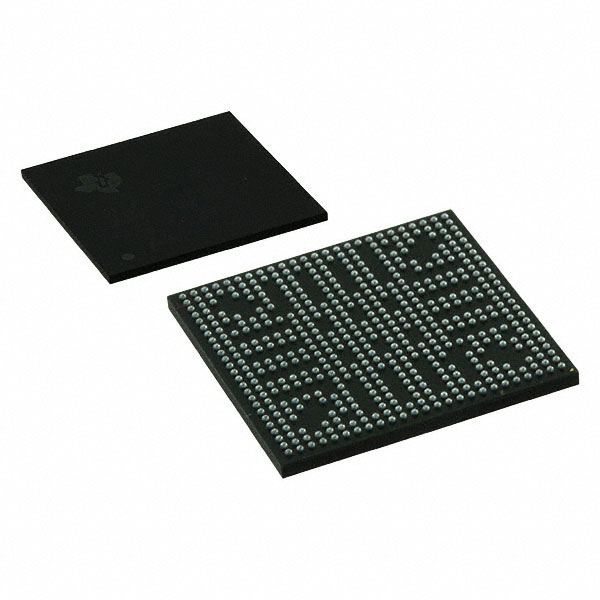

AM3505AZCNC

The AM3505AZCNC is a Sitara AM35xx series microprocessor IC from Texas Instruments featuring a single ARM® Cortex®-A8 core clocked at 600 MHz in a 491‑NFBGA (17×17) package. Designed for embedded and commercial applications, it combines a 32‑bit application core with multimedia co‑processing and a range of integrated interfaces to support connectivity and display subsystems.

With on‑chip cryptography and support for common memory types, the device targets compact, integrated embedded designs requiring a balanced mix of compute, connectivity, and peripheral integration within a commercial temperature range.

Key Features

• Core and Performance Single ARM® Cortex®‑A8 core at 600 MHz providing 32‑bit application processing for embedded workloads.
• Multimedia and DSP Integrated multimedia co‑processors and NEON™ SIMD support for accelerating signal and media processing tasks.
• Memory Controllers Built‑in controllers for LPDDR and DDR2 memory types to accommodate common embedded DRAM configurations.
• Display Interface LCD display controller support for HMI and user‑interface implementations.
• Connectivity Includes a 10/100 Mbps Ethernet interface (1), multiple USB 2.0 interfaces (3x USB 2.0 plus 1x USB 2.0 with PHY) and CAN for vehicle/networked device communication.
• Security On‑chip cryptography features for secure boot, data protection, and encrypted communications.
• Package and Mounting Supplied in a 491‑NFBGA (17×17) package; package case listed as 491‑LFBGA and designed for surface mount assembly.
• Commercial Temperature Grade Rated for operation from 0 °C to 90 °C, suitable for a wide range of commercial embedded environments.

Typical Applications

• Embedded Control Systems Single‑core Cortex‑A8 processing and memory controller support make the device suitable for compact embedded controllers and appliance electronics.
• Human‑Machine Interfaces (HMI) LCD display controller and multimedia processing support enable responsive user interfaces for control panels and display modules.
• Industrial and Commercial Networking Integrated 10/100 Ethernet and CAN interfaces facilitate networking and fieldbus connectivity in commercial automation and monitoring equipment.
• Peripheral‑Rich Devices Multiple USB 2.0 ports and on‑chip PHY support connectivity for USB peripherals, data logging, and I/O expansion.

Unique Advantages

• Balanced Single‑Core Performance: A 600 MHz ARM® Cortex®‑A8 core delivers predictable compute capability for deterministic embedded tasks.
• Multimedia Acceleration: NEON™ SIMD and multimedia co‑processors reduce CPU load for signal processing and media handling.
• Flexible Memory Support: Native LPDDR and DDR2 controllers simplify BOM choices across cost and performance points.
• Integrated Connectivity Suite: Ethernet, multiple USB 2.0 ports, and CAN are available on‑chip to reduce external interface components.
• On‑Chip Cryptography: Built‑in cryptographic features support secure communications and data protection for commercial products.
• Compact Surface‑Mount Package: 491‑NFBGA (17×17) packaging enables high‑density board designs while maintaining thermal and mechanical suitability for surface‑mount assembly.

Why Choose AM3505AZCNC?

The AM3505AZCNC offers a practical combination of a 600 MHz ARM® Cortex®‑A8 core, multimedia co‑processing, and a broad set of integrated interfaces in a compact BGA package. As part of the Sitara AM35xx series from Texas Instruments, it is positioned for designers seeking an integrated, commercially graded MPU for embedded and industrial‑grade commercial applications.

Its memory flexibility, hardware cryptography, and on‑chip connectivity reduce external component count and simplify system design, delivering a durable platform for mid‑range embedded solutions that require balanced compute and peripheral integration.

Request a quote or submit a product inquiry to begin procurement or to get detailed pricing and availability information for AM3505AZCNC.
