AM6412BKCGHAALVR

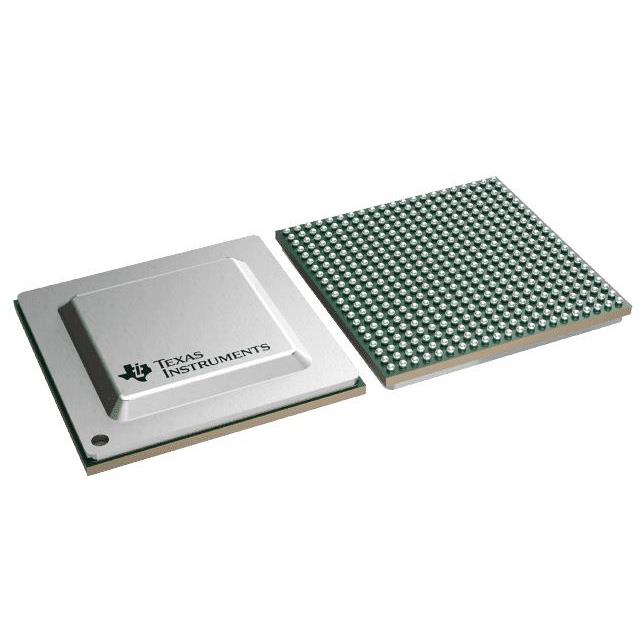

The AM6412BKCGHAALVR is a Sitara AM64x microprocessor from Texas Instruments featuring a dual 64-bit Arm® Cortex®-A53 cluster operating at 800 MHz. It combines general-purpose application processing with integrated real-time and industrial communication subsystems to address demanding industrial embedded applications.

Designed for industrial environments, this device delivers a mix of application processing, real-time control and security features, alongside flexible memory and high-speed I/O to simplify system design and accelerate time-to-market.

Key Features

• Core Architecture — Dual 64-bit Arm® Cortex®-A53 microprocessor subsystem specified at 800 MHz, with series-level support for a shared L2 cache architecture and per-core L1 caches.
• Real-time and MCU Subsystems — Integrated Arm® Cortex®-R5F dual-core subsystems and an Arm® Cortex®-M4F core for deterministic real-time processing and microcontroller tasks (series-level subsystem capabilities referenced).
• Industrial Communication (PRU_ICSSG) — Two gigabit-capable Industrial Communication Subsystems supporting protocols such as Profinet, EtherNet/IP, EtherCAT and Time-Sensitive Networking (TSN); PRU-ICSSG includes multi-core PRU RISC engines and hardware accelerators (series-level features).
• Ethernet and USB — Multiple Ethernet ports supporting 10/100 Mbps (2 ports) and 10/100/1000 Mbps (2 ports), plus a USB 3.1 interface for high-speed peripheral connectivity.
• Memory Support — DDR subsystem supporting DDR4 and LPDDR4 memory types with 16-bit data bus and inline ECC; up to 2 MB on-chip RAM with SECDED ECC and configurable banking for task partitioning (series-level memory architecture).
• Security — Extensive cryptographic and secure-boot capabilities including 3DES, AES, ARM TrustZone, RSA, ECC, SHA-1/2, MD5, PKA, DRBG and a hardware random number generator to support device and data protection.
• SoC Services — Device Management Security Controller (DMSC-L) for centralized boot, security and clock/reset/power management plus data movement subsystems such as Block Copy DMA and Packet DMA (series-level features).
• Interfaces and Peripherals — Additional interfaces include CANbus and industrial peripherals such as position encoder inputs and ECAP for motion/feedback applications (series-level details).
• Package and Environmental — 441-FCBGA package (17.2 × 17.2 mm) with surface-mount mounting and industrial operating temperature range of −40 °C to 105 °C. RoHS compliant.

Typical Applications

• Industrial Automation Controllers — Use the AM6412BKCGHAALVR for controllers requiring combined application processing and real-time industrial networking (Profinet, EtherCAT, TSN).
• Communication Gateways and Bridges — Implement protocol translation and secure data movement between field networks and higher-level systems leveraging multiple Ethernet ports and PRU-based accelerators.
• Motion and Motor Control Systems — Leverage PRU peripherals, encoder interfaces and ECAP to implement position feedback and deterministic control loops.
• Secure Embedded Systems — Deploy secure-boot, TrustZone and hardware cryptography to protect IP, secure boot chains and encrypted communications.

Unique Advantages

• Highly integrated processing mix: Dual Cortex‑A53 application cores combined with Cortex‑R5F and Cortex‑M4F subsystems provide a single-chip solution for mixed application and real-time workloads.
• Industrial communications ready: PRU_ICSSG subsystems with multi-port Ethernet and protocol support reduce external components and accelerate implementation of industrial protocols.
• Robust security stack: Hardware-enforced secure boot, TrustZone support and a broad set of cryptographic accelerators simplify secure product design.
• Flexible memory architecture: On-chip RAM with ECC and support for DDR4/LPDDR4 plus configurable memory banking enable software partitioning and reliable data handling.
• Designed for harsh environments: Industrial-grade temperature range (−40 °C to 105 °C) and a compact 441‑FCBGA package support deployment in industrial settings.

Why Choose AM6412BKCGHAALVR?

The AM6412BKCGHAALVR positions itself as a versatile, industrial-grade SoC for embedded systems that require a balance of application performance, real-time determinism and integrated industrial communications. With a dual-core 64-bit Cortex‑A53 subsystem, dedicated real-time MCUs, PRU-based industrial Ethernet engines and a comprehensive security feature set, it addresses multi-domain embedded designs in a single device.

This part is suitable for designers building industrial controllers, communication gateways, motion-control systems and secure edge appliances where deterministic I/O, protocol support and onboard security are priorities. The integrated memory options, SoC services and industrial peripherals provide a clear path for scalable, robust product development.
