AM6412BSCGHAALV

The AM6412BSCGHAALV is a Sitara™ AM64x family microprocessor designed for industrial embedded systems, combining multiple ARM® processing subsystems for mixed high‑performance and real‑time tasks. It integrates ARM® Cortex®‑A53 application cores with Cortex®‑R5F and Cortex®‑M5F microcontroller cores, along with industrial communication engines and extensive security features to address networking, control and secure edge compute use cases.

Built for industrial applications, the device offers high single‑thread performance, deterministic real‑time processing and broad memory and interface support to simplify system design and accelerate time to market.

Key Features

• Multicore ARM processing ARM® Cortex®‑A53 application cores up to 1 GHz plus ARM® Cortex®‑R5F real‑time cores up to 800 MHz and an ARM® Cortex®‑M5F core at up to 400 MHz, enabling partitioned application and real‑time workloads.
• Industrial communication subsystems (PRU_ICSSG) Two gigabit PRU_ICSSG engines with dual Ethernet ports and programmable RISC cores supporting protocols such as Profinet, EtherNet/IP, EtherCAT and Time‑Sensitive Networking (TSN).
• Memory subsystem DDR4/LPDDR4 memory controller support and up to 2 MB on‑chip RAM with SECDED ECC to enable robust, low‑latency memory configurations and software partitioning.
• High‑speed connectivity Multiple Ethernet interfaces (two 10/100 Mbps and two 10/100/1000 Mbps) and a USB 3.1 port to support networked and peripheral I/O requirements.
• Comprehensive security Hardware security features including AES, ARM TrustZone, cryptography accelerators, DRBG, ECC, PKA, RSA, SHA2, secure boot and a random number generator to support trusted boot and secure storage.
• SoC services and DMA Centralized device management (DMSC‑L), data movement subsystems (BCDMA, PKTDMA) and DMA engines for efficient system control and high throughput data transfers.

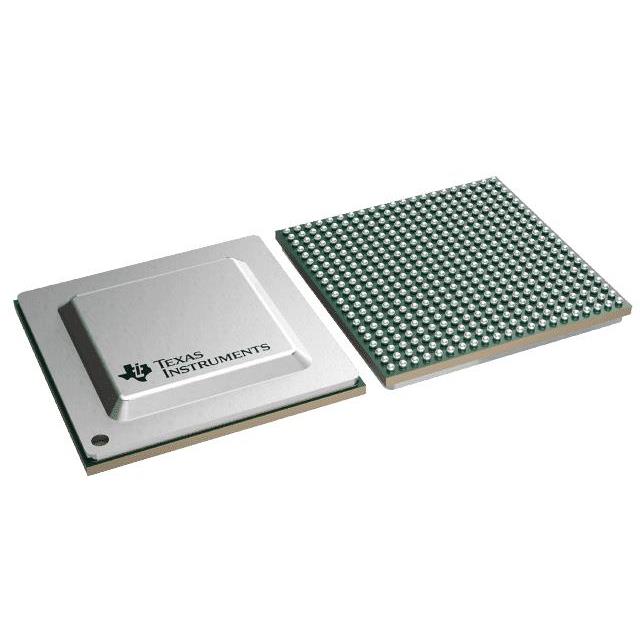

• Package and industrial grade 441‑ball FCBGA package (17.2 × 17.2 mm) and an operating temperature range of −40 °C to 105 °C for industrial environments.

Typical Applications

• Industrial Automation – Real‑time motion control, PLC and distributed IO applications leveraging PRU_ICSSG deterministic networking and multiple real‑time cores.
• Industrial Ethernet Gateways – Protocol translation and secure edge routing using multiple gigabit Ethernet ports and hardware security features for protected communications.
• Edge Compute and Secure IoT – Local data aggregation, encryption and trusted execution using Cortex‑A53 application cores together with TrustZone and secure boot.
• Motor and Motion Control – Dedicated real‑time Cortex‑R5F cores and PRU resources for precise control loops and encoder interfacing.

Unique Advantages

• Heterogeneous processing in one device: Combines application, real‑time and microcontroller cores to run OS‑level and deterministic tasks concurrently, reducing the need for multiple chips.
• Built for industrial networking: Integrated PRU_ICSSG engines and multi‑port Ethernet simplify implementation of industrial protocols and time‑sensitive networking.
• Robust memory and data integrity: DDR4/LPDDR4 support plus on‑chip RAM with SECDED ECC helps maintain data integrity in harsh environments.
• Hardware security stack: Extensive crypto and secure‑boot features provide a hardware root‑of‑trust for secure device provisioning and update workflows.
• System management and DMA: On‑chip SoC services and DMA engines streamline power/clock management and high‑efficiency data movement to optimize system performance.
• Industrial grade packaging and thermal range: 441‑ball FCBGA package with −40 °C to 105 °C rating supports deployment in demanding industrial settings.

Why Choose AM6412BSCGHAALV?

The AM6412BSCGHAALV positions itself as a highly integrated microprocessor for industrial embedded designs that require a mix of application performance, real‑time determinism and strong security. Its combination of ARM® Cortex® cores, programmable industrial communications, memory options and on‑chip system services reduces BOM complexity while providing a scalable platform for control, networking and secure edge compute.

This device is well suited for developers and engineers building industrial automation equipment, networked control systems, secure gateways and other embedded applications that demand reliability, protocol flexibility and hardware‑assisted security over the product lifecycle.

Request a quote or submit a product inquiry to receive pricing, availability and technical purchasing information for the AM6412BSCGHAALV.
