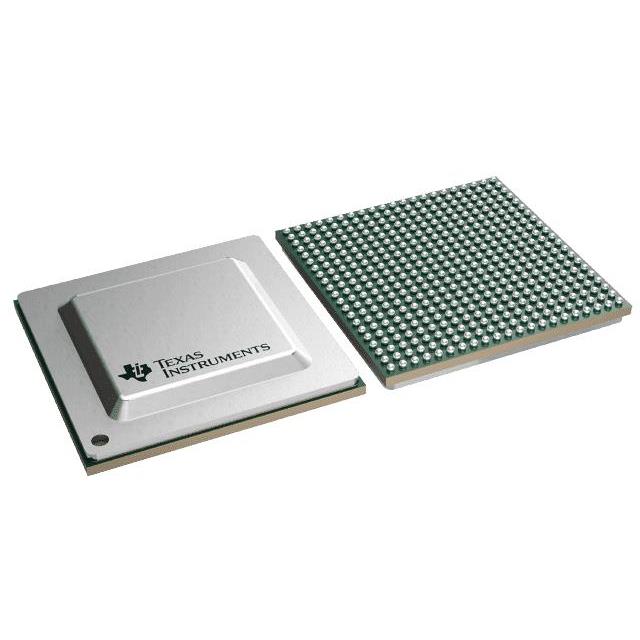

AM6421BSEFHAALVR

The AM6421BSEFHAALVR is a Sitara AM64x microprocessor from Texas Instruments targeted at industrial embedded applications. The device is specified with a single 64‑bit ARM core running at up to 1 GHz (ARM® Cortex®-A53 listed in the product specifications) and integrates a range of processing subsystems for real‑time and industrial communications.

Designed for industrial-grade systems, the part combines high‑performance processing, multi‑protocol industrial communication support, extensive security features, and robust memory and I/O connectivity to support secure, deterministic embedded designs.

Key Features

• Core & Performance  Specified with a 64‑bit ARM core at 1 GHz (ARM® Cortex®-A53 listed in the product specifications) to support general application processing in embedded systems.
• Co‑processors & Real‑time Subsystems  Integrates co‑processors including ARM® Cortex®-M4F and ARM® Cortex®-R5F plus PRU‑ICSS industrial subsystems and NEON™ SIMD multimedia support for offload and real‑time tasks.
• Memory Support  DDR subsystem supporting DDR4 and LPDDR4 memory types and up to 2 MB of on‑chip RAM (OCSRAM) with SECDED ECC as described in the series datasheet; inline ECC on the DDR data path provides memory reliability.
• Industrial Communication  Multiple Ethernet interfaces with two 10/100 Mbps ports and two 10/100/1000 Mbps ports plus PRU_ICSSG industrial communication engines supporting common industrial protocols and time synchronization features.
• Peripheral & I/O  Integrated USB 3.1 (1), CANbus support and general‑purpose memory controller options provide flexible I/O for networking and field connectivity.
• Security  Comprehensive security features including 3DES, AES, ARM TrustZone (TZ), cryptography engines (PKA, RSA, ECC), secure boot, DRBG, SHA‑1/2, MD5 and a hardware random number generator to support protected designs.
• Package & Temperature  441‑FCBGA package (17.2 × 17.2 mm) in a surface‑mount form factor rated for industrial temperature operation from −40 °C to 105 °C.

Typical Applications

• Industrial Automation & Control  Use as the main application processor in programmable logic controllers, motor drives, and machine controllers where deterministic I/O and industrial networking are required.
• Industrial Ethernet Gateways  Suitable for protocol bridging and edge gateways that require multiple Ethernet ports and PRU‑based offload for protocols such as Profinet, EtherNet/IP, and EtherCAT (supported by the series PRU_ICSSG).
• Secure Embedded Systems  Ideal for embedded devices that require secure boot and hardware cryptography for device authentication, secure storage, and protected execution environments.
• Field Instrumentation & Remote I/O  Supports remote I/O and sensor aggregation with CANbus and high‑speed Ethernet connectivity in harsh industrial environments.

Unique Advantages

• Highly integrated industrial feature set: Combines application and real‑time processing subsystems with industrial communication engines to reduce external component count and simplify system architecture.
• Robust memory reliability: On‑chip RAM with SECDED ECC and DDR inline ECC support improves system uptime and error resilience in long‑running industrial deployments.
• Comprehensive security stack: Hardware root‑of‑trust, secure boot and a broad set of cryptographic primitives enable secure device provisioning and protected operation.
• Multiple high‑speed interfaces: Gigabit and 10/100 Ethernet ports plus USB 3.1 and CANbus provide flexible connectivity options for networking and peripheral integration.
• Industrial temperature rating: Specified operation from −40 °C to 105 °C for deployment in demanding environmental conditions.

Why Choose AM6421BSEFHAALVR?

The AM6421BSEFHAALVR positions itself as a capable industrial embedded processor offering a 64‑bit ARM core at 1 GHz combined with real‑time subsystems, industrial networking engines, and comprehensive security features. This combination supports designs that demand deterministic control, secure operation, and multiple high‑speed interfaces while meeting industrial temperature requirements.

Engineers designing gateways, controllers, and secure embedded nodes will find the AM6421BSEFHAALVR suitable for reducing system complexity through integration, improving reliability with ECC‑protected memory, and enabling industrial communication offload with PRU‑based engines.
