AM6422BSDFHAALVR

The AM6422BSDFHAALVR is a Sitara™ microprocessor featuring a dual 64-bit Arm® Cortex®-A53 cluster running at up to 1.0 GHz. This industrial-grade device integrates multiple processing subsystems and industrial communications peripherals to address demanding embedded and industrial control applications.

Built for use cases requiring mixed real-time and application processing, the AM6422 combines high-level application cores with integrated Cortex‑R5F and Cortex‑M4F subsystems, industrial Ethernet engines (PRU_ICSSG), comprehensive security, and flexible memory interfaces to simplify system design and enable deterministic networked control.

Key Features

• CPU Subsystem  Dual Arm® Cortex®‑A53 64‑bit cluster at up to 1.0 GHz with 256 KB L2 shared cache; each core includes 32 KB L1 ICache and 32 KB L1 DCache with ECC/parity protections.
• Real-time and MCU Subsystems  Integrated Arm® Cortex®‑R5F (up to two dual‑core subsystems at up to 800 MHz) for real‑time processing and a single Arm® Cortex®‑M4F MCU up to 400 MHz for control tasks, each with dedicated caches and TCM/SRAM with ECC.
• Industrial Communication Engines (PRU_ICSSG)  Two gigabit Industrial Communication Subsystems (PRU_ICSSG) supporting Profinet IRT/RT, EtherNet/IP, EtherCAT, TSN and backward compatibility with 10/100 Mb PRU_ICSS; each PRU_ICSSG includes dual Ethernet ports and multiple PRU RISC cores for offloaded deterministic processing.
• Memory Subsystem  DDR subsystem supports LPDDR4 and DDR4 with a 16‑bit data bus and inline ECC, plus up to 2 MB on‑chip RAM (OCSRAM) with SECDED ECC configurable in banks for partitioning.
• Peripherals and Interfaces  Integrated interfaces include 2× 10/100 Mbps Ethernet, 2× 10/100/1000 Mbps Ethernet, USB 3.1 (1), CANbus, and a General‑Purpose Memory Controller (GPMC).
• Security and Boot  Hardware‑enforced root‑of‑trust and secure boot, Arm TrustZone® based TEE, cryptographic accelerators and primitives including AES, 3DES, RSA, ECC, SHA‑1/2, PKA, DRBG and a hardware random number generator.
• System Services and DMA  Integrated Device Management Security Controller (DMSC‑L) for system control and services; Data Movement Subsystem with Block Copy DMA, Packet DMA, Secure Proxy and Ring Accelerator.

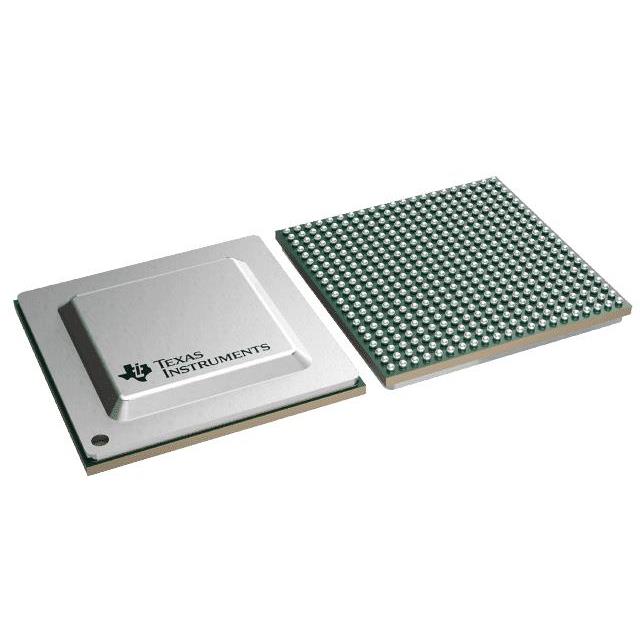

• Package and Environmental  441‑FCBGA package (17.2 × 17.2 mm), surface‑mount; industrial operating temperature −40 °C to 105 °C. RoHS compliant.

Typical Applications

• Industrial Ethernet Controllers  Use the on‑chip PRU_ICSSG engines and dual gigabit Ethernet ports to implement Profinet, EtherCAT, EtherNet/IP and TSN compliant controllers and switches.
• Industrial Gateways and Edge Compute  Combine Cortex‑A53 application processing with secure boot and cryptography to build secure protocol translation, data aggregation and edge analytics devices.
• Motion and Motor Control Systems  Leverage deterministic PRU cores, encoder interfaces and capture modules for tight control loops and high‑precision position feedback in automation and robotics.
• Real‑Time Control and Safety Systems  Dedicated Cortex‑R5F subsystems provide isolated real‑time processing for safety‑critical control tasks alongside application processors.

Unique Advantages

• Highly integrated processing mix: Dual Cortex‑A53 application cores plus Cortex‑R5F real‑time cores, Cortex‑M4F MCU and PRU engines reduce external component count and simplify partitioning of application and control tasks.
• Deterministic industrial networking: PRU_ICSSG subsystems with dedicated Ethernet ports and IEP time stamping support deterministic protocols such as Profinet and EtherCAT without external offload devices.
• Robust memory architecture: Support for LPDDR4/DDR4 with inline ECC and up to 2 MB of on‑chip RAM with SECDED ECC enables reliable data integrity for critical applications.
• Comprehensive on‑chip security: Secure boot, hardware root‑of‑trust, TrustZone‑based TEE and a wide set of cryptographic primitives help implement secure provisioning, firmware integrity and encrypted communications.
• Industrial temperature and packaging: 441‑FCBGA in a 17.2 × 17.2 mm footprint with −40 °C to 105 °C rating supports deployment in industrial environments.

Why Choose AM6422BSDFHAALVR?

The AM6422BSDFHAALVR positions itself as a capable, industrial‑grade SoC for embedded designs requiring a balance of application performance, real‑time determinism and on‑chip security. Its combination of dual Cortex‑A53 cores, dedicated real‑time and MCU subsystems, programmable PRU industrial Ethernet engines, and robust memory/security features make it well suited for industrial networking, gateways, motion control and secure edge applications.

Designs that need integrated deterministic networking, partitionable on‑chip memory, and hardware‑enforced security can leverage this device to reduce BOM complexity and consolidate multiple system functions onto a single processor package.

Request a quote or submit an inquiry to obtain pricing, availability and more information for the AM6422BSDFHAALVR.
