AM6441BSFFHAALV

The AM6441BSFFHAALV is a Sitara AM64x-series microprocessor IC built around a single 64‑bit ARM® Cortex®‑A53 application core running at up to 1 GHz. It targets industrial embedded applications that require integrated communications, real‑time offloads and hardware security.

Designed for industrial environments, the device combines the Cortex‑A53 application core with on‑chip real‑time and microcontroller subsystems, broad memory support and industrial‑grade packaging and temperature range to simplify system designs that demand performance, reliability and security.

Key Features

• Core Single ARM® Cortex®‑A53 64‑bit application core up to 1 GHz, with additional on‑chip processing subsystems listed as co‑processors including ARM® Cortex®‑M4F, ARM® Cortex®‑R5F, NEON™ SIMD and PRU‑ICSS for offload and real‑time tasks.
• Memory Support for DDR4 and LPDDR4 memory types plus on‑chip RAM up to 2 MB with SECDED ECC. DDR subsystem supports inline ECC and a general‑purpose memory controller is included for parallel memory interfaces.
• Industrial communication subsystems Two gigabit Industrial Communication Subsystems (PRU_ICSSG) with multi‑protocol support; each PRU_ICSSG provides two Ethernet ports and hardware assists for time stamping and deterministic networking (TSN, Profinet, EtherNet/IP, EtherCAT and more).
• Interfaces Multiple Ethernet ports (10/100 Mbps ×2 and 10/100/1000 Mbps ×2), USB 3.1 (1), CANbus and legacy serial support (16550‑compatible UART), enabling broad connectivity for embedded systems.
• Security Comprehensive security features including hardware‑enforced Root‑of‑Trust and Secure Boot, Arm TrustZone® based Trusted Execution Environment, AES, 3DES, RSA, PKA, SHA‑1/2, MD5, DRBG, ECC and a dedicated Random Number Generator.
• SoC services Integrated system services such as Device Management Security Controller (DMSC‑L) and Data Movement Subsystem (BCDMA, PKTDMA, SEC_PROXY, RINGACC) to simplify boot, power/clocks, security and DMA operations.

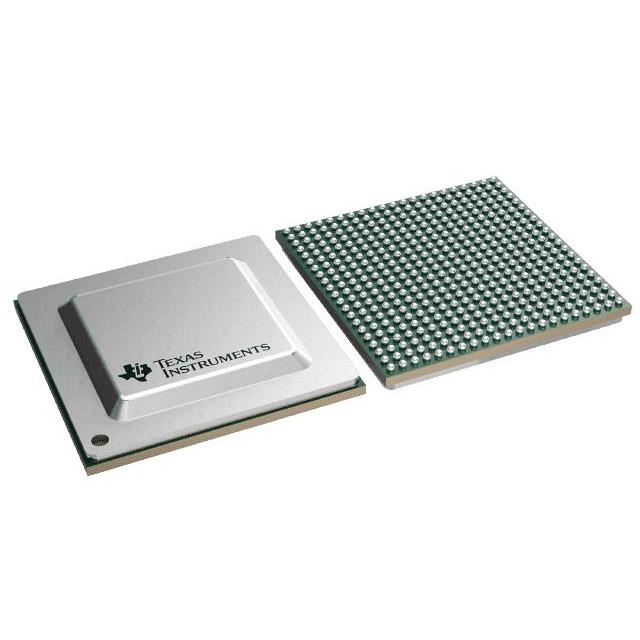

• Package & operating range 441‑FCBGA surface‑mount package (17.2 × 17.2 mm) and industrial temperature rating from −40°C to 105°C for deployment in harsh environments.

Typical Applications

• Industrial Ethernet controllers and gateways Use the PRU_ICSSG subsystems and multiple Ethernet ports to implement deterministic protocols and high‑performance industrial networking.
• Real‑time embedded control Leverage the Cortex‑R5F and Cortex‑M4F subsystems for motor control, encoder interfaces and other deterministic control tasks while the Cortex‑A53 handles higher‑level application processing.
• Secure edge devices and gateways Hardware secure boot, TrustZone and integrated cryptography enable secure device identity, encrypted communications and secure storage for edge deployments.

Unique Advantages

• Heterogeneous processing in one device: Consolidates application processing, real‑time control and microcontroller tasks on a single SoC to reduce BOM and simplify software partitioning.
• Built‑in industrial communications: PRU_ICSSG subsystems with multi‑protocol support and gigabit interfaces reduce the need for external protocol offloads and specialized network controllers.
• Layered hardware security: Root‑of‑Trust, Secure Boot, TrustZone and multiple crypto engines deliver a comprehensive hardware security foundation for protected systems.
• Memory reliability and flexibility: On‑chip RAM with SECDED ECC plus DDR4/LPDDR4 support with inline ECC improves system reliability and data integrity.
• Industrial‑ready packaging and thermal range: 441‑FCBGA package and −40°C to 105°C operating range support deployment in industrial environments.

Why Choose AM6441BSFFHAALV?

The AM6441BSFFHAALV positions itself as a highly integrated solution for industrial embedded designs that require a balance of application performance, real‑time control and strong hardware security. Its combination of a 64‑bit ARM Cortex‑A53 application core, dedicated real‑time and microcontroller subsystems, extensive industrial networking capabilities and ECC‑protected memory options make it suitable for complex automation, secure edge and control applications.

For designs where consolidation, deterministic communications and layered security reduce system complexity and lower BOM, this Sitara AM64x device provides a robust, industrial‑grade foundation with features aimed at long‑term, reliable deployments.

Request a quote or submit an inquiry to receive pricing, availability and technical support for AM6441BSFFHAALV.
