AM6441BSEGHAALVR

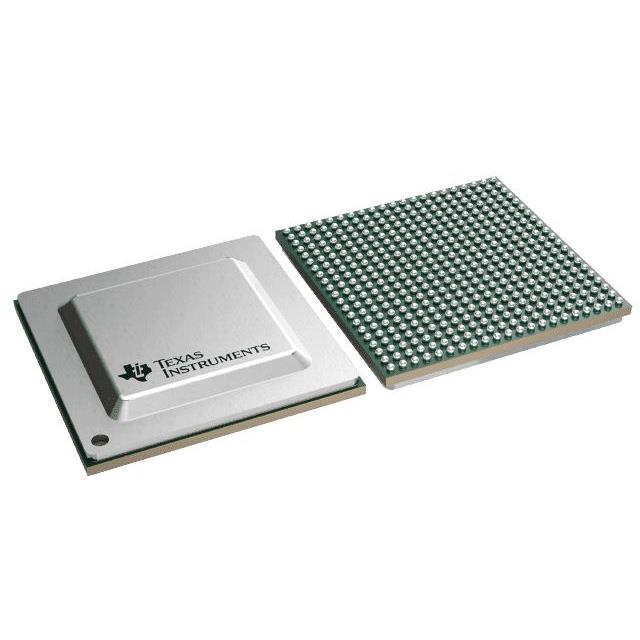

The AM6441BSEGHAALVR is a Sitara AM64x series microprocessor device in a 441-FCBGA (17.2 × 17.2 mm) package. It delivers a 64-bit ARM processor core operating up to 1 GHz and is targeted at industrial embedded applications requiring integrated communications, real-time subsystems, and advanced security capabilities.

Designed for industrial-grade operation (–40 °C to 105 °C) and RoHS compliant, the device combines a 64-bit application processor with integrated MCU subsystems, multiple Ethernet interfaces, USB 3.1 connectivity, and a broad security feature set to support secure, connected embedded designs.

Key Features

• Core processor — ARM® Cortex®-A53 64-bit core running up to 1 GHz with a single-core configuration as specified for this part.
• Integrated MCU and real-time co-processors — On-chip ARM® Cortex®-M4F and ARM® Cortex®-R5F subsystems plus PRU-ICSS real-time engines for deterministic control and low-latency I/O.
• Memory subsystem — Support for DDR4 and LPDDR4 memory controllers; on-chip RAM options described for the AM64x family including up to 2 MB of OCSRAM with SECDED ECC (series-level detail).
• Industrial communications — Multiple Ethernet interfaces: two 10/100 Mbps and two 10/100/1000 Mbps ports as specified, and PRU_ICSSG support for industrial protocols and TSN (series-level capabilities).
• High-speed peripheral I/O — USB 3.1 host support (1 port) and additional interfaces including CANbus for flexible connectivity.
• Security features — Hardware and software-oriented security including 3DES, AES, ARM TrustZone, cryptography engines (PKA, ECC, RSA), secure boot, DRBG, SHA-1/2, MD5, and a random number generator.
• Package and mounting — 441-FCBGA (17.2 × 17.2 mm) surface-mount package suitable for compact board implementations.
• Industrial grade operation — Specified operating temperature range of –40 °C to 105 °C for durable field deployment.
• Graphics and multimedia — Graphics acceleration is not provided for this device (as specified).
• Standards and compliance — RoHS compliant.

Typical Applications

• Industrial Automation — Use in automation controllers and gateways where PRU_ICSSG support for Profinet, EtherCAT, EtherNet/IP and TSN enables deterministic industrial networking.
• Real-Time Control Systems — Integration of ARM® Cortex®-R5F and PRU subsystems provides hardware for motion control, encoder interfacing, and low-latency I/O tasks.
• Secure Edge Compute — On-device security features and secure boot support edge applications that require protected firmware and cryptographic services.
• Embedded Networking Gateways — Multiple Ethernet ports and USB 3.1 enable high-throughput data aggregation and protocol bridging in industrial and embedded networking equipment.

Unique Advantages

• Integrated communications and real-time engines — PRU-ICSS and multiple Ethernet interfaces simplify implementation of industrial protocols and deterministic networking without added external processors.
• Comprehensive security suite — On-chip cryptographic accelerators, secure boot, and TrustZone support help protect device integrity and enable secure deployment.
• Flexible memory support — DDR4 and LPDDR4 controller support and on-chip RAM options allow designers to scale memory for application requirements.
• Industrial temperature rating — –40 °C to 105 °C operation supports deployment in harsh environments typical of industrial systems.
• Compact FCBGA package — 441-FCBGA (17.2 × 17.2 mm) packaging provides a small footprint while delivering extensive peripheral integration.

Why Choose AM6441BSEGHAALVR?

The AM6441BSEGHAALVR brings a balanced combination of 64-bit application processing, integrated real-time subsystems, and industrial-grade communications and security features. Its configuration in the Sitara AM64x family targets embedded designs that need deterministic I/O, networked interfaces, and on-device protection without extensive external components.

This device suits developers and system architects building industrial controllers, secure edge gateways, and real-time embedded systems that require scalable memory options, multiple Ethernet ports, and a compact surface-mount package backed by Sitara platform capabilities.

Request a quote or submit an inquiry to receive pricing, availability, and support information for AM6441BSEGHAALVR.
