AM6441BSEFHAALV

The AM6441BSEFHAALV is a Sitara AM64x family microprocessor IC from Texas Instruments featuring a multi-core ARM® architecture. It integrates heterogeneous cores—ARM® Cortex®-A53, ARM® Cortex®-M5F and ARM® Cortex®-R5F—offering a combination of application processing and real-time subsystems for industrial embedded designs.

Designed for industrial markets, the device delivers multi-core performance (6 core, 64-bit) with extensive industrial communication, memory and security features to support deterministic control, industrial Ethernet and other embedded workloads while operating across an industrial temperature range.

Key Features

• Core Architecture — ARM® Cortex®-A53, ARM® Cortex®-M5F and ARM® Cortex®-R5F cores combined in a 6‑core, 64‑bit configuration with up to 1 GHz performance for application processing and dedicated real‑time cores for deterministic tasks.
• Industrial Communication Subsystems — Two gigabit Industrial Communication Subsystems (PRU_ICSSG) supporting protocols such as Profinet IRT, Profinet RT, EtherNet/IP, EtherCAT and Time‑Sensitive Networking (TSN); each PRU_ICSSG includes dual Ethernet ports and multiple PRU RISC cores for offloaded real‑time packet processing.
• Memory and Storage — Supports DDR4 and LPDDR4 memory types with a DDR subsystem up to 16‑bit data bus and inline ECC; on‑chip RAM up to 2 MB with SECDED ECC for robust embedded memory partitioning and fault detection.
• Connectivity — Multiple Ethernet interfaces (2× 10/100 Mbps and 2× 10/100/1000 Mbps), USB 3.1 (1), and CANbus for a broad set of wired connectivity options.
• Real‑time and I/O Peripherals — PRU_ICSSG includes time‑stamping IEPs, multiple Sigma‑Delta filters, multi‑protocol position encoder interfaces and an Enhanced Capture Module for precise I/O and motion/encoder interfacing.
• Security and Integrity — Hardware features for secure boot and cryptography with supported algorithms (3DES, AES, DES, MD5, SHA‑1/2), Trusted Execution Environment and extensive isolation controls; memory and caches protected with SECDED ECC and parity where specified.

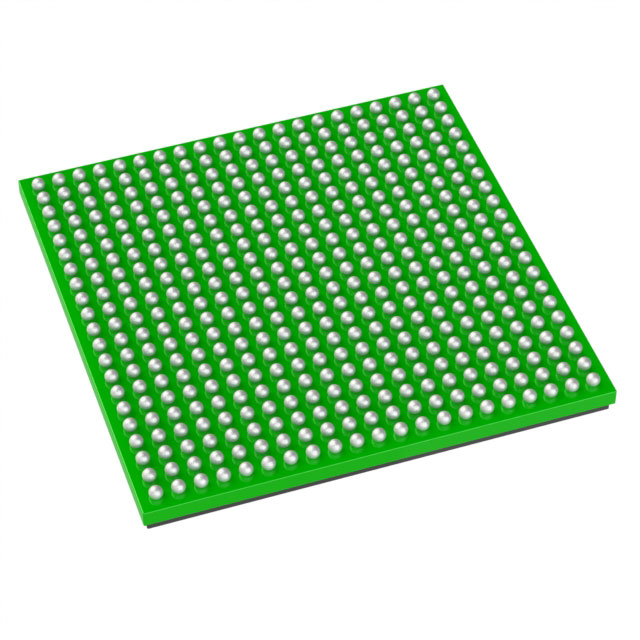

• Package and Environmental — Supplied in a 441‑FCBGA (17.2 × 17.2 mm) surface‑mount package and specified for industrial operation from −40 °C to 105 °C; RoHS compliant.

Typical Applications

• Industrial Automation and Control — Integrated PRU_ICSSG and real‑time cores support industrial Ethernet protocols and deterministic packet handling for factory automation and control systems.
• Industrial Gateways and Protocol Translators — Multi‑port Ethernet, TSN support and packet offload capabilities enable protocol bridging and edge gateway functions in industrial networks.
• Motion and Encoder Interfaces — On‑chip position encoder interfaces, Sigma‑Delta filters and capture modules provide the peripheral set needed for encoder interfacing and motion subsystem tasks.

Unique Advantages

• Heterogeneous multi‑core integration: Combines application (Cortex‑A53) and real‑time (Cortex‑R5F, Cortex‑M5F) cores in one device to consolidate system functions and reduce BOM complexity.
• Industrial communication built in: PRU_ICSSG subsystems with dual Ethernet ports and protocol support remove the need for external protocol processors in many designs.
• Robust memory integrity: On‑chip RAM with SECDED ECC and DDR inline ECC improve system reliability in mission‑critical industrial environments.
• Comprehensive security foundation: Hardware secure boot, cryptographic accelerators and TEE support help protect IP and enable secure device deployment.
• Wide operating temperature and industrial grade: Specified for −40 °C to 105 °C operation and packaged in a 441‑FCBGA for surface‑mount assembly in industrial products.

Why Choose AM6441BSEFHAALV?

The AM6441BSEFHAALV positions itself as an integrated, industrial‑grade microprocessor suited to embedded applications that require a blend of application processing and deterministic real‑time control. Its multi‑core ARM architecture, PRU_ICSSG industrial communication subsystems and ECC‑protected memory enable consolidated designs with built‑in support for industrial Ethernet and secure boot capabilities.

This device is appropriate for development teams building industrial gateways, networked controllers and encoder‑driven motion systems where on‑chip real‑time engines, protocol support and memory integrity provide long‑term scalability and robustness in the field.

Request a quote or submit an inquiry to discuss pricing, availability and how the AM6441BSEFHAALV can fit into your next industrial embedded design.
