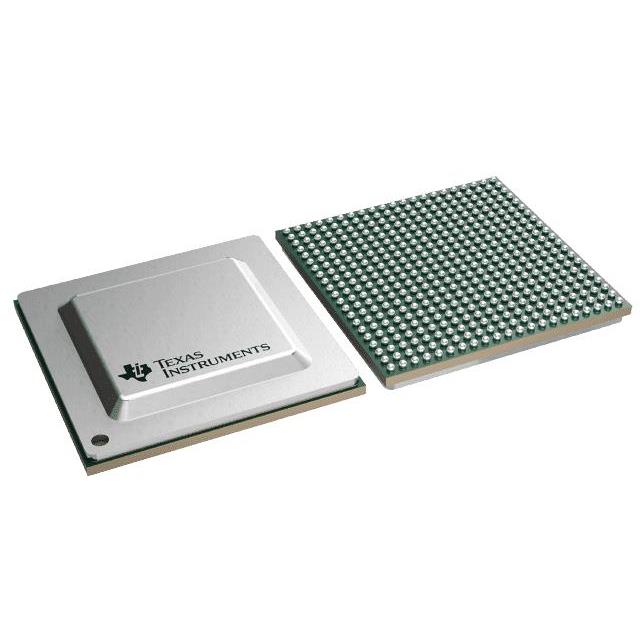

AM6442BSDGHAALV

The AM6442BSDGHAALV is a Sitara™ microprocessor IC featuring a multicore Arm® architecture, designed for industrial embedded systems. It integrates ARM® Cortex®-A53 application processors alongside real-time and microcontroller-class cores to deliver a combination of application performance, real-time control and secure boot capabilities.

With a 1 GHz Cortex‑A53 cluster, multiple Cortex‑R5F/Cortex‑M cores, integrated industrial communication subsystems (PRU_ICSSG), and a broad set of security and memory features, this device targets industrial automation, real‑time networking, and other embedded designs that require performance plus deterministic I/O and security.

Key Features

• Core Architecture Dual 64‑bit Arm® Cortex®‑A53 cluster at up to 1.0 GHz, combined with up to two dual‑core Arm® Cortex®‑R5F subsystems and a single Cortex®‑M4F core for real‑time and microcontroller tasks.
• Multicore Real‑Time Subsystems 2× PRU_ICSSG industrial communication subsystems with multiple RISC cores, supporting deterministic I/O and industrial Ethernet protocols including TSN, Profinet, EtherCAT and more (as implemented in PRU_ICSSG).
• Memory Subsystem Supports DDR4 and LPDDR4 memory types with a 16‑bit data bus and inline ECC; up to 2 MB on‑chip RAM with SECDED ECC for partitioning and reliability.
• Connectivity Multiple Ethernet interfaces (2× 10/100 Mbps and 2× 10/100/1000 Mbps), USB 3.1 (1 port), and CANbus for broad I/O and industrial networking options.
• Security Hardware security and cryptography features including 3DES, AES, ARM TrustZone®, secure boot, RSA, ECC, SHA‑1/2, MD5, DRBG and a random number generator for secure boot and trusted execution environments.
• Industrial‑Grade Reliability Package: 441‑FCBGA (17.2 × 17.2 mm) surface mount. Operating temperature range: −40 °C to 105 °C. Extensive ECC/SECDED protection across memories.
• SoC Services and Data Movement Includes device management and data movement subsystems (DMSC‑L, BCDMA, PKTDMA, SEC_PROXY, RINGACC) to centralize boot, security and optimized data transfer.

Typical Applications

• Industrial Automation — Real‑time control, motion and safety‑adjacent functions using Cortex‑R5F cores and PRU_ICSSG for deterministic I/O and industrial Ethernet.
• Industrial Networking & Gateways — Protocol bridging and time‑sensitive networking using integrated gigabit and 10/100 Ethernet ports together with PRU‑based industrial subsystems.
• Secure Embedded Systems — Systems requiring hardware‑enforced secure boot, cryptographic accelerators and TrustZone®‑based trusted execution.
• High‑Performance Embedded Compute — Application processing on dual Cortex‑A53 cores at up to 1.0 GHz with shared L2 cache and ECC‑protected caches and memories.

Unique Advantages

• Highly integrated multicore platform: Combines application, real‑time and microcontroller cores on a single device to reduce BOM and simplify partitioning of tasks across cores.
• Deterministic industrial I/O: PRU_ICSSG subsystems and Industrial Ethernet peripherals (IEPs) provide hardware resources for time stamping, TSN and low‑latency protocol handling.
• Robust memory and data integrity: On‑chip RAM with SECDED ECC, inline DDR ECC and ECC/Parity on caches and memories enhance system reliability in industrial environments.
• Comprehensive security: Hardware root‑of‑trust, secure boot, TrustZone® support and multiple crypto accelerators enable secure system designs and protected firmware deployment.
• Industrial temperature and package: Industrial grade operation from −40 °C to 105 °C in a compact 441‑FCBGA (17.2 × 17.2 mm) package suitable for surface‑mount assembly.

Why Choose AM6442BSDGHAALV?

The AM6442BSDGHAALV positions itself as a versatile Sitara™ multicore processor for industrial embedded applications that demand a mix of application processing, deterministic real‑time control and strong security. Its combination of Cortex‑A53 application cores, Cortex‑R5F real‑time cores, PRU‑based industrial communication engines and extensive memory/error‑correction features provide a balanced platform for complex embedded designs.

This device is particularly well suited to engineers building industrial gateways, protocol converters, real‑time controllers and secure embedded systems that require sustained performance, robust data integrity and integrated hardware security within an industrial temperature range.

Request a quote or submit a pricing inquiry to evaluate the AM6442BSDGHAALV for your next industrial embedded design and to discuss volume availability and lead times.
