AM6411BSCGHAALV

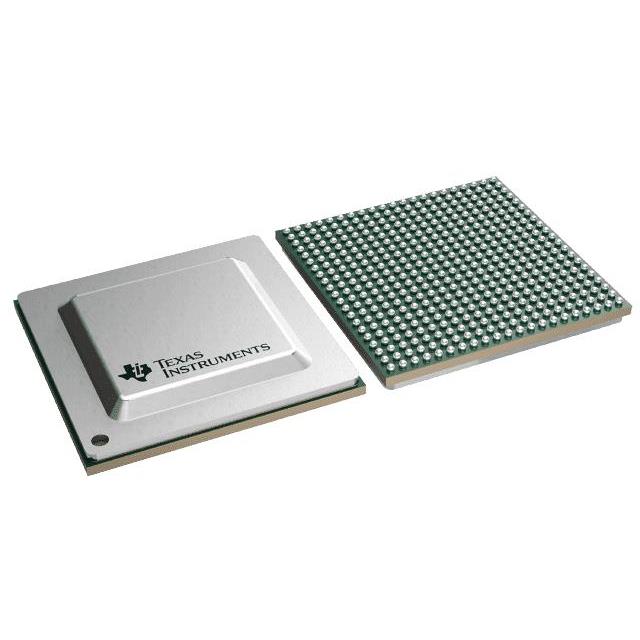

The AM6411BSCGHAALV is a Sitara™ microprocessor IC featuring an ARM® Cortex®-A53 64-bit core running at 1 GHz in a 441-FCBGA (17.2 × 17.2 mm) surface-mount package. It is specified for industrial-grade applications and targets embedded designs that require deterministic industrial communications, integrated security, and a compact package.

Built for systems that combine application processing with real-time and industrial networking subsystems, this device brings processor performance together with extensive peripheral and security capabilities to simplify system integration.

Key Features

• Core — ARM® Cortex®-A53 64-bit core at 1 GHz (single core as specified) providing application-level compute in a compact footprint.
• Co‑processors and Real‑time Engines — Integrated ARM® Cortex®-M4F and ARM® Cortex®-R5F subsystems, NEON™ SIMD multimedia support, and PRU-ICSS real-time subsystems for deterministic I/O and protocol handling.
• Memory Support — DDR4 and LPDDR4 memory controller support for high-bandwidth external memory configurations.
• Industrial Ethernet — Multiple Ethernet interfaces: two 10/100 Mbps ports and two 10/100/1000 Mbps ports, with PRU_ICSSG-based support for industrial protocols and time synchronization.
• High‑speed I/O — USB 3.1 host/device support (1 port) plus additional interfaces including CANbus for broad connectivity.
• Security Suite — Hardware features including 3DES, AES, ARM TrustZone, cryptography accelerators (PKA, ECC, RSA), DRBG, SHA-1/2, MD5, secure boot and a Random Number Generator for secure system designs.
• System Services — On‑chip device management and data movement subsystems including a centralized system controller (DMSC-L), DMA engines and secure proxy support to streamline system-level functions.
• Package and Reliability — 441-FCBGA (17.2 × 17.2 mm) surface-mount package rated for industrial operation from −40 °C to 105 °C; RoHS compliant.

Typical Applications

• Industrial Automation & Control — Use the processor and PRU_ICSSG subsystems to implement Profinet, EtherNet/IP, EtherCAT and Time-Sensitive Networking (TSN) for factory automation and motion control systems.
• Edge Gateways & Protocol Bridges — Multi‑port Ethernet and USB 3.1 enable high-throughput edge gateway designs and protocol conversion appliances.
• Secure Embedded Systems — Hardware secure boot and cryptographic accelerators support secure boot and protected execution for industrial IoT endpoints and secure controllers.
• Motion and Positioning Control — Integrated encoder interfaces, capture modules and PRU real-time engines facilitate motor control and precise position feedback implementations.

Unique Advantages

• Industrial-Grade Qualification — Specified operation from −40 °C to 105 °C to meet the temperature demands of industrial deployments.
• Integrated Real‑time and Application Processing — Combination of Cortex‑A53 application core with Cortex‑R5F/Cortex‑M4F and PRU subsystems reduces the need for external MCUs for real-time tasks.
• Comprehensive Security Toolbox — Built-in cryptographic engines, secure boot and TrustZone support help simplify implementation of secure device architectures.
• Flexible Memory and Interface Options — Support for DDR4 and LPDDR4 plus multiple Ethernet speeds, USB 3.1 and CANbus simplify system design across networking and compute use cases.
• Compact, Surface‑Mount FCBGA — 441-FCBGA (17.2 × 17.2 mm) package provides a dense solution for space-constrained embedded boards.
• SoC System Services — On-chip device management and DMA/subsystem accelerators streamline power, clock, boot and data-movement tasks to reduce firmware complexity.

Why Choose AM6411BSCGHAALV?

The AM6411BSCGHAALV positions application-level compute and a comprehensive set of industrial communications, security and real-time resources in a single industrial-grade package. Its 1 GHz ARM® Cortex®-A53 core combined with integrated co-processors and protocol engines enables developers to consolidate functions that would otherwise require multiple components.

Choose this device for embedded and industrial designs that require deterministic network interfaces, hardware-enforced security primitives, flexible memory support and a compact FCBGA footprint—providing a balance of performance, integration and long-term platform scalability.

Request a quote or submit an inquiry to receive pricing and availability for AM6411BSCGHAALV. Provide your project quantity and any special requirements to start the procurement process.
