DRA725LGABCRQ1

The DRA725LGABCRQ1 is an ARM® Cortex®-A15 based microprocessor from the Jacinto DRA72x family, offering a single 32-bit core running at 750 MHz. Designed for infotainment and advanced embedded applications, it integrates multimedia, graphics, and a wide range of peripheral interfaces in a 760‑pin FCBGA package.

This device targets automotive and embedded markets requiring integrated compute, multimedia handling, and broad connectivity, while providing automotive-grade qualification for deployment in demanding environments.

Key Features

• Core and Compute  Single ARM® Cortex®-A15 microprocessor core at 750 MHz with an MPU microprocessor subsystem architecture optimized for infotainment applications.
• Co‑processors and DSP  Integrated accelerators and co-processors including ARM® Cortex®-M4 IPUs, C66x DSP cores, IVA subsystem, BB2D 2D graphics accelerator (Vivante® GC320), and a PowerVR™ SGX544 3D GPU for diverse compute and media tasks.
• Memory and On‑Chip RAM  DDR3/DDR3L external memory support with EMIF capable of DDR3-1333 (667 MHz), up to 2 GB across a single chip select, plus up to 512 KB of on-chip L3 RAM.
• Video, Image and Graphics  Full‑HD video support (1920 × 1080p, 60 fps), multiple video inputs/outputs, Video Processing Engine (VPE), display controller with DMA and up to three pipelines, and HDMI/DVI encoder support.
• High‑Speed Connectivity  Rich interface set including SuperSpeed USB 3.0 (1), USB 2.0 (2), SATA, PCIe® Gen2 lanes (two 5‑Gbps lanes), and multiple MMC/SD/SDIO interfaces for storage and host connectivity.
• Network and Audio  Integrated 2‑port Gigabit Ethernet switch, multiple McASP audio ports, MIPI CSI‑2 camera interface, and extensive serial/peripheral support (I2C, UART, SPI, QSPI).
• Security  Hardware crypto accelerators, secure boot, secure storage, isolation firewalls, device identity, debug security, and software IP protection features to support secured systems.
• System and Power Management  On‑chip power, reset, and clock management with enhanced DMA and interconnects (L3/L4) for deterministic system operation.

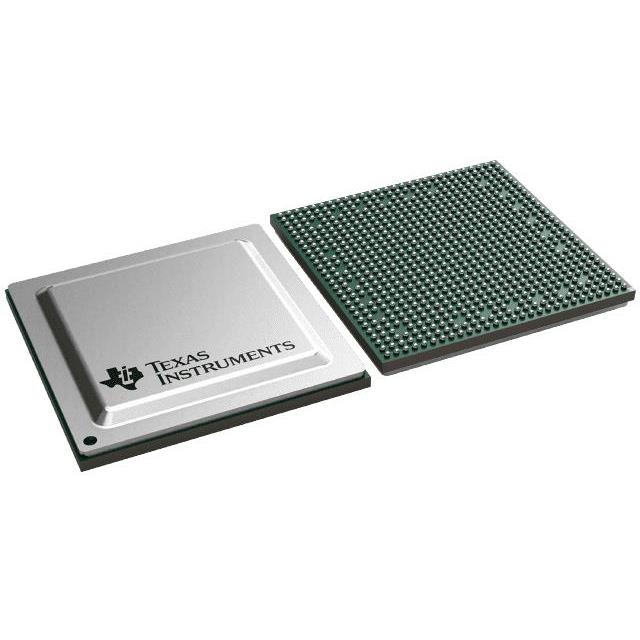

• Package and Temperature  760‑pin FCBGA package (23 × 23 mm, 0.8 mm pitch) designed for surface mount assembly and specified operating temperature range of −40°C to 125°C.
• Automotive Qualification and Compliance  Automotive grade with AEC‑Q100 qualification and RoHS compliance for automotive and other high‑reliability applications.

Typical Applications

• Human‑Machine Interface (HMI)  Drive rich, responsive in‑vehicle displays and touch interfaces using integrated graphics and display pipelines.
• Navigation and Infotainment  Support for multimedia playback, HDMI outputs, and multiple video inputs for navigation systems and rear‑seat entertainment.
• Digital Radio and Media Decoding  Decode and process AM/FM/RDS and digital radio streams with dedicated media and audio peripherals.
• ADAS and System Integration  Integrate with higher‑level automotive domains and Jacinto 6 systems using multi‑lane PCIe, Gigabit Ethernet, and camera interfaces.

Unique Advantages

• Highly integrated multimedia platform: Combines CPU, DSPs, GPU, IVA and image processing units for consolidated media and compute pipelines, reducing system BOM and design complexity.
• Automotive‑ready qualification: AEC‑Q100 qualification and −40°C to 125°C operating range support deployment in automotive environments.
• Broad connectivity: USB 3.0, SATA, PCIe, Gigabit Ethernet switch, MIPI CSI‑2, and multiple serial interfaces enable flexible I/O and subsystem integration.
• Security and system protection: Multiple hardware security features including crypto accelerators, secure boot, and isolation firewalls protect IP and device identity.
• Scalable memory and performance: DDR3/DDR3L support up to DDR3‑1333 and up to 2 GB external memory capacity with integrated L3 RAM for performance scaling.
• Designed for infotainment: Architecture and feature set explicitly targeted at infotainment applications with Full‑HD video, video pipelines, and display encoders.

Why Choose DRA725LGABCRQ1?

The DRA725LGABCRQ1 positions itself as a purpose‑built infotainment and embedded processor that combines an ARM Cortex‑A15 core with a rich set of co‑processors, media accelerators, and high‑speed interfaces. Its automotive qualification and wide operating temperature make it suitable for demanding vehicle environments where multimedia capability, security, and connectivity are required.

For developers and system designers building HMI, navigation, multimedia, or integrated automotive domains, the DRA725LGABCRQ1 offers a compact, highly integrated solution with on‑chip system management and extensive peripheral support, backed by detailed technical documentation and tools.

Request a quote for DRA725LGABCRQ1 to begin procurement or to get pricing and availability information for your next design.
