DRA726APGABCRQ1

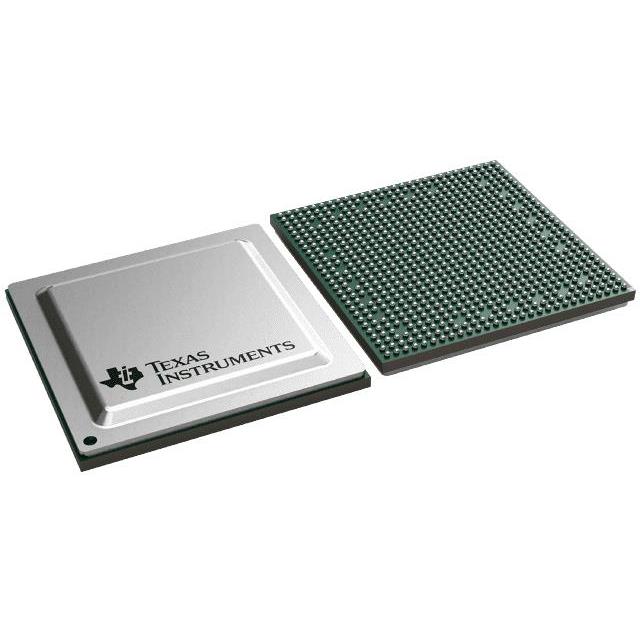

The DRA726APGABCRQ1 is an ARM® Cortex®-A15 microprocessor IC from Texas Instruments' Jacinto DRA72x family. This device is a single-core, 32‑bit processor running at 750 MHz in a 760‑pin FCBGA (23 × 23 mm) package, purpose-built for infotainment and advanced human‑machine interface (HMI) applications.

Designed for systems requiring integrated multimedia, imaging and connectivity, the DRA726 provides on‑chip accelerators and a broad set of high‑speed interfaces together with automotive‑grade qualification (AEC‑Q100) and an extended operating range of −40 °C to 125 °C.

Key Features

• Core and Performance Single ARM® Cortex®‑A15 core at 750 MHz with 32‑bit bus width and on‑chip L3 RAM (up to 512 KB documented for the series).
• Co‑processors and Accelerators Integrated processing subsystems in the DRA72x series including ARM® Cortex®‑M4 IPUs, C66x floating‑point VLIW DSP cores, BB2D 2D accelerator, IVA video/audio subsystem and a PowerVR™ SGX544 3D GPU for image, video and graphics workloads.
• Memory and Display DDR3/DDR3L external memory controller (supports up to DDR3‑1333 and up to 2 GB across a single chip select). Display controller with DMA, up to three pipelines, HDMI encoder compliant with HDMI 1.4a/DVI 1.0 and support for multiple video inputs/outputs including a VIP module.
• Connectivity and I/O Multiple high‑speed interfaces including USB 3.0 (SuperSpeed) and USB 2.0, SATA, PCIe lanes, Gigabit Ethernet switch (two ports), MIPI CSI‑2, multiple UART/I2C/SPI/QSPI/MMC/SDIO, CAN 2.0B and HDQ/1‑Wire® support.
• Storage and Multimedia Support for SATA, SD/MMC/SDIO and high‑speed peripheral interfaces to enable local storage and multimedia playback/recording.
• Security and System Reliability Hardware cryptography accelerators, device identity, isolation firewalls, secure boot, secure storage, debug security and software IP protection as documented for the series.
• Package and Temperature 760‑pin FCBGA (23 × 23 mm, 0.8 mm pitch) surface‑mount package with an operating temperature range of −40 °C to 125 °C and AEC‑Q100 qualification for automotive applications.

Typical Applications

• Infotainment and HMI: Processor and multimedia acceleration for in‑vehicle displays, user interfaces and multimedia playback supporting Full‑HD content and multiple pipelines.
• Navigation Systems: Compute and display engine for navigation stacks with multiple video inputs and high‑speed storage and connectivity.
• In‑vehicle Entertainment: Rear‑seat entertainment and multimedia playback leveraging video inputs/outputs, GPU acceleration and high‑speed USB/SATA interfaces.
• Digital and Analog Radio: Platform support for radio decoding and audio processing using integrated DSP and audio serial ports.
• ADAS Integration: Application in architectures integrating Jacinto families and ADAS functions where secure boot, hardware crypto and robust connectivity are required.

Unique Advantages

• Highly integrated multimedia platform: On‑chip video, graphics and DSP subsystems reduce the need for multiple discrete processors and simplify system partitioning.
• Broad connectivity set: Native support for USB 3.0, USB 2.0, SATA, PCIe, Gigabit Ethernet, MIPI CSI‑2 and multiple peripheral buses streamlines BOM and system design.
• Automotive‑grade qualification and extended temperature: AEC‑Q100 qualification and −40 °C to 125 °C operating range enable deployment in automotive environments.
• Security features for robust system protection: Hardware cryptography, secure boot, secure storage and isolation firewalls provide a secure foundation for IP and data protection.
• Compact, production‑ready package: 760‑pin FCBGA (23 × 23 mm) provides a dense integration point for high‑I/O systems while supporting surface‑mount assembly.

Why Choose DRA726APGABCRQ1?

The DRA726APGABCRQ1 combines a 750 MHz ARM® Cortex®‑A15 core with a rich set of multimedia accelerators, DSPs and high‑speed interfaces to address infotainment, HMI and other multimedia‑centric embedded applications. Its automotive qualification (AEC‑Q100), extended temperature range and comprehensive security feature set make it suitable for production automotive systems and other demanding environments.

As part of the Jacinto DRA72x family from Texas Instruments, this device is supported by technical documentation and product resources to help streamline development of integrated multimedia and connectivity solutions, reducing system complexity while preserving design flexibility.

Request a quote or submit a pricing inquiry today to check availability and get detailed ordering information for the DRA726APGABCRQ1.
