DRA726APGABCQ1

The DRA726APGABCQ1 is an ARM® Cortex®-A15-based microprocessor from the Jacinto DRA72x series, featuring a single 32-bit core running at 750 MHz. It is architected for infotainment-class applications and integrates multimedia, graphics and real-time processing elements suitable for advanced human-machine interfaces, navigation and in‑vehicle entertainment systems.

With substantial on-chip subsystems and a broad set of peripherals, the device emphasizes system integration, multimedia capability and hardware security while meeting automotive-grade qualification requirements.

Key Features

• Core and Performance ARM® Cortex®-A15 microprocessor, single 32-bit core at 750 MHz; architecture targeted to infotainment applications.
• Co-processors and Accelerators Integrated co-processors including ARM® Cortex®-M4 IPUs, C66x DSP cores, BB2D 2D accelerator, IVA subsystems and a single-core PowerVR™ SGX544 3D GPU for graphics and video processing.
• Memory Subsystem On-chip L3 RAM (up to 512 KB) with DDR3/DDR3L external memory controller (EMIF) support for system memory expansion.
• Video and Display Full-HD video support (1920 × 1080p, 60 fps), display controller with DMA and up to three pipelines, HDMI encoder compliant with HDMI 1.4a and DVI 1.0.
• Connectivity and I/O Rich peripheral set including SuperSpeed USB 3.0 dual-role, multiple USB 2.0 ports, SATA, PCIe® revision 3.0 (two 5-Gbps lanes), MIPI CSI-2 camera interface, QSPI, MMC/SD/SDIO and up to 215 GPIOs.
• Networking Integrated 2-port Gigabit Ethernet switch with support for external ports and multiple Ethernet MACs.
• Audio and Multimedia Interfaces Multiple McASP audio ports, video input port (VIP) with support for multiplexed inputs, VPE and video processing engines for multimedia pipelines.
• Security Hardware cryptography accelerators with DMA, isolation firewalls, secure boot, secure storage and device identity features for system-level protection.
• System and Timing Enhanced DMA, general-purpose timers, real-time clock subsystem and on-chip debug capabilities for embedded development and system control.

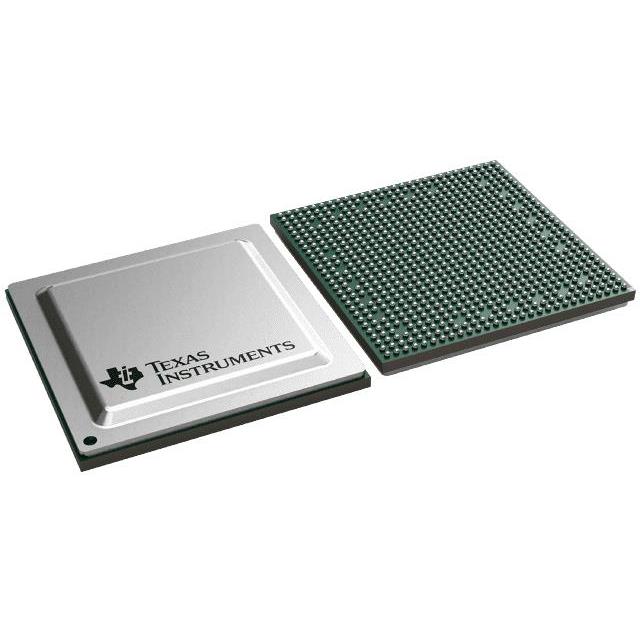

• Package and Reliability 760-pin FCBGA (23 mm × 23 mm, 0.8 mm pitch) surface-mount package, AEC‑Q100 qualification and operating temperature range of −40 °C to 125 °C.
• Regulatory RoHS compliant.

Typical Applications

• Human‑Machine Interface (HMI) Drives high-resolution displays and graphics pipelines for in‑vehicle instrument clusters and infotainment touchscreens.
• Navigation Systems Supports map rendering, multimedia overlays and audio/video playback in automotive navigation units.
• Rear‑Seat Entertainment Provides Full‑HD video processing, HDMI output and multi-stream multimedia support for passenger entertainment systems.
• Infotainment and Multimedia Platforms Integrates audio, video, camera inputs and network interfaces for centralized vehicle media and connectivity solutions.

Unique Advantages

• Highly integrated multimedia subsystem: On‑chip video engines, 2D/3D graphics accelerators and IVA/DSP resources reduce external component count for infotainment designs.
• Broad connectivity set: USB 3.0, USB 2.0, SATA, PCIe, Gigabit Ethernet and multiple serial interfaces enable flexible board-level integration and peripheral expansion.
• Automotive-grade qualification: AEC‑Q100 qualification and −40 °C to 125 °C operating range align the device to automotive environmental requirements.
• Hardware security building blocks: Cryptography accelerators, secure boot, secure storage and isolation firewalls support system-level protection and device identity.
• Scalable memory and I/O: DDR3/DDR3L EMIF support, on‑chip L3 RAM and up to 215 GPIOs allow diverse system memory and peripheral configurations.

Why Choose DRA726APGABCQ1?

The DRA726APGABCQ1 positions itself as a purpose-built infotainment processor combining an ARM® Cortex®-A15 core with extensive multimedia, graphics and DSP resources and a broad set of connectivity options. Its automotive-grade qualification, robust operating range and integrated security features make it suitable for embedded designs where integration, multimedia capability and reliability are priorities.

Designers targeting advanced HMI, navigation, rear-seat entertainment or centralized infotainment platforms will find the DRA726APGABCQ1 offers a compact, highly integrated foundation with the peripheral flexibility and system features needed to scale platform functionality.

Request a quote or submit a sales inquiry to obtain pricing and availability for the DRA726APGABCQ1 and to discuss integration requirements for your project.
